GYXTW Outdoor Optical Fiber Cable 250um 8mm Fiber Optic Underground
GYXTW Outdoor Optical Fiber Cable 250um 8mm Fiber Optic Underground
GYXTW Outdoor Optical Fiber Cable 250um 8mm Fiber Optic Underground
GYXTW Outdoor Optical Fiber Cable 250um 8mm Fiber Optic Underground
GYXTW Outdoor Optical Fiber Cable 250um 8mm Fiber Optic Underground
GYXTW Outdoor Optical Fiber Cable 250um 8mm Fiber Optic Underground
Specifications
Place of Origin :
CHINA
Brand Name :
SKYLYNN or OEM, ODM
Certification :
ISO, ROHS, CE
MOQ :
2KM
Packaging Details :
WOODEN DRUM
Delivery Time :
5-10 DAYS
Payment Terms :
T/T, L/C, WEST UNION
Supply Ability :
100,000 cores
Model NO. :
GYXTW
Delivery :
EXW/FOB/CIF Etc.
Country of Origin :
GUA,CN
Description

Outdoor Central Loose Tube Metalic Duct Cable GYXTW

Description

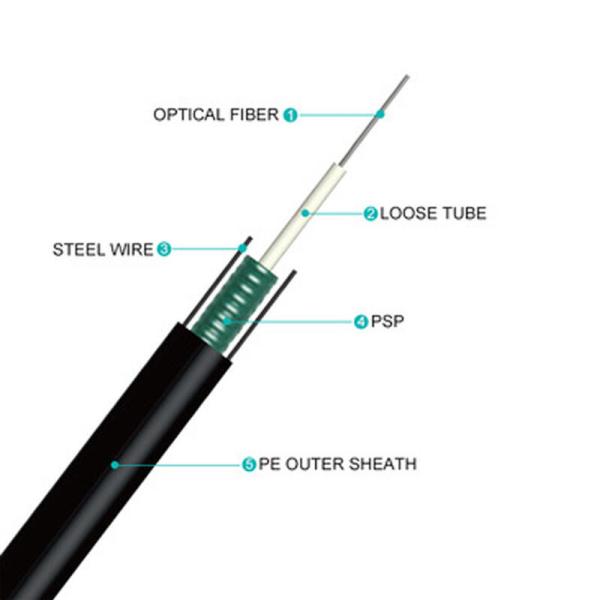

The 250μm fibers are positioned in a loose tube made of a high modulus plastic. The tubes of GYXTW are filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The fiber optic cable is completed with a polyethylene (PE) sheath.

Features

  • Choice of Fibre Type
  • Colour code of Fibre
  • High water resistance
  • High crush resistance
  • Choice Sheath Material
  • Low attenuation and dispersion
  • Good flexibility and bending performance

Appicable

Aerial, Duct

Temperature Characteristics

Operate temperature range: -40oC to +70oC

Storage temperature range: -40oC to +70oC

Fiber Parameter

G.652D G.655 50/125μm 62.5/125μm
Attuation (+20℃) @850nm ≤3.0 dB/km ≤3.0 dB/km
@1300nm ≤1.0 dB/km ≤1.0 dB/km
@1310nm ≤0.36 dB/km ≤0.40 dB/km
@1550nm ≤0.24 dB/km ≤0.23 dB/km
Wavelength (Class A) @850nm ≥500 MHz·km ≥200 MHz·km
@1300nm ≥1000 MHz·km ≥600 MHz·km
Numerical Aperture 0.200±0.015NA 0.275±0.015NA

Cable Specifications

Cable Type Fiber Count Cable Diameter mm Cable Weight kg/km Tensile Strength Long/Short Term N Crush Resistance Long/Short Term N/100mm Bending Radius Static/Dynamic mm
GYXTW-2~12 2~12 8 105 600/1500 300/1000 10D/20D
GYXTW-14~24 14~24 8 120 1000/3000 1000/3000 10D/20D
