2 4 8 12 Cores FRP Strength Central Loose Tube Outdoor Fiber Optic Cable Single
2 4 8 12 Cores FRP Strength Central Loose Tube Outdoor Fiber Optic Cable Single
2 4 8 12 Cores FRP Strength Central Loose Tube Outdoor Fiber Optic Cable Single
2 4 8 12 Cores FRP Strength Central Loose Tube Outdoor Fiber Optic Cable Single
2 4 8 12 Cores FRP Strength Central Loose Tube Outdoor Fiber Optic Cable Single
2 4 8 12 Cores FRP Strength Central Loose Tube Outdoor Fiber Optic Cable Single
2 4 8 12 Cores FRP Strength Central Loose Tube Outdoor Fiber Optic Cable Single
2 4 8 12 Cores FRP Strength Central Loose Tube Outdoor Fiber Optic Cable Single
2 4 8 12 Cores FRP Strength Central Loose Tube Outdoor Fiber Optic Cable Single
2 4 8 12 Cores FRP Strength Central Loose Tube Outdoor Fiber Optic Cable Single
Specifications
Brand Name :
JIANGHONG or OEM
Model Number :
GYFXTY
Certification :
Ce/ISO9001/Tlc
Place of Origin :
Sichuan, China
MOQ :
20,000 Meters
Price :
Can be negotiable
Supply Ability :
50000000m Per month
Delivery Time :
5-8Days
Packaging Details :
Fumigated Wooden Tray
Application :
Communication
Type :
Single-mode Fiber
Connection Structure :
Round wire
Core :
2-12cores
Fiber Model :
G652D or G657A
Sheath Material :
HDPE
Strength member :
FRP
Length :
2-4km/Drum
Description

GYFXTY Outdoor Fiber Optic Cable Single Mode 2 4 8 12 Cores

Description

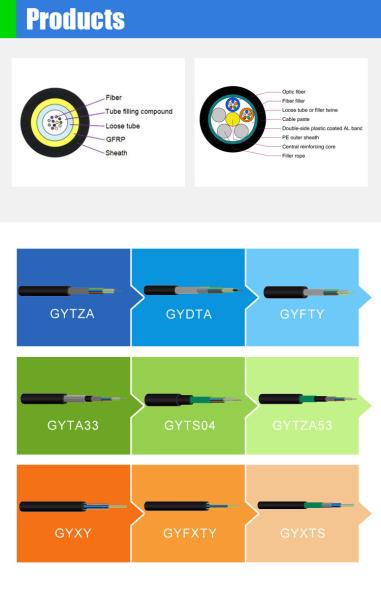

GYFXTY outdoor fiber optic cable is put the optical fiber into a loose tube made of high modulus material, and the loose tube is filled with a waterproof compound.A non-metallic reinforcing element FRP is added to the outside of the optical cable and then extruded into a HDPE sheath to form a cable.


FEATURES


Non metallic FRP strength members in the cable give it good tensile strength and electro- magnetic protection.
Small diameter, light weight and thicker wall PE protection, giving it versatile applications.

Excellent environment and mechanical performance.
Gel-filled loose tube for better protection of fiber.

APPLICATIONS

Aerial
Telecommunication,power supply and radio&television departments
Self and Non-Self Supporting

PERFORMANCE

Type Max.Attenuation Tensile strength Crush resistance Minimum Bending radius
1310nm 1550nm Short term Long term Short term Long term
GYFXTY 0.36dB/km 0.22dB/km 1500N 600N 1000N 300N 20D

Company profile

SICHUAN JIANGHONG CABLE MANUFACTURE CO.,LTD,was founded in 1992,located in Jiangyou,Sichuan P.R.China.

BY 26 years development,company has become a modernized enterprise focus on development,manufacture of different cables for radio and TV network,Video monitoring network,FTTH communication and smart home network.Based on advanced production equipment,the annual capacity has reached up to 5 minllion km/year,factory already got ISO9001:2015 quality management certificate.ISO14001:2015 environmental management certificate and OHSAS18001:2007 occasional healthy and safety management system certificate.

1. Experience:with more than 20 years production experience on cable industry . certified supplier for broadcasting and communication company in China domestic and overseas market .
2. Production line:supply different cables for radio and TV network , Video monitoring network , FTTH communication ad smart home network .
3. Certificate:Factory got ISO9001:2015 quality management certificate. ISO14001:2015 environmental management certificate and OHSAS18001:2007 occupational health and safety management system certificate

4. High-quality material:With strict supplier control and raw-material inspection .make sure the product quality stable and reasonable cost .offer high-quality fiber from well-know fiber company . offer self-inspection and 3rd-party test report.
5. Service:One stop service at customer’s convenience,offer solution based on customer's request .
6. Price:Reasonable cost based on quality guaranteed product .
