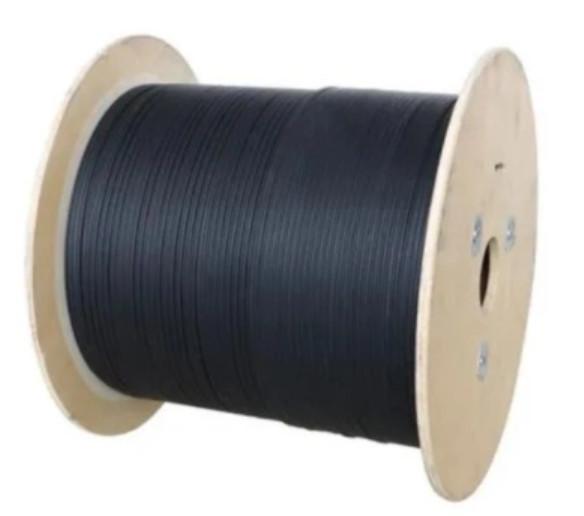

HDPE Outdoor Fiber Optic Cable FRP Strength Member 6 8 12Core Single Mode
HDPE Outdoor Fiber Optic Cable FRP Strength Member 6 8 12Core Single Mode
HDPE Outdoor Fiber Optic Cable FRP Strength Member 6 8 12Core Single Mode
HDPE Outdoor Fiber Optic Cable FRP Strength Member 6 8 12Core Single Mode
Specifications
Brand Name :
JIANGHONG or OEM
Model Number :
GYXFY-8B1.3
Certification :
Ce/ISO9001/Tlc
Place of Origin :
Sichuan, China
MOQ :
20,000 Meters
Price :
Can be negotiable
Supply Ability :
50000000m Per month
Delivery Time :
5-8Days
Packaging Details :
Fumigated Wooden Tray
Application :
Communication Telecommunication
Type :
SM Optic Fiber
Core :
2-12cores
Fiber Model :
G652D or G657A
Loose tube Material :
PBT(high quality) Loose tube
Strength member :
Phosphating steel
Sheath Material :
PE
Length :
customized service
Packing :
Wooden tray
Description

HDPE FRP Strength Member Outdoor Fiber Optic Cable 2/4/6/8/12 Core Single Mode

DESCRIPTION


The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. Over the tube, water-blocking material is applied to keep the cable watertight. Two parallel FRP are placed at the two sides. The cable is completed with a polyethylene (PE) sheath.

FEATURES


1. Low dispersion and attenuation
2. Compact structure and lightness, flexible and good bend-resistant performance

APPLICATIONS


1. Long distance and local area network communication
2. With small cable diameter, light cable weight, easily to lay

PERFORMANCE

Type Max.Attenuation Tensile test Crush test Min.Bending radius
1310nm 1550nm Short term Long term Short term Long term
GYXFY-8 0.36dB/km 0.22dB/km 1500N 600N 1000N 300N 20D
