8cores G652D Outdoor Fiber Optic Cable Single Mode 6 Core Outdoor 250μM
8cores G652D Outdoor Fiber Optic Cable Single Mode 6 Core Outdoor 250μM
8cores G652D Outdoor Fiber Optic Cable Single Mode 6 Core Outdoor 250μM
8cores G652D Outdoor Fiber Optic Cable Single Mode 6 Core Outdoor 250μM
Specifications
Brand Name :
JIANGHONG or OEM
Model Number :
GYXY-8B1.3
Certification :
Ce/ISO9001/Tlc
Place of Origin :
Sichuan, China
MOQ :
20,000 Meters
Price :
Can be negotiable
Supply Ability :
50000000m Per month
Delivery Time :
5-8Days
Packaging Details :
Fumigated Wooden Tray
Application :
Communication outdoor
Type :
Single-mode Optic Fiber
Connection Structure :
Round wire
Core :
8cores
Fiber Model :
G652D
Loose tube Material :
PBT(high quality) tube
Strength member :
Phosphating steel wire
Sheath Material :
HDPE
Length :

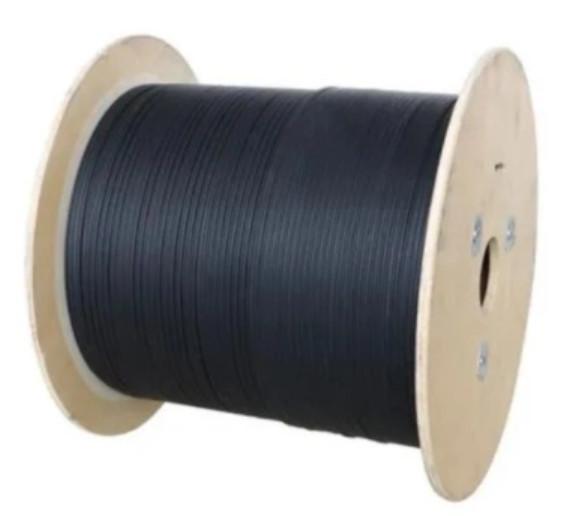

2-4km/Drum or Customized
Description

PE Single Mode Outdoor Fiber Optic Cable 2/4/6/8/12 Core Fiber Optic Cable

DESCRIPTION

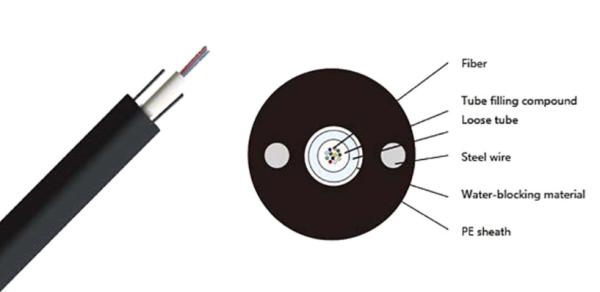

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. Over the tube, water-blocking material is applied to keep the cable watertight. Two parallel steel wires are placed at the two sides. The cable is completed with a polyethylene (PE) sheath.

FEATURES


1. Low dispersion and attenuation
2. Compact structure and lightness, flexible and good bend-resistant performance
3. With small cable diameter, light cable weight

APPLICATIONS


1. Long distance and local area network communication
2. With small cable diameter, light cable weight, easily to lay
3. Rural communication, local trunk line, CATV & computer networks system

PERFORMANCE

Type Max.Attenuation Tensile test Crush test Minimum Bending radius
1310nm 1550nm Short term Long term Short term Long term
GYXY-8 0.36dB/km 0.22dB/km 1500N 600N 1000N 300N 20D

Company profile

SICHUAN JIANGHONG CABLE MANUFACTURE CO.,LTD,was founded in 1992,located in Jiangyou,Sichuan P.R.China.

BY 26 years development,company has become a modernized enterprise focus on development,manufacture of different cables for radio and TV network,Video monitoring network,FTTH communication and smart home network.Based on advanced production equipment,the annual capacity has reached up to 5 minllion km/year,factory already got ISO9001:2015 quality management certificate.ISO14001:2015 environmental management certificate and OHSAS18001:2007 occasional healthy and safety management system certificate.

1. Experience:with more than 20 years production experience on cable industry . certified supplier for broadcasting and communication company in China domestic and overseas market .
2. Production line:supply different cables for radio and TV network , Video monitoring network , FTTH communication ad smart home network .
3. Certificate:Factory got ISO9001:2015 quality management certificate. ISO14001:2015 environmental management certificate and OHSAS18001:2007 occupational health and safety management system certificate

4. High-quality material:With strict supplier control and raw-material inspection .make sure the product quality stable and reasonable cost .offer high-quality fiber from well-know fiber company . offer self-inspection and 3rd-party test report.
5. Service:One stop service at customer’s convenience,offer solution based on customer's request .
6. Price:Reasonable cost based on quality guaranteed product .
