P8mm Football Stadium Advertising Boards , 8000cd Perimeter LED Screen
P8mm Football Stadium Advertising Boards , 8000cd Perimeter LED Screen
P8mm Football Stadium Advertising Boards , 8000cd Perimeter LED Screen
P8mm Football Stadium Advertising Boards , 8000cd Perimeter LED Screen
P8mm Football Stadium Advertising Boards , 8000cd Perimeter LED Screen
P8mm Football Stadium Advertising Boards , 8000cd Perimeter LED Screen
Specifications
Brand Name :
X-media
Model Number :
P8mm
Certification :
CE/RoHS/ISO/CB/SASO/TUV/FCC/UL
Place of Origin :
China,Shenzhen
MOQ :
5sq.m
Price :
Negotiation
Payment Terms :
T/T, MoneyGram,Cash
Supply Ability :
5,000sq.m/month
Delivery Time :
8~10 working days
Packaging Details :
Flight case, wooden case and carton box and foam package
Product name :
Stadium perimeter led display
Cabinet material :
Al-Mg
Module size :
320mmx160mm
Screen size :
Customized design
Brightness :
8000cd/sqm
Warranty :
5 years
Life time :
100,000H
MTBF :
10,000H
Description

Al-Mg Cabinet P8 High Brightness Stadium Perimeter LED Display For Football Stadium

♦ Soft top protect:

1. The angle of the cabinet is adjustable; Bracket folds up available;

2. Easy for installation and disassembly;

3. High brightness and be adjustable, meets the need of the changing requirement of customer in environments

P8mm Football Stadium Advertising Boards , 8000cd Perimeter LED Screen

♦ High Brightness with Low Luminous Decay

MP high bright led sign in stadium adopted high quality LED to make sure the brightness always in a high level, FO series can produce crystal clear images in virtually any lighting conditions, even in the sun directly.

♦ Technical specification

outdoor SMD P8
Resolution/mm 8
Pixel configuration 1R1G1B
Pixel density/pixels/m² 15625/m²
Module resolution 32x16
Module size/mm 256x128
View distance 7-500m
Single point brightness adjust Can be added
Single point color adjust Can be added
White balance brightness >8000cd/㎡
Color temperature 6500K-9500K
Horizontal view angle 160(degrees)
Vertical view angle 160(degrees)
Signal Process bit 10 or 16bit
Grey process 1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distances Internet cable:100m, multimembrane:500m, monofilm:2km
Driving mode Constant driving current
Scanning mode (1/4)
Frame rate 60Hz
Refresh frequency >3840Hz
Control mode Computer synchronous
Brightness adjusted range

Manual, automatic operation, stepless continuous adjusted

255 steps. No grey loss
Out of control point <1/10000
Working hours ≥72hours
Mean Time Between Failure >10000hours
Life time 100000hours
Life-all-white(brightness halving) 50000hours
Environment temperature range Operating temperature range: -20-45℃
Maximum power:/㎡ <950W
Average power:/㎡ <350W
Self-check technology

LED spot self-check, communications check, power check,

temperature monitor(need customization)
Remote monitoring

Remote supervision and control, record potential fault,

send out warning signs to the operators.(need customization)
Software environment WindowsNT,Windows1999,WindowsXP
Luminous point width between centres Deviation<3%
Brightness uniformity <10%
Color uniformity(chromaticity coordinate) ±0.003
Power supply request AC85-264V(50Hz-60Hz)
Contrast (1000:1)
System protection Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
Humidity(working) working:10-95%
Humidity(storing) storing:10-95%

♦ Production process

1) Incoming Inspection→2) SMD→3) Plug-in

→4) Wave Soldering→5) After Welding→6) Testing

→7) Semi Finished Aging→8) Module Assembly

→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing

P8mm Football Stadium Advertising Boards , 8000cd Perimeter LED Screen

♦ Packaging and shipping

Wooden case or flight case package are available.

Shipping by sea, air or DHL, multiple shipping ways for your choice

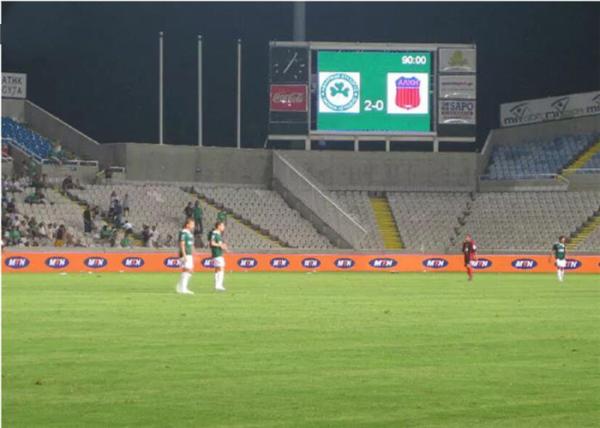

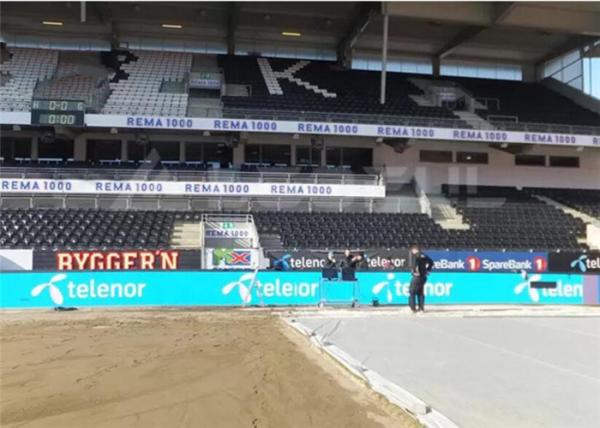

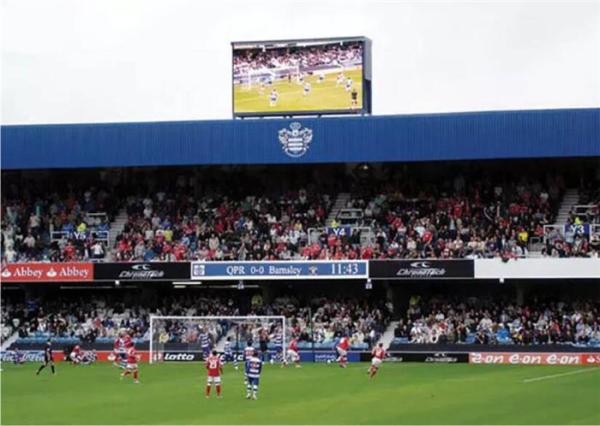

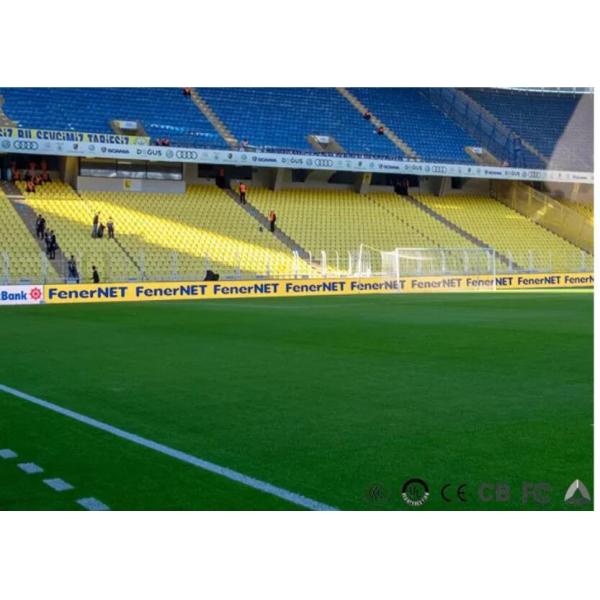

♦ Applications

P8mm Football Stadium Advertising Boards , 8000cd Perimeter LED Screen

P8mm Football Stadium Advertising Boards , 8000cd Perimeter LED Screen

P8mm Football Stadium Advertising Boards , 8000cd Perimeter LED Screen

FAQ

Q1: What's the pixel pitch for stadium perimeter LED Display Screen ?
A1: Indoor & Outdoor P6mm/P8mm/P10mm)
Q2: Where is it used for?
A2: Indoor & Outdoor rental use. Widely used for backdrop of stage events, rental / hire business, liveshow, concerts, conference room, etc.
Q3: Can it play HD video?
A3: Yes, it can realize high definition video function with Novastar / Linsn / Huidu controlling system.
Q4: What's the controlling system?
A4: Our standard controlling system for this model is Novastar. Also support other controlling system, like Linsn, etc.
Q5: How about the size of project?
A5: Please offer the size with "width by height" of project. We wil offer the suitable solution for your project size. I will appreciate it if any drawing files about installation offered.

X-Media is the professional manufacturer of outdoor, indoor LED Display Screen, LED Panel, LED Wall in Shenzhen, China with led display exported to more than 100 countries and regions, passed CE, ROHS FC Certifications.
is a good choice for your permanent install LED display needs and events rental led screen needs

Our team will be forever here to offer you full supports !!!
