7000cd Stadium Perimeter LED Display , P10 Basketball Led Screen
7000cd Stadium Perimeter LED Display , P10 Basketball Led Screen
7000cd Stadium Perimeter LED Display , P10 Basketball Led Screen
7000cd Stadium Perimeter LED Display , P10 Basketball Led Screen
7000cd Stadium Perimeter LED Display , P10 Basketball Led Screen
7000cd Stadium Perimeter LED Display , P10 Basketball Led Screen
Specifications
Brand Name :
X-media
Model Number :
P10mm
Certification :
CE/RoHS/ISO/CB/SASO/TUV/FCC/UL
Place of Origin :
China,Shenzhen
MOQ :
5sq.m
Price :
Negotiation
Payment Terms :
T/T, MoneyGram,Cash
Supply Ability :
5,000sq.m/month
Delivery Time :
8~10 working days
Packaging Details :
Flight case, wooden case and carton box and foam package
Product name :
Stadium led display
Cabinet material :
Al-Mg
Module size :
320mmx160mm
Screen size :
Customized design
Brightness :
7000cd
Warranty :
5 years
Life time :
100,000H
MTBF :
10,000H
Description

P10 Stadium LED Display, Soccer Full Color Football Basketball Banner Perimeter

♦ Stadium led display description:

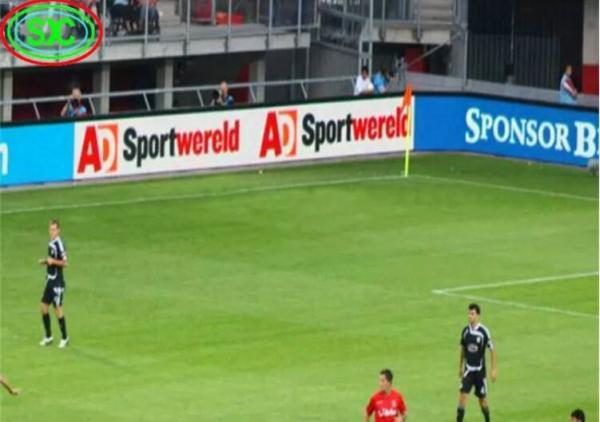

The SMD Sport Field LED Screen is ideal for places of with huge crowd. Its high resolution picture and wide viewing angle ensure best quality pictures and videos to every corner of the stadium. Stable body protects the display from any damage, even high speed ball.

♦ Wide viewing angle for broader Reach:

The display features a wide viewing angle of 140° which reaches more viewers. The picture quality remains seamless in all direction and at a distance, presenting all viewers the same highly quality outputs. This makes it suitable for large gathering.

7000cd Stadium Perimeter LED Display , P10 Basketball Led Screen

Stadium led display features:

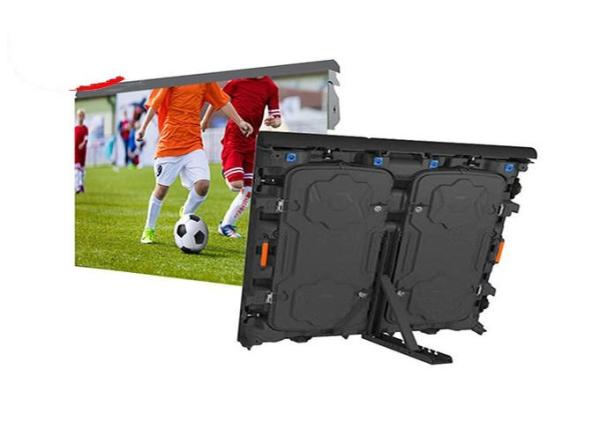

Strong reliability and low failure rate. Cable connects from the inner of cabinet which make it more simple and generous. It can be customized according to clients need.

7000cd Stadium Perimeter LED Display , P10 Basketball Led Screen

♦ Technical specification

outdoor SMD P10
Resolution/mm 10
Pixel configuration 1R1G1B
Pixel density/pixels/m² 10000/m²
Module resolution 32x16
Module size/mm 320x160
View distance 9-500m
Single point brightness adjust Can be added
Single point color adjust Can be added
White balance brightness >7000cd/㎡
Color temperature 6500K-9500K
Horizontal view angle 160(degrees)
Vertical view angle 160(degrees)
Signal Process bit 10 or 16bit
Grey process 1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distances Internet cable:100m, multimembrane:500m, monofilm:2km
Driving mode Constant driving current
Scanning mode (1/4)
Frame rate 60Hz
Refresh frequency >3840Hz
Control mode Computer synchronous
Brightness adjusted range

Manual, automatic operation, stepless continuous adjusted

255 steps. No grey loss
Out of control point <1/10000
Working hours ≥72hours
Mean Time Between Failure >10000hours
Life time 100000hours
Life-all-white(brightness halving) 50000hours
Environment temperature range Operating temperature range: -20-45℃
Maximum power:/㎡ <950W
Average power:/㎡ <350W
Self-check technology

LED spot self-check, communications check, power check,

temperature monitor(need customization)
Remote monitoring

Remote supervision and control, record potential fault,

send out warning signs to the operators.(need customization)
Software environment WindowsNT,Windows1999,WindowsXP
Luminous point width between centres Deviation<3%
Brightness uniformity <10%
Color uniformity(chromaticity coordinate) ±0.003
Power supply request AC85-264V(50Hz-60Hz)
Contrast (1000:1)
System protection Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
Humidity(working) working:10-95%
Humidity(storing) storing:10-95%

7000cd Stadium Perimeter LED Display , P10 Basketball Led Screen

♦ Stadium led display production process

7000cd Stadium Perimeter LED Display , P10 Basketball Led Screen

♦ Packaging and shipping

Wooden case or flight case package are available.

Shipping by sea, air or DHL, multiple shipping ways for your choice.

♦ Applications

--- Outdoor and indoor advertising, digital billboards, advertising companies
--- Sports halls, fields, playgrounds,school church
--- Airports, bus stations and railway passenger terminals.
--- Facades of shopping malls, department stores, banks and car dealerships.
--- Architecture and social projects, information systems in cities.
--- Show-business, concerts, festivals, motor shows and other public events.

Our team will be forever here to offer you full supports !!!
