Large Horizontal Ball Mill for Mining Ore Grinding and Milling Equipment
Large Horizontal Ball Mill for Mining Ore Grinding and Milling Equipment
Large Horizontal Ball Mill for Mining Ore Grinding and Milling Equipment
Large Horizontal Ball Mill for Mining Ore Grinding and Milling Equipment
Large Horizontal Ball Mill for Mining Ore Grinding and Milling Equipment
Large Horizontal Ball Mill for Mining Ore Grinding and Milling Equipment
Specifications
Brand Name :
Staurk
Model Number :
MQG Series
Certification :
CE ISO
Place of Origin :
China
MOQ :
1
Price :
2000USD-80000USD
Payment Terms :
T/T,L/C,D/A,D/P,Western Union
Supply Ability :
50 sets
Delivery Time :
30 days
Packaging Details :
Container or Bulk Cargo Ship or Flat Rack
Processing Capacity :
0.5TPH-200TPH
Output Size :
0-200 Mesh
After Sale Service :
Our Engineers Will Do Installtion And Commissioning And Training On Site If Need
Motor Brand :
China Famous Brand
Service Before Sale :
General Drawing Avaliable
Input Size :
＜25mm
Origin :
China Manufacturer
OEM :
Acceptable (buyer Provide Drawings)
Years Experience :
More Than 20 Years
Quality Inspection :
Acceptable By Third Party Like SGS,TU
Description

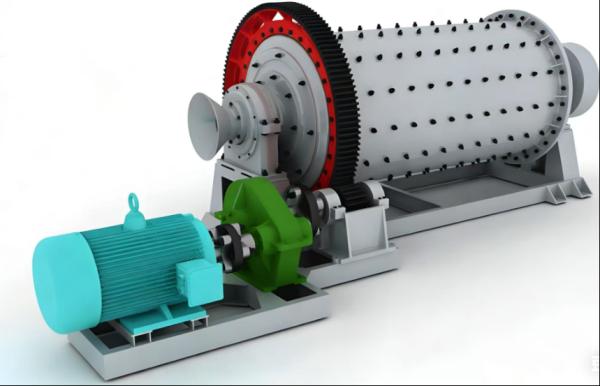

Large Horizontal Ball Mill for Mining Ore Grinding and Milling Equipment



Product Introduce

This energy-saving wet grate (overflow) type horizontal ball mill adopts thickened wear-resistant liners and large gear transmission. It features a high-strength cylinder and stable operation, enabling efficient wet grinding of materials such as gold ore, iron ore, and quartz sand. It is energy-saving, easy to maintain, and a core grinding equipment in mineral processing production lines.

Large Horizontal Ball Mill for Mining Ore Grinding and Milling Equipment

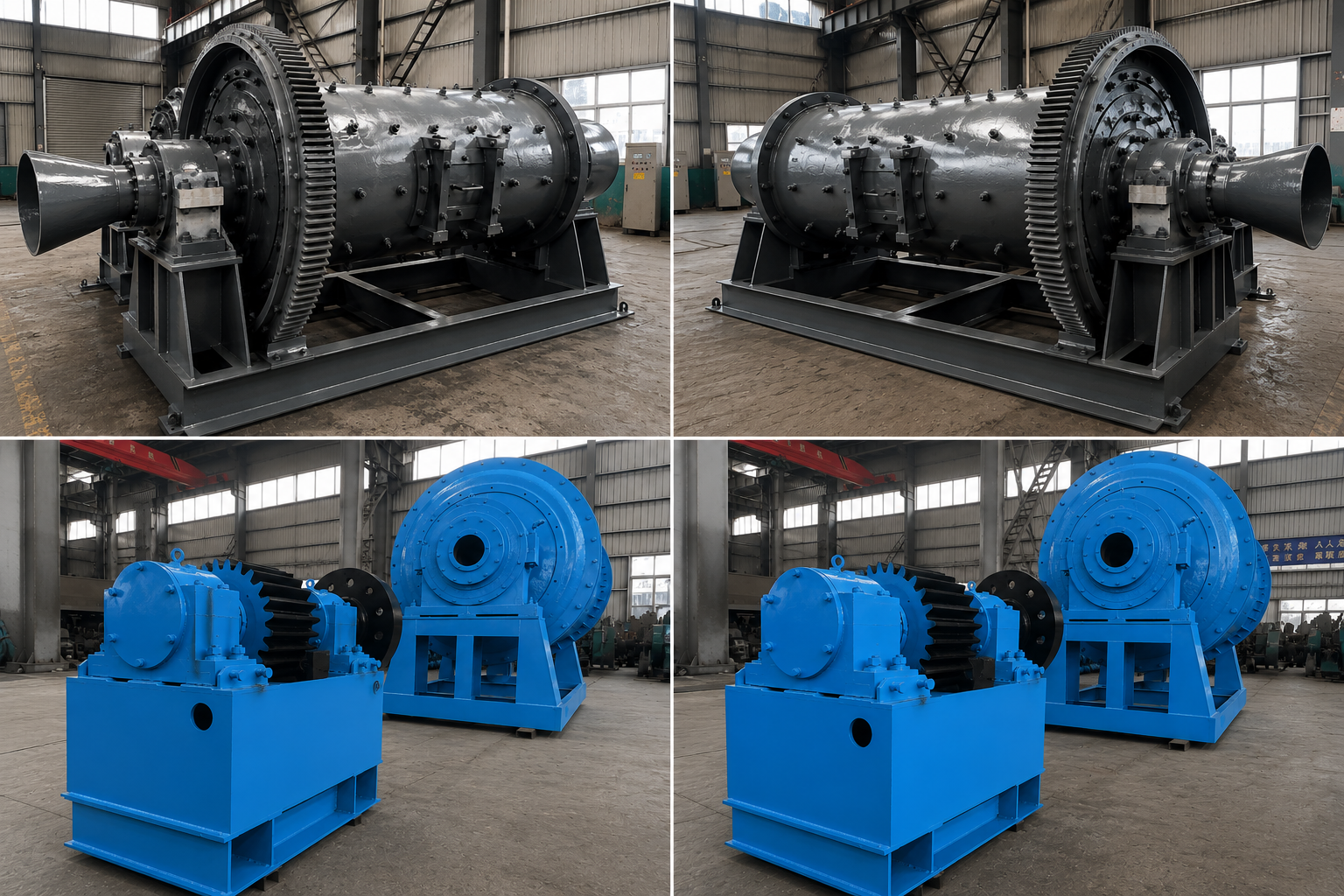

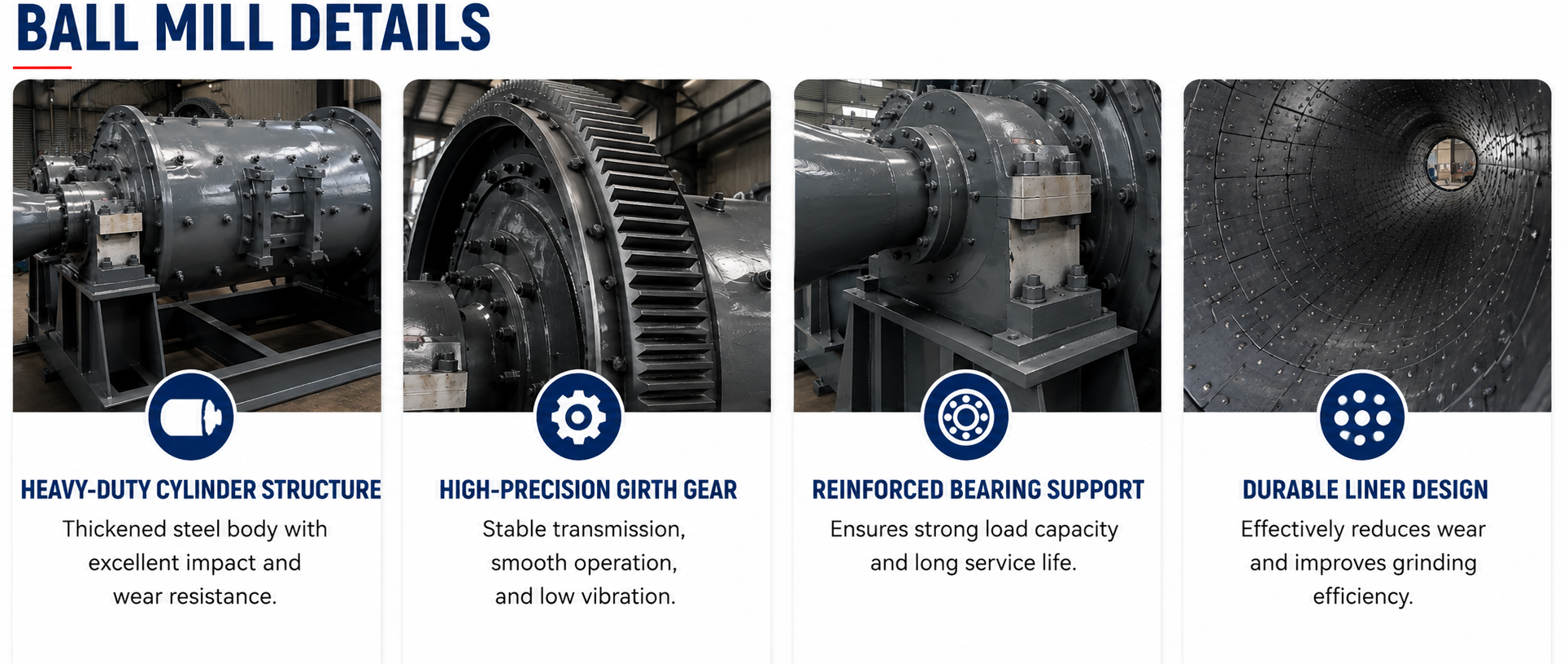

Details



Large Horizontal Ball Mill for Mining Ore Grinding and Milling Equipment



Technical Specifications


Model Cylinder RPM (r/min) Ball Load (t) Feeding Size (mm) Discharging Size (mm) Capacity (t/h) Motor Model Power (kW) Weight (t)
MQG600*1800 45.5 0.5 ≤ 10 0.074-0.5 0.2-0.5 Y160M-6 7.5 2.5
MQG900*1800 38 1.8 ≤ 20 0.074-0.6 0.8-2 Y180L-6 15 5.8
MQG900*3000 37.4 2.7 ≤ 20 0.074-0.3 0.8-3 Y200L2-6 22 7.5
MQG1200*2400 32 4.8 ≤ 25 0.074-0.6 1.5-4 Y225M-6 30 9.8
MQG1200*4500 30 5.2 ≤ 25 0.074-0.6 1.5-6 Y280S-6 45 13.2
MQG1300*4000 36 5.8 ≤ 25 0.074-0.6 2-6 Y280S-8 45 14.8
MQG1500*3500 28.8 8.3 ≤ 25 0.074-0.6 3-6 YR280M-8 90 17.6
MQG1500*4500 28.8 10 ≤ 25 0.074-0.4 4-8 JR125-8 95 22.3
MQG1500*5700 28.8 12 ≤ 25 0.074-0.4 5-10 JR126-8 110 26.7
MQG1500*6400 28.8 13 ≤ 25 0.074-0.4 8-12 JR127-8 130 29.2
MQG1830*3600 24.5 12 ≤ 25 0.074-0.4 5-10 JR127-8 130 31.4
MQG1830*5400 24.5 15 ≤ 25 0.074-0.4 5-20 JR137-8 210 33.6
MQG1830*6400 24.5 19 ≤ 25 0.074-0.4 6-25 JR137-8 210 36.5
MQG1830*7000 24.5 20 ≤ 25 0.074-0.4 8-30 JR138-8 245 39.6
MQG2100*3600 24.1 21 ≤ 25 0.074-0.6 8-20 YR355L1-8 210 43.2
MQG2100*4500 24.57 26 ≤ 25 0.074-0.6 8-35 JR138-8 280 53.6
MQG2200*3600 21.8 22 ≤ 25 0.074-0.6 9-25 JR138-8 245 47.8
MQG2200*4500 21.4 27 ≤ 25 0.074-0.6 10-30 JR138-8 280 54.7
MQG2200*7500 21.8 35 ≤ 25 0.074-0.6 10-40 JR158-8 380 68.4
MQG2200*9000 21.4 36 ≤ 25 0.074-0.6 10-45 JR1510-8 475 76.5
MQG2400*3600 21.26 26 ≤ 25 0.074-0.6 10-40 JR138-8 280 63.8
MQG2400*7000 21.8 36 ≤ 25 0.074-0.6 10-45 JR1510-8 475 82.4
MQG2400*8000 21.8 42 ≤ 25 0.074-0.6 13-50 JR630-8 560 85.7
MQG2400*10000 21 65 ≤ 25 0.074-0.6 15-60 YR560-8 710 88.6
MQG2600*8000 19.6 52 ≤ 25 0.074-0.6 16-70 JR1512-8 630 97.8
MQG2700*3600 21.4 39 ≤ 25 0.074-0.4 13-75 JR158-8 380 86.8
MQG2700*4500 21.4 43 ≤ 25 0.074-0.4 13-90 JR1510-8 475 91.8
MQG3000*5400 19 58 ≤ 25 0.074-0.6 - TDMK-30 630 119.7
MQG3000*9000 18.3 78 ≤ 25 0.074-0.4 20-90 YR1000-8/1180 1000 152.4
MQG3000*11000 18 100 ≤ 25 0.074-0.6 30-90 YR6306-8 1120 166.7
MQG3200*3600 18.6 56.5 ≤ 25 0.074-0.6 20-80 YR6302-8 630 127.4
MQG3200*4500 18.6 65 ≤ 25 0.074-0.6 20-90 YR6302-8 800 138.6
MQG3200*5400 18 72 ≤ 25 0.074-0.6 30-100 YR1000-8 1000 146.7
MQG3200*9000 18 85 ≤ 25 0.074-0.6 30-100 YR6302-8 1250 168.6
MQG3600*4500 18 86 ≤ 25 0.074-0.6 30-100 YR6302-8 1250 158.7
MQG3600*6000 18 117 ≤ 25 0.074-0.6 45-180 - 14000 195.6
MQG4000*6000 16.9 145 ≤ 25 0.074-0.6 60-230 - 1800 221.7
MQG4500*6000 15.6 180 ≤ 25 0.074-0.6 80-300 - 2300 269.6

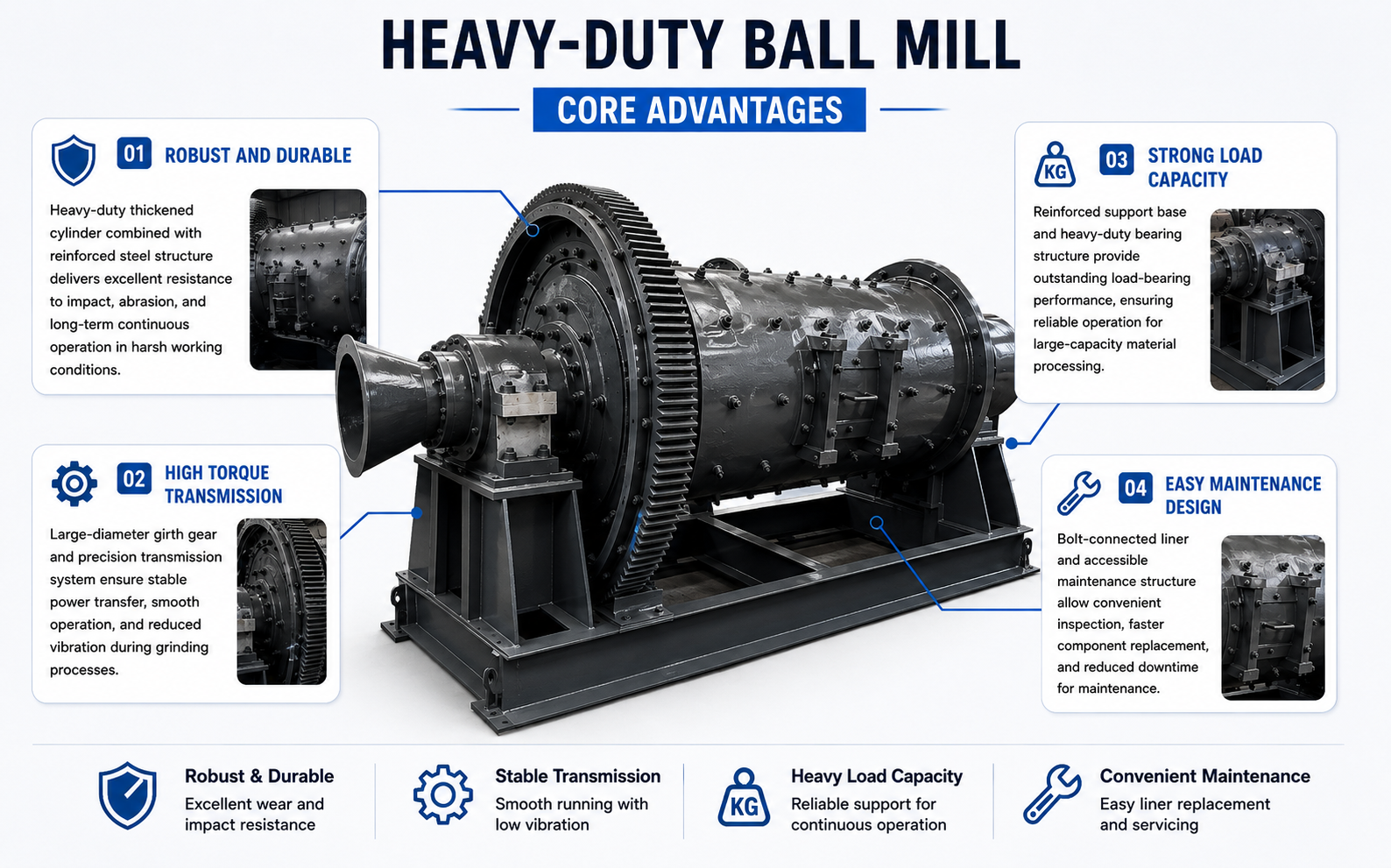

Advantages



Large Horizontal Ball Mill for Mining Ore Grinding and Milling Equipment



Certificate


Large Horizontal Ball Mill for Mining Ore Grinding and Milling Equipment

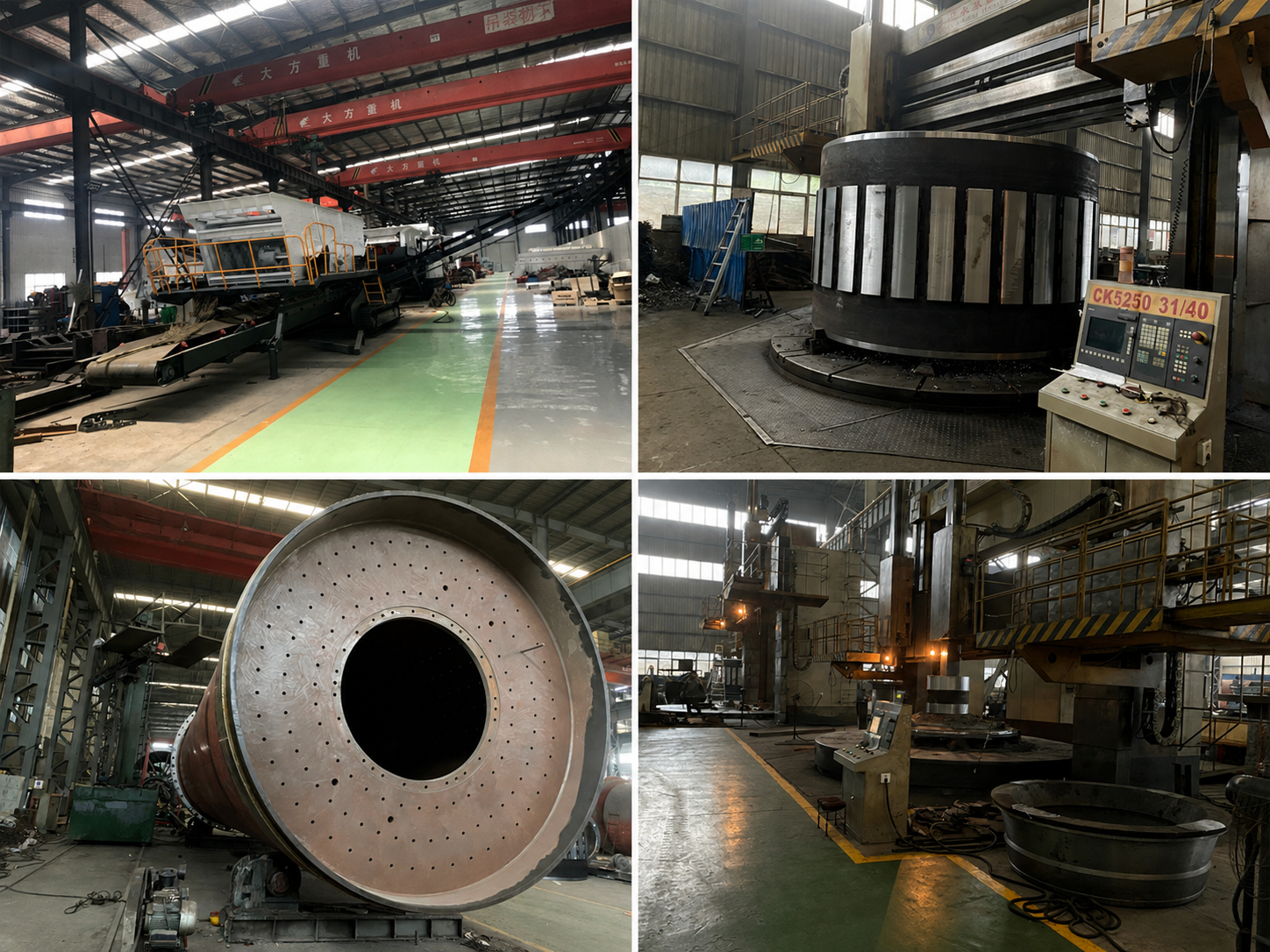

Factory


Large Horizontal Ball Mill for Mining Ore Grinding and Milling Equipment
