Description

5TPH 10TPH 20TPH 25TPH 30TPH Cement Clinker Grinding Ball Mill Unit Line


1.Product Introduction mineral grinding equipment


This is a ball mill production line system designed for cement clinker grinding. It is specifically engineered to pulverize fired cement clinker into a fine powder to produce finished cement.
Specifications: Available in various models with processing capacities ranging from 5 to 30 TPH (tons per hour).
Application: Ideal for small-to-medium-sized cement plants or specialized grinding stations.
Operational Note: While this is one of the most energy-intensive stages of cement manufacturing, it remains a critical core process for ensuring product quality.


2.Application mineral grinding equipment

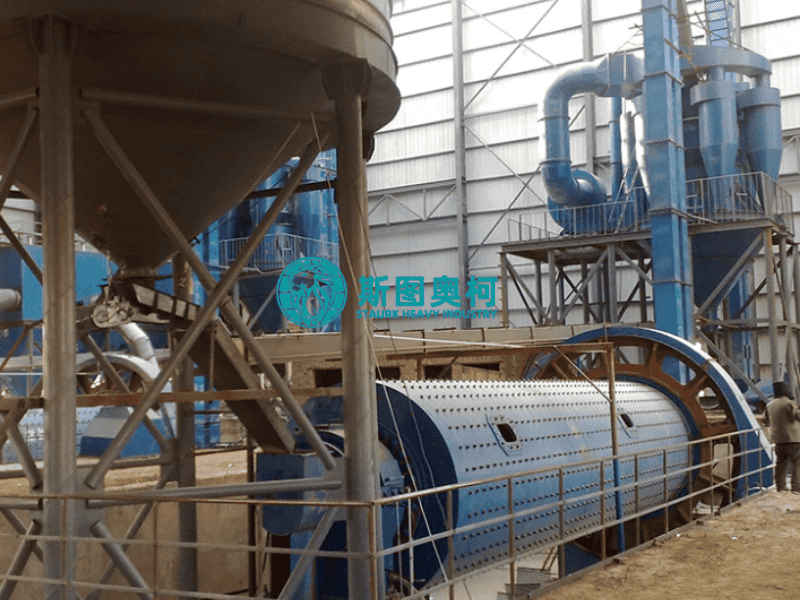

The cement clinker grinding ball mill serves as the core equipment of this production line.



3.Working Principle

Its operation is based on the synergistic effect of impact and attrition (grinding):
Impact: As the cylinder rotates slowly, the steel grinding media (balls) inside are lifted by the liner to a certain height before dropping freely, delivering a powerful impact to the cement clinker.
Attrition: Simultaneously, the steel balls roll and slide within the cylinder, creating a continuous grinding action that gradually refines the material until it meets the required fineness for cement.

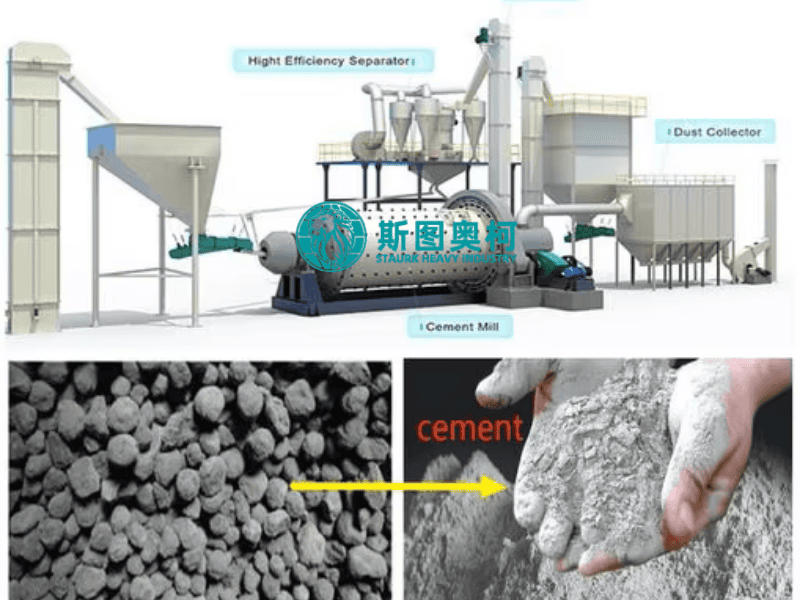

The entire system typically operates in a closed-circuit grinding process. The ball mill works in tandem with a powder classifier (separator): after the material is ground, it is fed into the classifier, where the qualified fine powder is separated as the finished product, while the coarse particles are returned to the ball mill for further grinding. This mechanism effectively prevents over-grinding and significantly improves production efficiency.

5TPH 10TPH 20TPH 25TPH 30TPH Cement Clinker Grinding Ball Mill Unit Line


4.Advantages


  • Superior Particle Morphology Control: Precise regulation of steel ball gradation and grinding time enables the production of an ideal particle size distribution (PSD) within the 3–30μm range. This dual-action control effectively meets the requirements for both early-stage and late-stage cement strength.
  • Adaptability to High-Hardness Materials: It offers a unique advantage when processing difficult-to-grind materials such as sintered clinker (Mohs hardness 6–7) and slag. As a core equipment for the fine-grinding stage, it remains difficult to replace—even by vertical roller mills (VRM).
  • High-Precision Closed-Circuit System: Operating in conjunction with a separator (classifier), the system achieves closed-loop grinding. Coarse particles are automatically returned for regrinding, preventing over-grinding and ensuring stable product fineness. The R0.08 sieve residue can be strictly controlled within ±1%.
  • High System Stability: Characterized by mature technology and reliable operation, the system shows high tolerance for fluctuations in raw material composition and moisture content. It is perfectly suited for small-to-medium-sized grinding stations or specialty cement production.

5.Technical Specifications

Model Cylinder RPM (r/min) Ball Load (t) Feeding Size (mm) Discharging Size (mm) Capacity (t/h) Motor Model Power (kW) Weight (t)
MQG600*1800 45.5 0.5 ≤ 10 0.074-0.5 0.2-0.5 Y160M-6 7.5 2.5
MQG900*1800 38 1.8 ≤ 20 0.074-0.6 0.8-2 Y180L-6 15 5.8
MQG900*3000 37.4 2.7 ≤ 20 0.074-0.3 0.8-3 Y200L2-6 22 7.5
MQG1200*2400 32 4.8 ≤ 25 0.074-0.6 1.5-4 Y225M-6 30 9.8
MQG1200*4500 30 5.2 ≤ 25 0.074-0.6 1.5-6 Y280S-6 45 13.2
MQG1300*4000 36 5.8 ≤ 25 0.074-0.6 2-6 Y280S-8 45 14.8
MQG1500*3500 28.8 8.3 ≤ 25 0.074-0.6 3-6 YR280M-8 90 17.6
MQG1500*4500 28.8 10 ≤ 25 0.074-0.4 4-8 JR125-8 95 22.3
MQG1500*5700 28.8 12 ≤ 25 0.074-0.4 5-10 JR126-8 110 26.7
MQG1500*6400 28.8 13 ≤ 25 0.074-0.4 8-12 JR127-8 130 29.2
MQG1830*3600 24.5 12 ≤ 25 0.074-0.4 5-10 JR127-8 130 31.4
MQG1830*5400 24.5 15 ≤ 25 0.074-0.4 5-20 JR137-8 210 33.6
MQG1830*6400 24.5 19 ≤ 25 0.074-0.4 6-25 JR137-8 210 36.5
MQG1830*7000 24.5 20 ≤ 25 0.074-0.4 8-30 JR138-8 245 39.6
MQG2100*3600 24.1 21 ≤ 25 0.074-0.6 8-20 YR355L1-8 210 43.2
MQG2100*4500 24.57 26 ≤ 25 0.074-0.6 8-35 JR138-8 280 53.6
MQG2200*3600 21.8 22 ≤ 25 0.074-0.6 9-25 JR138-8 245 47.8
MQG2200*4500 21.4 27 ≤ 25 0.074-0.6 10-30 JR138-8 280 54.7
MQG2200*7500 21.8 35 ≤ 25 0.074-0.6 10-40 JR158-8 380 68.4
MQG2200*9000 21.4 36 ≤ 25 0.074-0.6 10-45 JR1510-8 475 76.5
MQG2400*3600 21.26 26 ≤ 25 0.074-0.6 10-40 JR138-8 280 63.8
MQG2400*7000 21.8 36 ≤ 25 0.074-0.6 10-45 JR1510-8 475 82.4
MQG2400*8000 21.8 42 ≤ 25 0.074-0.6 13-50 JR630-8 560 85.7
MQG2400*10000 21 65 ≤ 25 0.074-0.6 15-60 YR560-8 710 88.6
MQG2600*8000 19.6 52 ≤ 25 0.074-0.6 16-70 JR1512-8 630 97.8
MQG2700*3600 21.4 39 ≤ 25 0.074-0.4 13-75 JR158-8 380 86.8
MQG2700*4500 21.4 43 ≤ 25 0.074-0.4 13-90 JR1510-8 475 91.8
MQG3000*5400 19 58 ≤ 25 0.074-0.6 - TDMK-30 630 119.7
MQG3000*9000 18.3 78 ≤ 25 0.074-0.4 20-90 YR1000-8/1180 1000 152.4
MQG3000*11000 18 100 ≤ 25 0.074-0.6 30-90 YR6306-8 1120 166.7
MQG3200*3600 18.6 56.5 ≤ 25 0.074-0.6 20-80 YR6302-8 630 127.4
MQG3200*4500 18.6 65 ≤ 25 0.074-0.6 20-90 YR6302-8 800 138.6
MQG3200*5400 18 72 ≤ 25 0.074-0.6 30-100 YR1000-8 1000 146.7
MQG3200*9000 18 85 ≤ 25 0.074-0.6 30-100 YR6302-8 1250 168.6
MQG3600*4500 18 86 ≤ 25 0.074-0.6 30-100 YR6302-8 1250 158.7
MQG3600*6000 18 117 ≤ 25 0.074-0.6 45-180 - 14000 195.6
MQG4000*6000 16.9 145 ≤ 25 0.074-0.6 60-230 - 1800 221.7
MQG4500*6000 15.6 180 ≤ 25 0.074-0.6 80-300 - 2300 269.6
