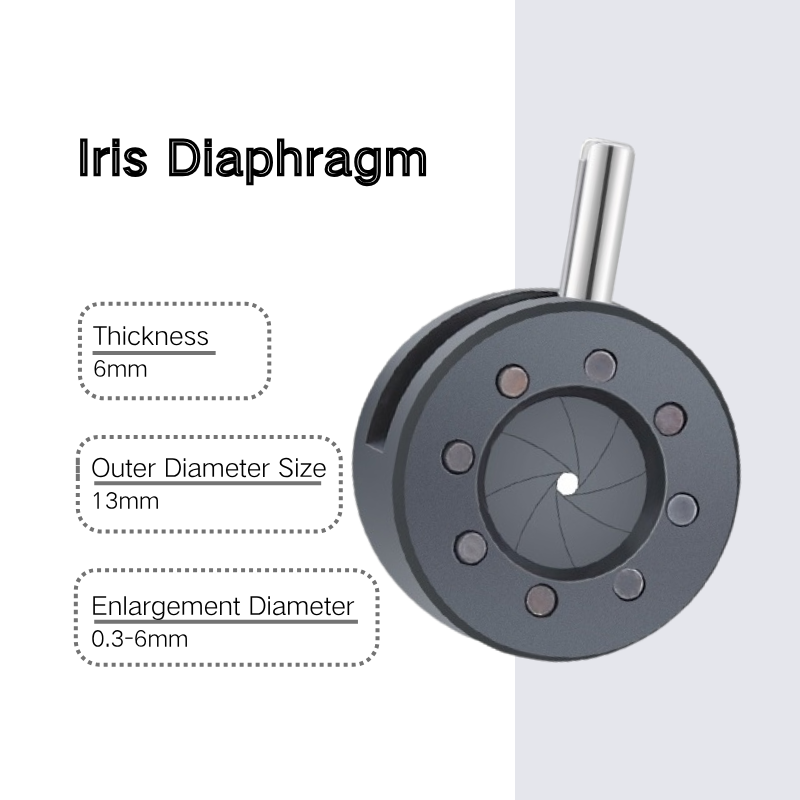

Specifications
Model Number :
09-004-039
Thickness :
6mm
Payment Terms :
T/T&ID card
Holder material :
Alumiuum alloy
Place of Origin :
Sichuan, China
Aperture Min. :
0.3mm
Price :
$6.40-8.60 / piece
Blade quantity :
8pieces
Delivery Time :
1-4WEEK
Blade material :
Stainless steel
MOQ :
100 pieces
Aperture Max. :
6mm
Packaging Details :
CARTON
Lever Length :
6.5mm
Brand Name :
CCHT
Diameter :
Φ13mm
Description
Precision Manual Iris for Optical Beam Aperture Adjustment

Product Performance

  • Ultra‑small minimum aperture Φ0.3 mm, suitable for precise beam adjustment in optical experiment and precision optical system.

  • Adjustable aperture range from Φ0.3 mm to Φ6 mm, meets diversified light‑control requirements.

  • 8‑piece stainless‑steel blades deliver high circularity of aperture opening for uniform light spot performance.

  • Compact outer dimension Φ13 mm with thin‑body design, easy to integrate into limited‑space optical equipment.

  • Aluminum‑alloy housing features lightweight and solid structure, stable for long‑time manual adjustment operation.

Application Scenarios

  • Optical Instruments: Suitable for use in microscopes, telescopes, and other optical devices requiring precise light control.

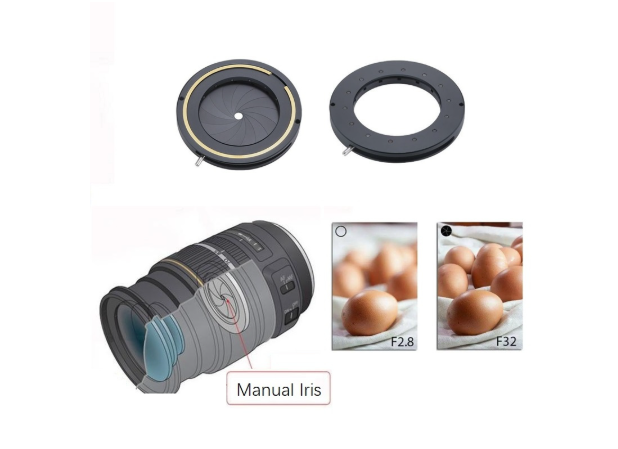

  • Imaging Systems: Ideal for cameras, projectors, and other imaging equipment where aperture adjustment is crucial.

  • Industrial & Scientific Applications: Useful in laser systems, optical sensors, and other scientific instruments for beam shaping and light regulation.

  • Biomedical Fluorescence Imaging Modules: Delivers continuous luminous flux adjustment for compact fluorescence detection equipment, suppressing stray light and enhancing fluorescence signal contrast.
Precision Manual Iris for Optical Beam Aperture Adjustment Precision Manual Iris for Optical Beam Aperture Adjustment Precision Manual Iris for Optical Beam Aperture Adjustment
Company Introduction

Chengdu Century Huasha Trading Co., Ltd. (hereinafter referred to as CCHT) is located in Chengdu which is the largest and most developed city in southwest China.

CCHT is a professional supplier of micro drive module, lens, camera module, etc.

CCHT supplies 1000+ products, services 100+ customers and exports to 40+ countries world-wide.

Precision Manual Iris for Optical Beam Aperture Adjustment
Our Services & Strength

Design and customize.
