1~12mm Manual Focus Adjustable Iris Vari-Focal Aperture Diaphragms
1~12mm Manual Focus Adjustable Iris Vari-Focal Aperture Diaphragms
1~12mm Manual Focus Adjustable Iris Vari-Focal Aperture Diaphragms
1~12mm Manual Focus Adjustable Iris Vari-Focal Aperture Diaphragms
1~12mm Manual Focus Adjustable Iris Vari-Focal Aperture Diaphragms
1~12mm Manual Focus Adjustable Iris Vari-Focal Aperture Diaphragms
1~12mm Manual Focus Adjustable Iris Vari-Focal Aperture Diaphragms
1~12mm Manual Focus Adjustable Iris Vari-Focal Aperture Diaphragms
1~12mm Manual Focus Adjustable Iris Vari-Focal Aperture Diaphragms
1~12mm Manual Focus Adjustable Iris Vari-Focal Aperture Diaphragms
1~12mm Manual Focus Adjustable Iris Vari-Focal Aperture Diaphragms
1~12mm Manual Focus Adjustable Iris Vari-Focal Aperture Diaphragms
Specifications
Price :
$6.40-8.60 / piece
Blade quantity :
10 pieces
Delivery Time :
1-4WEEK
Blade material :
Stainless steel
Model Number :
09-004-008
Aperture Min. :
12mm
Payment Terms :
T/T&ID card
Holder material :
Alumiuum alloy
Place of Origin :
Sichuan, China
Thickness :
5mm
Packaging Details :
CARTON
Brand Name :
CCHT
Diameter :
Φ19.8mm
MOQ :
100 pieces
Lever length :
4.5mm
Description

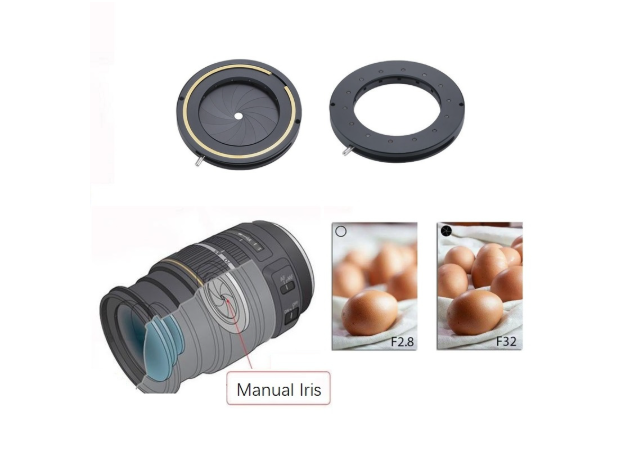

1~12mm Manual Focus Adjustable Iris Vari-Focal Aperture Diaphragms

Product Performance

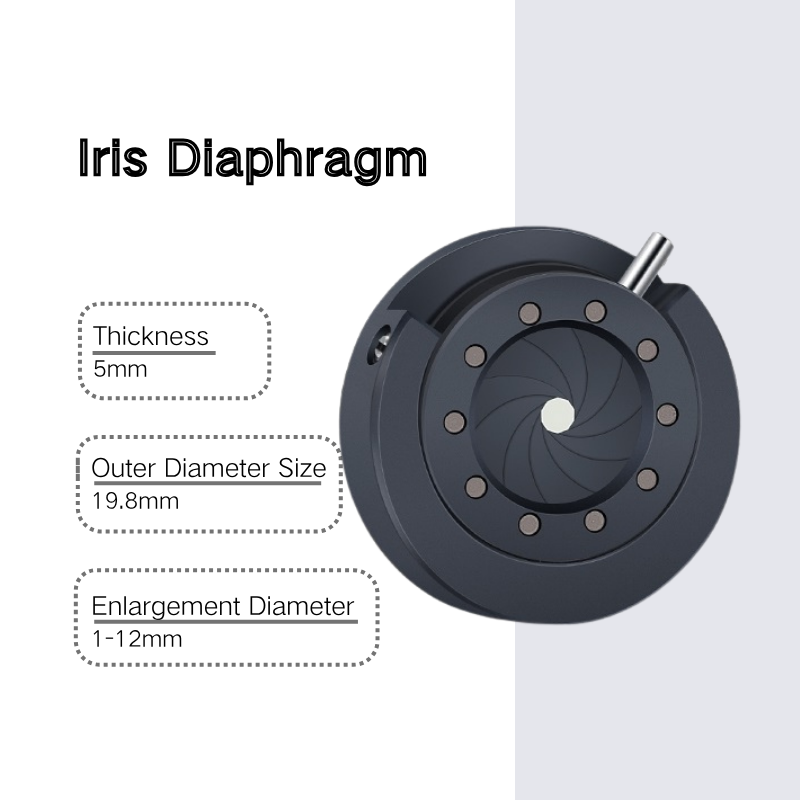

  • Stepless adjustable aperture range: Φ1mm‑Φ12mm, precisely control luminous flux for optical systems.

  • 10‑piece stainless‑steel blades, smooth lever adjustment without jamming.

  • Compact aluminum‑alloy housing, dimension Φ19.8*5 mm, easy for space‑limited optical assembly.

  • Reliable positioning performance, keeps aperture size stable after adjustment, no aperture drift.

  • Anti‑reflection blade surface reduces stray light, improves imaging quality.

  • Long service life, fits machine‑vision cameras, microscopes and various optical instruments.

Application Scenarios

  • Optical Instruments: Suitable for use in microscopes, telescopes, and other optical devices requiring precise light control.

  • Imaging Systems: Ideal for cameras, projectors, and other imaging equipment where aperture adjustment is crucial.

  • Industrial & Scientific Applications: Useful in laser systems, optical sensors, and other scientific instruments for beam shaping and light regulation.

  • Biomedical Fluorescence Imaging Modules: Delivers continuous luminous flux adjustment for compact fluorescence detection equipment, suppressing stray light and enhancing fluorescence signal contrast.

1~12mm Manual Focus Adjustable Iris Vari-Focal Aperture Diaphragms 1~12mm Manual Focus Adjustable Iris Vari-Focal Aperture Diaphragms1~12mm Manual Focus Adjustable Iris Vari-Focal Aperture Diaphragms
Company Introduction

Chengdu Century Huasha Trading Co., Ltd. (hereinafter referred to as CCHT) is located in Chengdu which is the largest and most developed city in southwest China.

CCHT is a professional supplier of micro drive module, lens, camera module, etc.

CCHT supplies 1000+ products, services 100+ customers and exports to 40+ countries world-wide.

1~12mm Manual Focus Adjustable Iris Vari-Focal Aperture Diaphragms
Our Services & Strength

Design and customize.
