Specifications
Brand Name :
Pronets or OEM
Model Number :
PQS28-BxxHG-20DC
Certification :
UL FCC RoHS FDA
Place of Origin :
China
MOQ :
1pcs
Price :
US $300/pcs
Payment Terms :
T/T, Western Union
Supply Ability :
10000pcs/day
Packaging Details :
plastic containers
type :
fiber optical active passive product
keyword :
optical transceiver/Network switch/Media converter
Description

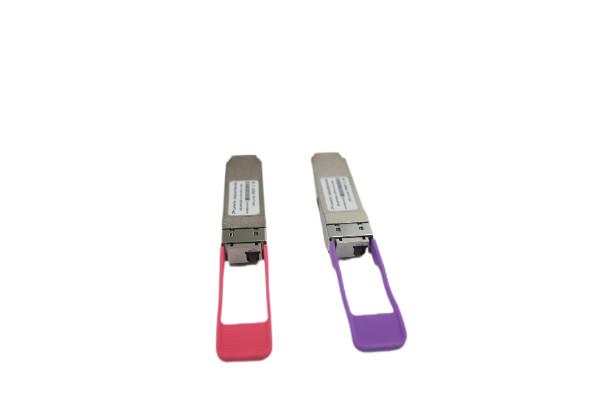

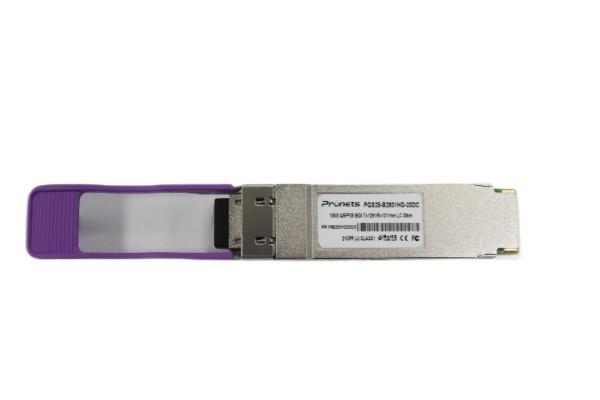

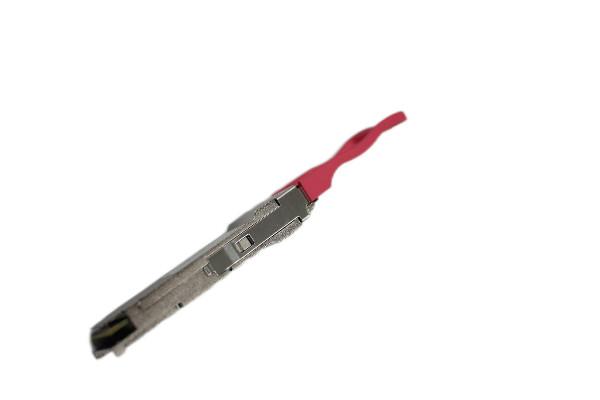

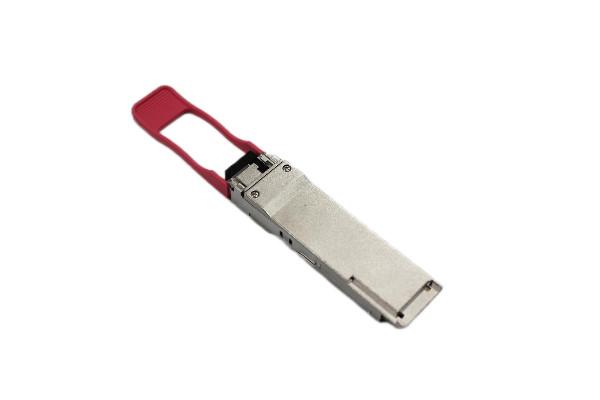

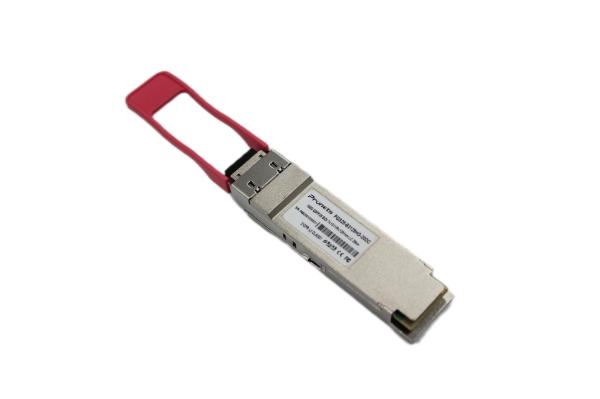

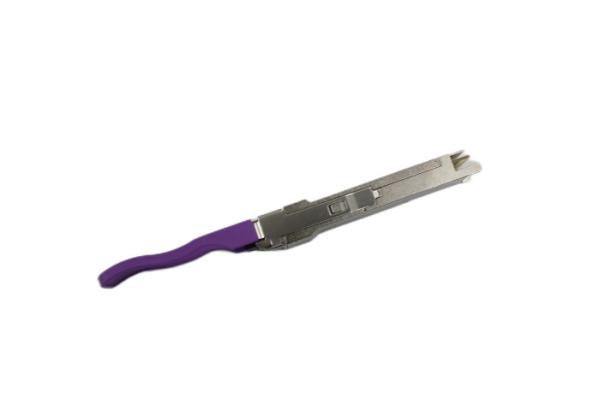

PQS28-BxxHG-20DC 100Gb/s QSFP28 BIDI LR1 20km DDM Transceiver compatible with CISCO, HP, Intel, H3C , Huawei
Features
Lane signaling rate 106.25Gb/s with PAM4
Up to 20km transmission on SMF
EML Laser and PIN receiver
4x25.78Gb/s with NRZ electrical interface (CAUI-4)
Support KP4 FEC inside the module
High speed I/O electrical interface
I2C interface with integrated Digital Diagnostic monitoring
QSFP28 MSA package with simplex LC connector
Single +3.3V power supply
Power consumption <4W
Compliant to SFF-8636&SFF-8679 standard
Compliant to 100G Lambda MSA 100G-LR1 Optical Specifications
Complies with EU Directive 2015/863/EU
Operating case temperature: 0 to +70 °C
Applications
Data Center
100GBASE-LR BIDI
