850nm QSFP28 100GBASE SR4 Multi Mode 100M Reach PQS28-85HG-SR4
850nm QSFP28 100GBASE SR4 Multi Mode 100M Reach PQS28-85HG-SR4
850nm QSFP28 100GBASE SR4 Multi Mode 100M Reach PQS28-85HG-SR4
850nm QSFP28 100GBASE SR4 Multi Mode 100M Reach PQS28-85HG-SR4
850nm QSFP28 100GBASE SR4 Multi Mode 100M Reach PQS28-85HG-SR4
850nm QSFP28 100GBASE SR4 Multi Mode 100M Reach PQS28-85HG-SR4
850nm QSFP28 100GBASE SR4 Multi Mode 100M Reach PQS28-85HG-SR4
850nm QSFP28 100GBASE SR4 Multi Mode 100M Reach PQS28-85HG-SR4
850nm QSFP28 100GBASE SR4 Multi Mode 100M Reach PQS28-85HG-SR4
850nm QSFP28 100GBASE SR4 Multi Mode 100M Reach PQS28-85HG-SR4
850nm QSFP28 100GBASE SR4 Multi Mode 100M Reach PQS28-85HG-SR4
850nm QSFP28 100GBASE SR4 Multi Mode 100M Reach PQS28-85HG-SR4
Specifications
Brand Name :
Pronets or OEM
Model Number :
PQS28-85HG-SR4
Certification :
UL FCC RoHS FDA
Place of Origin :
China
MOQ :
1pcs
Price :
US $25/pcs
Payment Terms :
T/T, Western Union
Supply Ability :
10000pcs/day
Packaging Details :
plastic containers
type :
fiber optical active passive product
keyword :
optical transceiver/Network switch/Media converter
Description

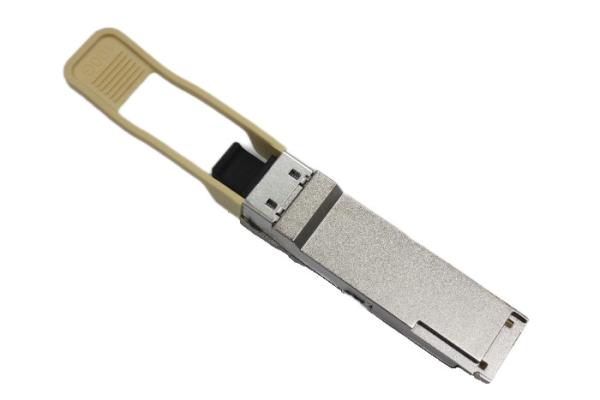

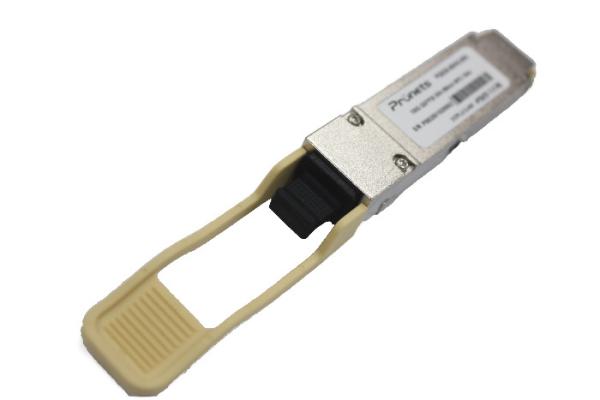

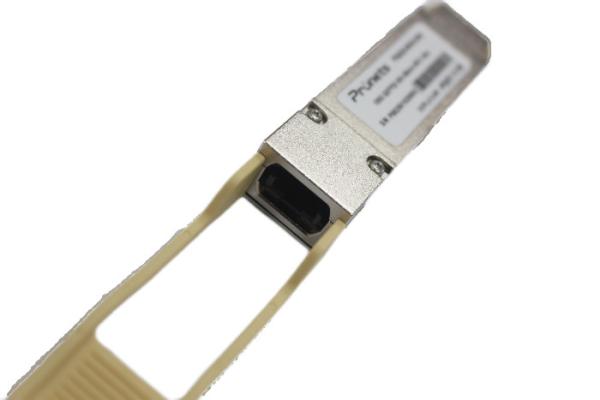

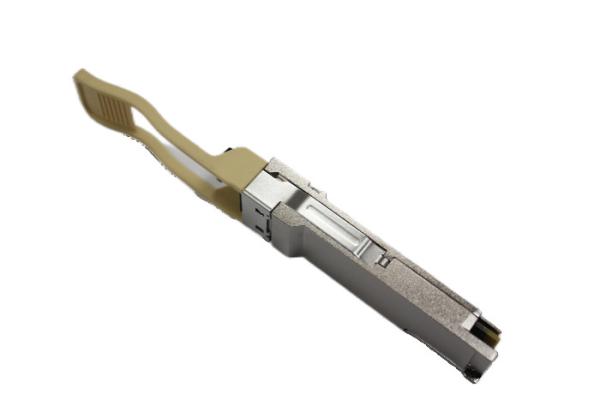

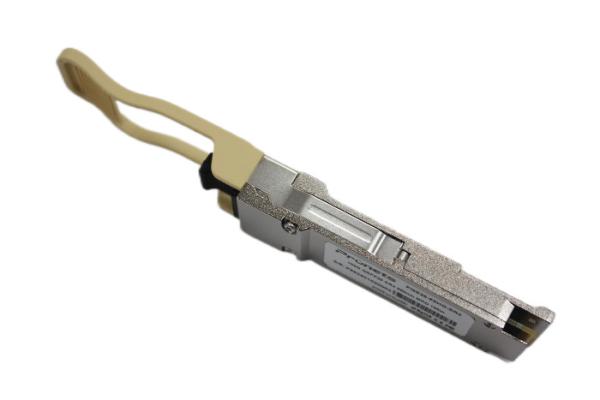

PQS28-85HG-SR4 100Gbps QSFP28 Transceiver, Multi Mode, 100m Reach
DESCRIPTION
PQS28-85HG-SR4 is 100Gb/s QSFP28 SR4 transceiver. It is compliant with the QSFP28 MSA and
IEEE 802.3bm. QSFP28 SR4 is an assembly of four full-duplex lanes, where each lane is capable
of transmitting data at rates up to 25.78Gb/s, providing an aggregated rate of 103.125Gb/s.
FEATURES
Four-channel full-duplex transceiver
25.78Gb/s data rate per channel
Maximum link length of 70m on OM3(MMF) ,100m on OM4 (MMF)
Power dissipation < 2.5W
Built-in digital diagnostic functions
Built-in CDR
850nm VCSEL transmitter
Good EMI performance
Single 3.3V power supply
RoHS compliant
Operating case temperature: 0~+70°C
APPLICATION
100GBASE-SR4 100G Ethernet
High-speed interconnects within/between switches, routers and transport equipment
Server-server clusters
Super-computinginterconnections
Interconnects rack-to-rack, shelf-to-shelf, board-to-board, board-to-optical backplane
