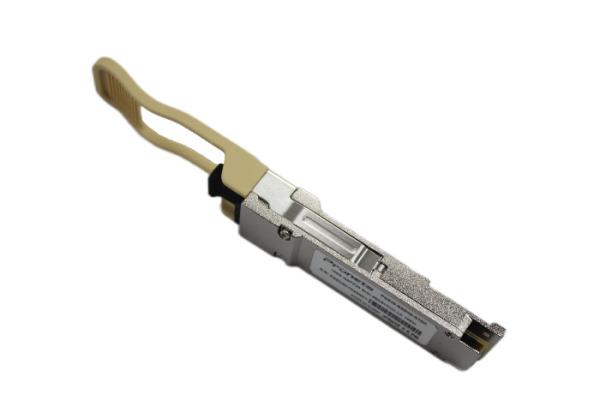

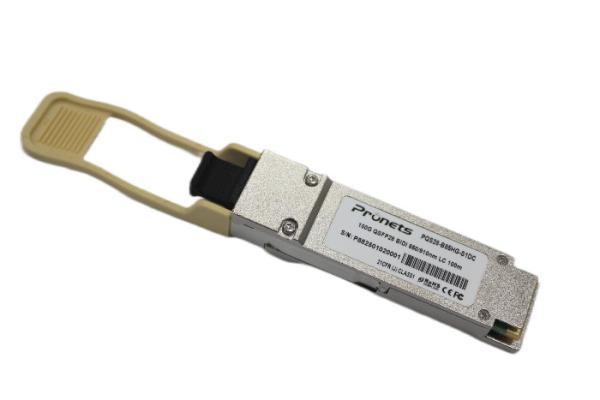

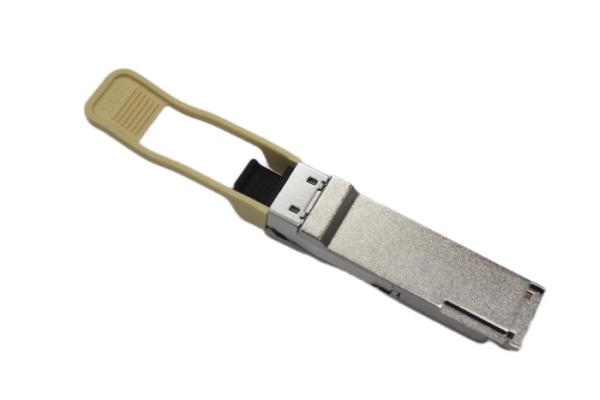

100Gbps QSFP28 BIDI SR Transceiver 100m Reach Multi Mode Transceiver
100Gbps QSFP28 BIDI SR Transceiver 100m Reach Multi Mode Transceiver
100Gbps QSFP28 BIDI SR Transceiver 100m Reach Multi Mode Transceiver
100Gbps QSFP28 BIDI SR Transceiver 100m Reach Multi Mode Transceiver
100Gbps QSFP28 BIDI SR Transceiver 100m Reach Multi Mode Transceiver
100Gbps QSFP28 BIDI SR Transceiver 100m Reach Multi Mode Transceiver
Specifications
Brand Name :
Pronets or OEM
Model Number :
PQS28-B85HG-S1DC
Certification :
UL FCC RoHS FDA
Place of Origin :
China
MOQ :
1pcs
Price :
US $250/pcs
Payment Terms :
T/T, Western Union
Supply Ability :
10000pcs/day
Packaging Details :
plastic containers
type :
fiber optical active passive product
keyword :
optical transceiver/Network switch/Media converter
Description
PQS28-B85HG-S1DC 100Gbps QSFP28 BIDI SR Transceiver, Multi Mode, 100m Reach
FEATURES
QSFP28 module form factor
Support QSFP28 SFF-8436/8636
2x53.125Gbps(26.5625GBd) PAM4 parallel
optics architecture
4x25.78125Gbps NRZ retimed electrical I/O
Bandwidth density of 100Gbps bi-directional
2 channels 850nm/910nm VCSEL and PIN photo detector
Internal 4:2 Gearbox with KP4 FEC circuits on both receiver and transmitter channels
Duplex LC connector
Maximum link length of 100m OM4,70m OM3
Built-in digital diagnostic functions
Single 3.3V power supply
Low power consumption < 4W
RoHS compliant (lead free)
Operating case temperature: 0~+70°C
APPLICATION
100G SR BD applications
High-speed interconnects within and between switches, routers and transport equipment
Server-server clusters, super-computing interconnections
Proprietary backplanes
Interconnects rack-to-rack, shelf-to-shelf, board-to-board, board-to-optical backplane
