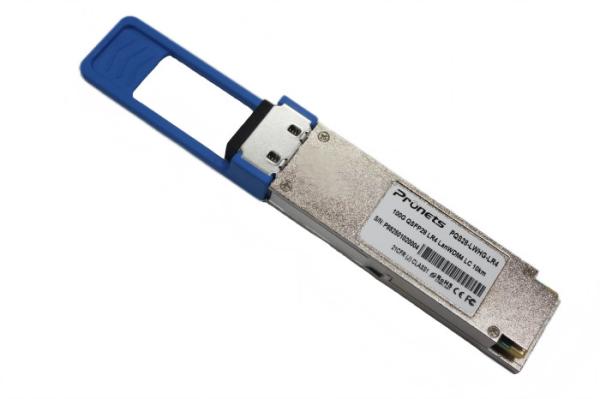

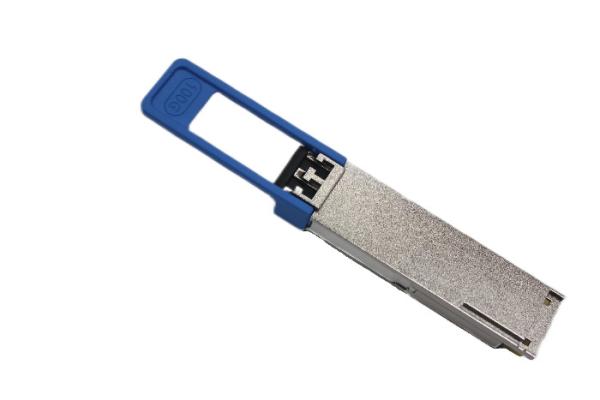

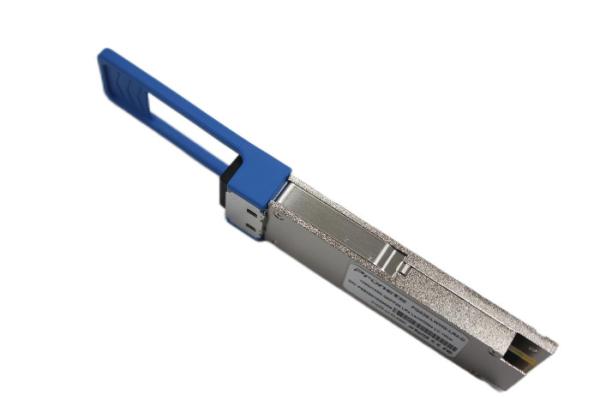

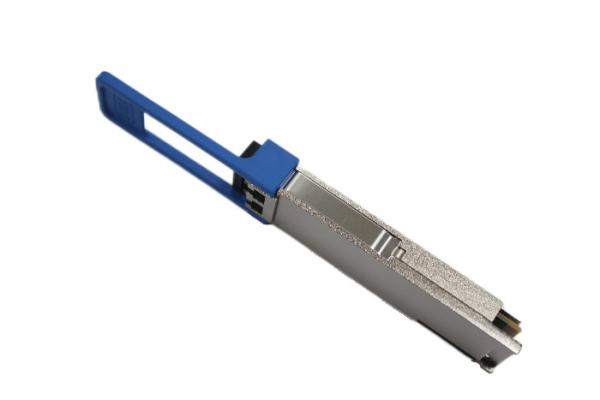

LR4 Transceiver 100G QSFP28 10km Reach Single Mode Transceiver
LR4 Transceiver 100G QSFP28 10km Reach Single Mode Transceiver
LR4 Transceiver 100G QSFP28 10km Reach Single Mode Transceiver
LR4 Transceiver 100G QSFP28 10km Reach Single Mode Transceiver
LR4 Transceiver 100G QSFP28 10km Reach Single Mode Transceiver
LR4 Transceiver 100G QSFP28 10km Reach Single Mode Transceiver
LR4 Transceiver 100G QSFP28 10km Reach Single Mode Transceiver
LR4 Transceiver 100G QSFP28 10km Reach Single Mode Transceiver
Specifications
Brand Name :
Pronets or OEM
Model Number :
PQS28-LWHG-LR4
Certification :
UL FCC RoHS FDA
Place of Origin :
China
MOQ :
1pcs
Price :
US $
Payment Terms :
T/T
Supply Ability :
10000pcs/day
Packaging Details :
plastic containers
type :
fiber optical active passive product
keyword :
optical transceiver/Network switch/Media converter
Description
PQS28-LWHG-LR4 100Gbps QSFP28 Transceiver, Single Mode, 10km Reach
DESCRIPTION
PQS28-LWHG-LR4 is 100Gb/s QSFP28 LR4 transceiver. It is compliant with the QSFP28 MSA
and IEEE 802.3ba. QSFP28 LR4 transceiver modules are designed for use in 100 Gigabit Ethernet
interfaces over single mode fiber.
FEATURES
Hot-pluggable QSFP28 form factor
Supports 103.1Gb/s aggregate bit rates
Maximum link length of 10km on Single Mode Fiber (SMF)
Power dissipation < 3.5W
Built-in digital diagnostic functions
Built-in CDR
4x25.78Gb/s DFB-based LAN-WDM transmitter
Duplex LC receptacles
Single 3.3V power supply
RoHS compliant
Operating case temperature: 0~+70°C
APPLICATION
100GBASE-LR4 100G Ethernet
