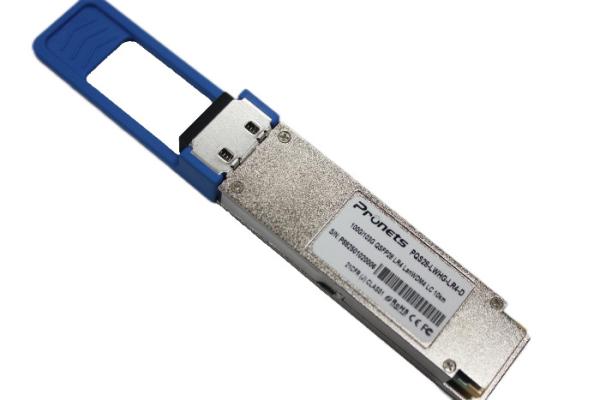

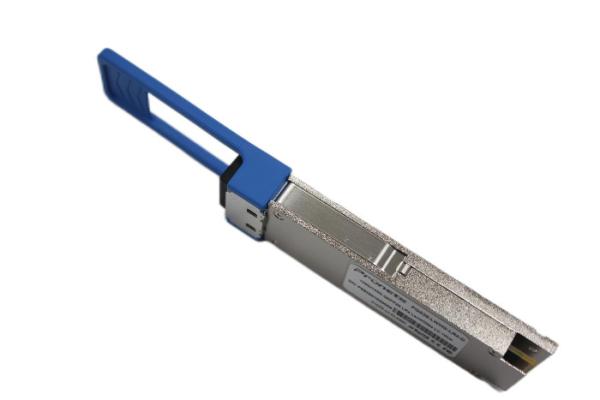

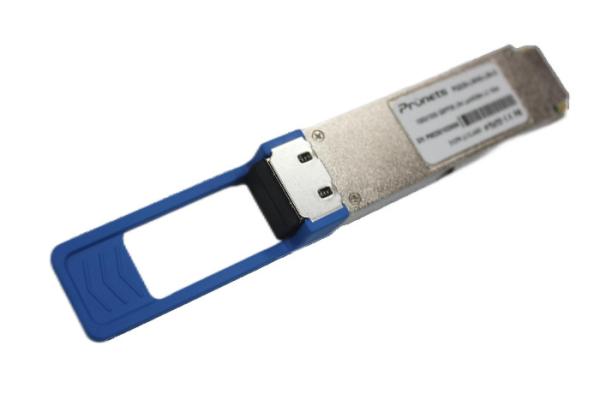

PQS28-LWHD-LR4-D Multi Rate 100Gbps QSFP28 Transceiver Single Mode 10km Reach
PQS28-LWHD-LR4-D Multi Rate 100Gbps QSFP28 Transceiver Single Mode 10km Reach
PQS28-LWHD-LR4-D Multi Rate 100Gbps QSFP28 Transceiver Single Mode 10km Reach
PQS28-LWHD-LR4-D Multi Rate 100Gbps QSFP28 Transceiver Single Mode 10km Reach
PQS28-LWHD-LR4-D Multi Rate 100Gbps QSFP28 Transceiver Single Mode 10km Reach
PQS28-LWHD-LR4-D Multi Rate 100Gbps QSFP28 Transceiver Single Mode 10km Reach
Specifications
Brand Name :
Pronets or OEM
Model Number :
PQS28-LWHD-LR4-D
Certification :
UL FCC RoHS FDA
Place of Origin :
China
MOQ :
1pcs
Price :
US $
Payment Terms :
T/T
Supply Ability :
10000pcs/day
Packaging Details :
plastic containers
type :
fiber optical active passive product
keyword :
optical transceiver/Network switch/Media converter
Description
PQS28-LWHD-LR4-D Multi-rate 100Gbps QSFP28 Transceiver, Single Mode, 10km Reach
DESCRIPTION
PQS28-LWHD-LR4-D is Multi-rate 100Gb/s QSFP28 LR4 transceiver. It is compliant with the
QSFP28 MSA, IEEE 802.3ba and OTU4 4I1-9D1F. QSFP28 LR4 transceiver modules are
designed for use in 100 Gigabit Ethernet and 4x28G OTN client interfaces over single mode fiber.
FEATURES
Hot-pluggable QSFP28 form factor
Supports 103.1Gb/s and 112Gb/s aggregate bit rates
Maximum link length of 10km on Single Mode Fiber (SMF)
Power dissipation < 3.5W
Built-in digital diagnostic functions
Built-in CDR
4x28Gb/s DFB-based LAN-WDM transmitter
Duplex LC receptacles
Single 3.3V power supply
RoHS compliant
Operating case temperature: 0~+70°C
APPLICATION
100GBASE-LR4 100G Ethernet
OTN OTU4 4I1-9D1F
