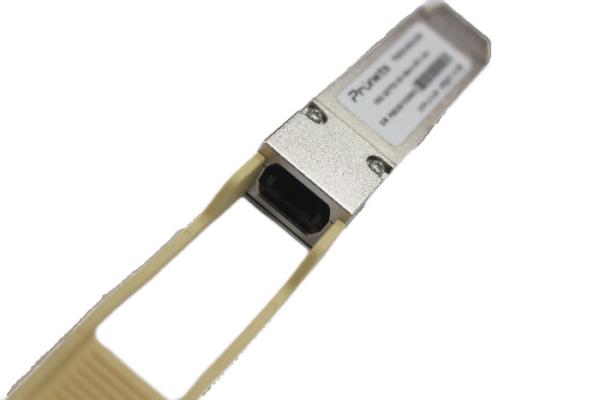

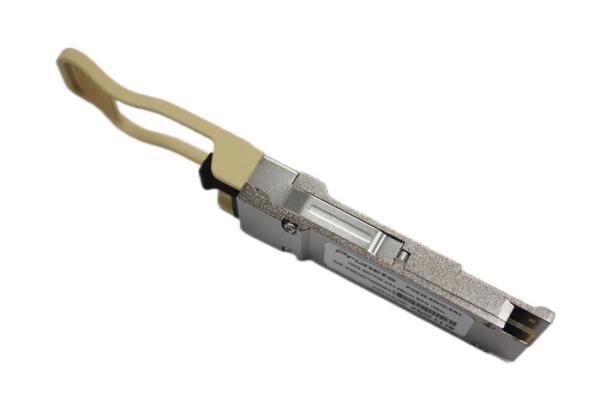

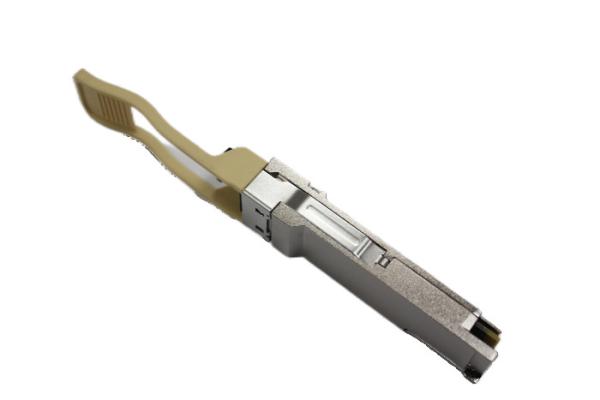

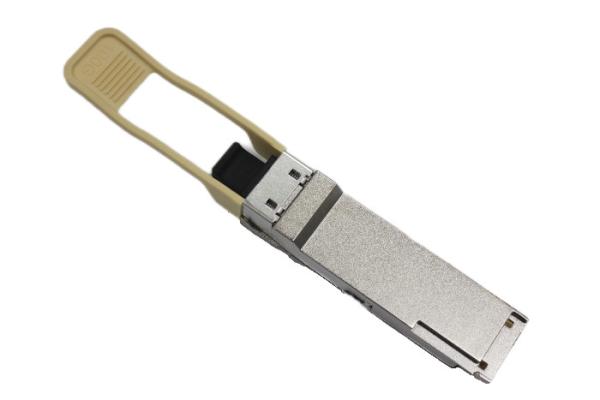

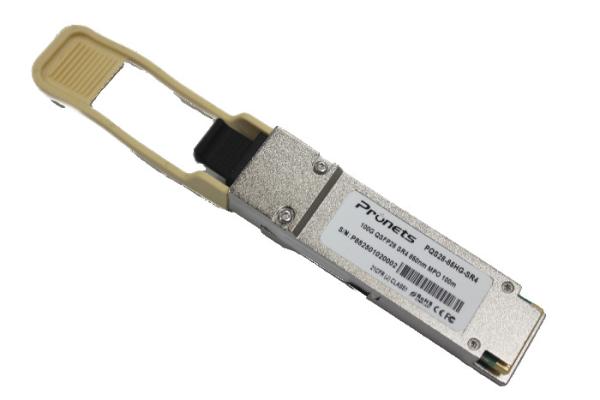

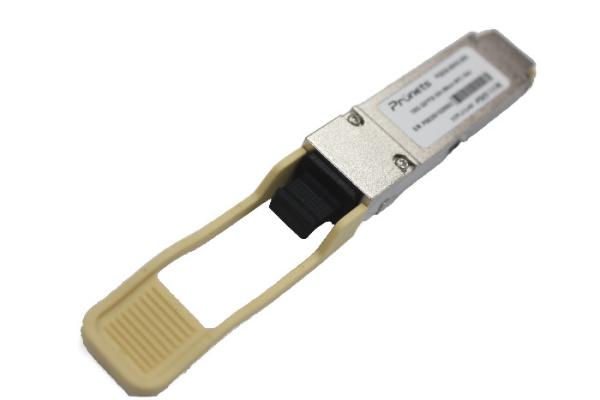

100m Reach Multi Mode Transceiver 100G QSFP28 Module 850nm VCSEL Transmitter
100m Reach Multi Mode Transceiver 100G QSFP28 Module 850nm VCSEL Transmitter
100m Reach Multi Mode Transceiver 100G QSFP28 Module 850nm VCSEL Transmitter
100m Reach Multi Mode Transceiver 100G QSFP28 Module 850nm VCSEL Transmitter
100m Reach Multi Mode Transceiver 100G QSFP28 Module 850nm VCSEL Transmitter
100m Reach Multi Mode Transceiver 100G QSFP28 Module 850nm VCSEL Transmitter
100m Reach Multi Mode Transceiver 100G QSFP28 Module 850nm VCSEL Transmitter
100m Reach Multi Mode Transceiver 100G QSFP28 Module 850nm VCSEL Transmitter
100m Reach Multi Mode Transceiver 100G QSFP28 Module 850nm VCSEL Transmitter
100m Reach Multi Mode Transceiver 100G QSFP28 Module 850nm VCSEL Transmitter
100m Reach Multi Mode Transceiver 100G QSFP28 Module 850nm VCSEL Transmitter
100m Reach Multi Mode Transceiver 100G QSFP28 Module 850nm VCSEL Transmitter
Specifications
Brand Name :
Pronets or OEM
Model Number :
PQS-85HG-SR4I
Certification :
UL FCC RoHS FDA
Place of Origin :
China
MOQ :
1pcs
Price :
US $
Payment Terms :
T/T
Supply Ability :
10000pcs/day
Packaging Details :
plastic containers
type :
fiber optical active passive product
keyword :
optical transceiver/Network switch/Media converter
Description
PQS-85HG-SR4I 100Gbps QSFP28 Transceiver, Multi Mode, 100m Reach
DESCRIPTION
QFP-MM85HG-S1DC is 100Gb/s QSFP28 SR4 transceiver. It is compliant with the QSFP28 MSA
and IEEE 802.3bm. QSFP28 SR4 is an assembly of four full-duplex lanes, where each lane is
capable of transmitting data at rates up to 25.78Gb/s, providing an aggregated rate of 103.125Gb/s.
FEATURES
Four-channel full-duplex transceiver
25.78Gb/s data rate per channel
Maximum link length of 70m on OM3(MMF) ,100m on OM4 (MMF)
Power dissipation < 2.5W
Built-in digital diagnostic functions
Built-in CDR
850nm VCSEL transmitter
Good EMI performance
Single 3.3V power supply
RoHS compliant
Operating case temperature: -40 to +85°C
APPLICATION
100GBASE-SR4 100G Ethernet
High-speed interconnects within/between switches, routers and transport equipment
Server-server clusters
Super-computinginterconnections
Interconnects rack-to-rack, shelf-to-shelf, board-to-board, board-to-optical backplane
