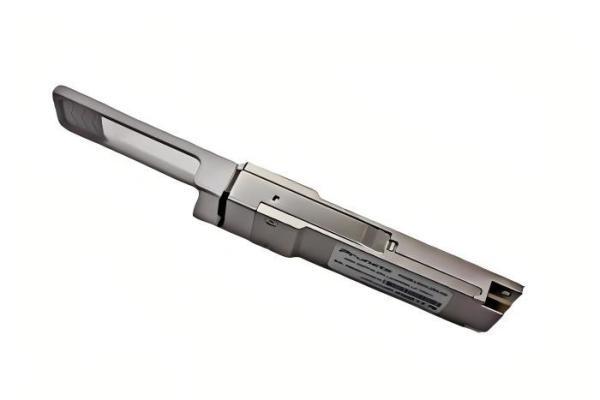

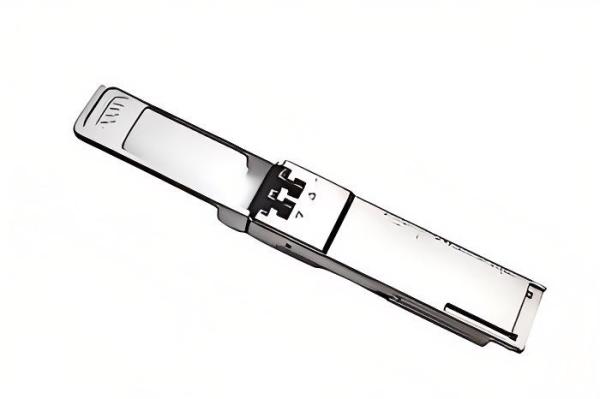

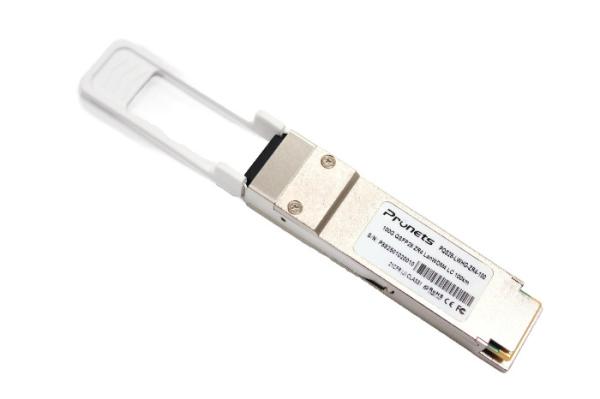

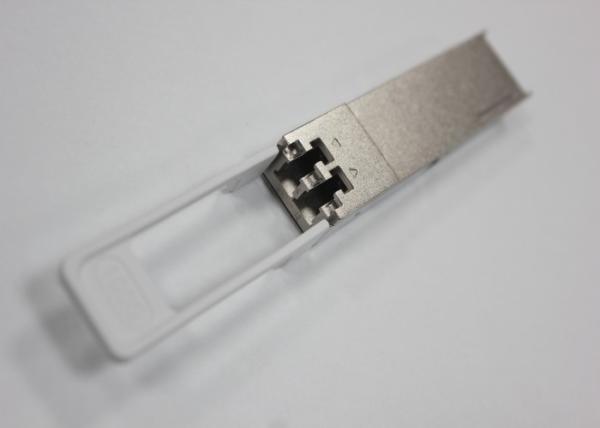

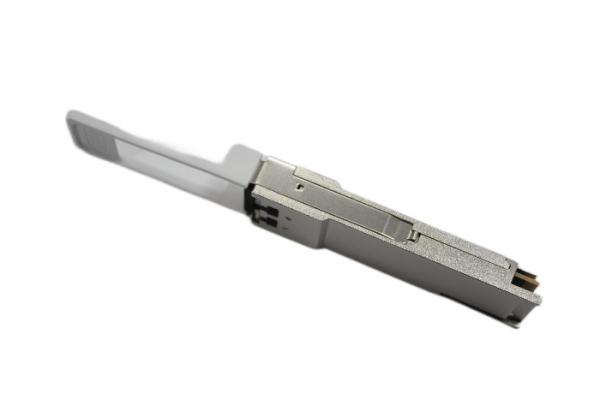

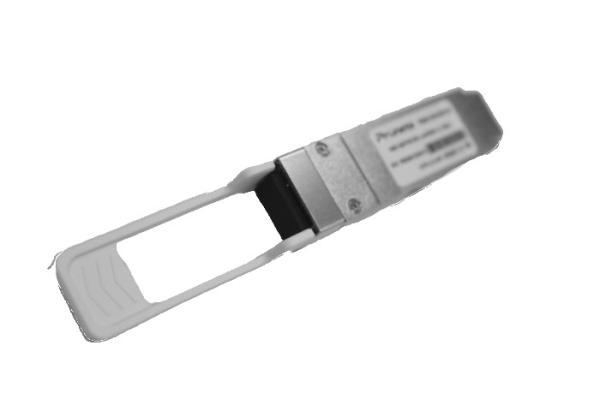

PQS28-LWHG-ZR4-100 100km Reach 100Gbps QSFP28 Transceiver Single Mode
PQS28-LWHG-ZR4-100 100km Reach 100Gbps QSFP28 Transceiver Single Mode
PQS28-LWHG-ZR4-100 100km Reach 100Gbps QSFP28 Transceiver Single Mode
PQS28-LWHG-ZR4-100 100km Reach 100Gbps QSFP28 Transceiver Single Mode
PQS28-LWHG-ZR4-100 100km Reach 100Gbps QSFP28 Transceiver Single Mode
PQS28-LWHG-ZR4-100 100km Reach 100Gbps QSFP28 Transceiver Single Mode
PQS28-LWHG-ZR4-100 100km Reach 100Gbps QSFP28 Transceiver Single Mode
PQS28-LWHG-ZR4-100 100km Reach 100Gbps QSFP28 Transceiver Single Mode
PQS28-LWHG-ZR4-100 100km Reach 100Gbps QSFP28 Transceiver Single Mode
PQS28-LWHG-ZR4-100 100km Reach 100Gbps QSFP28 Transceiver Single Mode
PQS28-LWHG-ZR4-100 100km Reach 100Gbps QSFP28 Transceiver Single Mode
PQS28-LWHG-ZR4-100 100km Reach 100Gbps QSFP28 Transceiver Single Mode
Specifications
Brand Name :
Pronets or OEM
Model Number :
PQS28-LWHG-ZR4-100
Certification :
UL FCC RoHS FDA
Place of Origin :
China
MOQ :
1pcs
Price :
US $
Payment Terms :
T/T
Supply Ability :
10000pcs/day
Packaging Details :
plastic containers
type :
fiber optical active passive product
keyword :
optical transceiver/Network switch/Media converter
Description
PQS28-LWHG-ZR4-100 100Gbps QSFP28 Transceiver, Single Mode, 100km Reach
FEATURES
Support line rates from 103.125 Gb/s
Lane bit rate 25.78 Gb/s 100GE
Up to 100km transmission with KR4-FEC
LAN WDM EML laser and PIN receiver with SOA
Support Multi-Pin function with IntL/RxLOSL and LPMode/TxDIS
High speed I/O electrical interface (CAUI-4)
I2C interface with integrated Digital Diagnostic monitoring
QSFP28 MSA package with duplex LC connector
Single +3.3V power supply
Maximum power consumption 6 W
Complies with EU Directive 2015/863/EU
Operating case temperature: 0 to +70 °C
APPLICATIONS
100GBASE-ZR4 Ethernet
100G Datacom& Telecom connections
