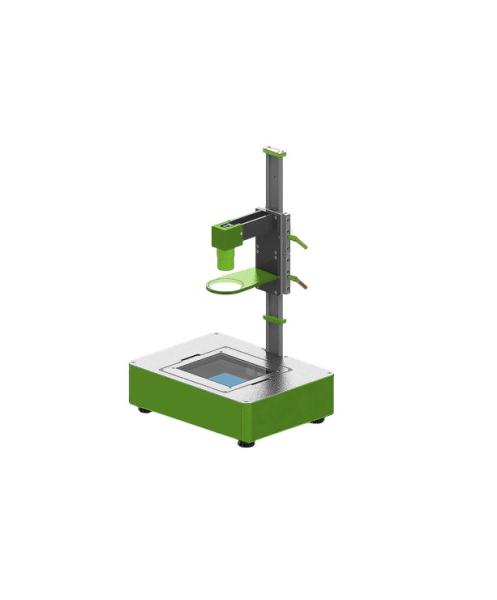

Light Guide Plate Display Component Stress Magnitude Birefringence Detection Equipment
Light Guide Plate Display Component Stress Magnitude Birefringence Detection Equipment
Specifications
Brand Name :
ZEIT
Model Number :
SBD-LGP-X—X
Certification :
Case by case
Place of Origin :
Chengdu, P.R.CHINA
MOQ :
1set
Price :
Case by case
Payment Terms :
T/T
Supply Ability :
Case by case
Delivery Time :
Case by case
Packaging Details :
Wooden case
Size :
Customizable
Customizable :
Available
Guarantee period :
1 year or case by case
Shipping Terms :
By Sea / Air / Multimodal Transport, etc
Description

Light Guide plate Stress Birefringence Detection Equipment

Applications

VIS-visible

 Light guide plate, display component

Working Principle

Due to uneven cooling or other reasons such as mechanical action, an internal stress inside transparent substance

is produced, resulting in birefringence. Crystal substance itself has optical characteristics of birefringence. When

light penetrates a transparent substance with birefringent property, the polarization state of light will change. In other

words, the birefringence of the substance can be evaluated by comparing the light polarization states before and after

the light penetrates the object.

Features

Model

SBD-LGP-X—X
Working mode Real-time measurement
Function Stress magnitude, stress distribution
Detection wave band VIS-520nm, 590nm, 650nm
Test range 1~110nm& 1~280nm
Spatial resolution 0.05mm
Test repeatability 0.1nm
Measurement frequency >15FPS

Note: Customized production available.

Detection Images

Light Guide Plate Display Component Stress Magnitude Birefringence Detection EquipmentLight Guide Plate Display Component Stress Magnitude Birefringence Detection Equipment

Light Guide Plate Display Component Stress Magnitude Birefringence Detection EquipmentLight Guide Plate Display Component Stress Magnitude Birefringence Detection Equipment
