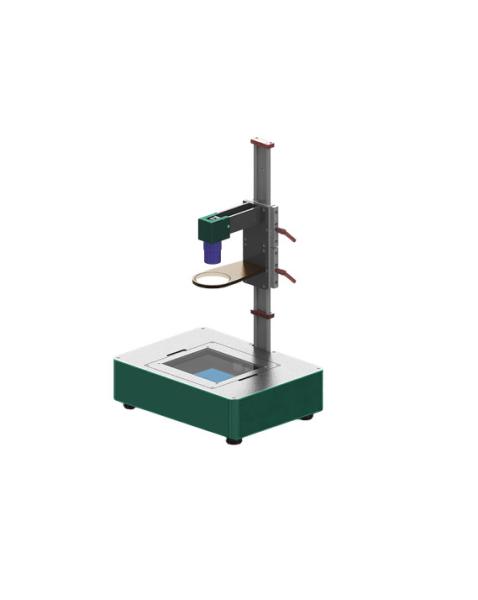

VIS Stress PET PMMA Birefringence Detection Measurement Equipment
VIS Stress PET PMMA Birefringence Detection Measurement Equipment
Specifications
Brand Name :
ZEIT
Model Number :
SBD-VIS-X—X
Certification :
Case by case
Place of Origin :
Chengdu, P.R.CHINA
MOQ :
1set
Price :
Case by case
Payment Terms :
T/T
Supply Ability :
Case by case
Delivery Time :
Case by case
Packaging Details :
Wooden case
Size :
Customizable
Customizable :
Available
Guarantee period :
1 year or case by case
Shipping Terms :
By Sea / Air / Multimodal Transport, etc
Description

VIS Stress Birefringence Detection Equipment

Applications

VIS-visible

 Lens, optical raw material, film
Automotive industry: windshield, vehicle-mounted glass
Transparent resin
PET PMMA
Glass substrate, quartz glass, sapphire
Stress sample testing before and after coating
Food and drug and high-end glass jigs, minerals
Light guide plate, display component

Working Principle
In the process of measurement, we can measure the sample in view once to fully master the stress distribution.

Quantize measurement results.Two-dimensional charts allow reading data more intuitively .

Features

Model

SBD-VIS-X—X
Working mode Real-time measurement
Function Stress magnitude, stress distribution
Detection wave band VIS-520nm, 590nm, 650nm
Test range 1~110nm& 1~280nm
Spatial resolution 0.05mm
Test repeatability 0.1nm
Measurement frequency >15FPS

Note: Customized production available.

Detection Images

VIS Stress PET PMMA Birefringence Detection Measurement EquipmentVIS Stress PET PMMA Birefringence Detection Measurement Equipment

VIS Stress PET PMMA Birefringence Detection Measurement EquipmentVIS Stress PET PMMA Birefringence Detection Measurement Equipment

Our Advantages

We are manufacturer.

Mature process.

Reply within 24 working hours.

Our ISO Certification

VIS Stress PET PMMA Birefringence Detection Measurement Equipment

Parts Of Our Patents

VIS Stress PET PMMA Birefringence Detection Measurement EquipmentVIS Stress PET PMMA Birefringence Detection Measurement Equipment

Parts Of Our Awards and Qualifications of R&D

VIS Stress PET PMMA Birefringence Detection Measurement EquipmentVIS Stress PET PMMA Birefringence Detection Measurement Equipment
