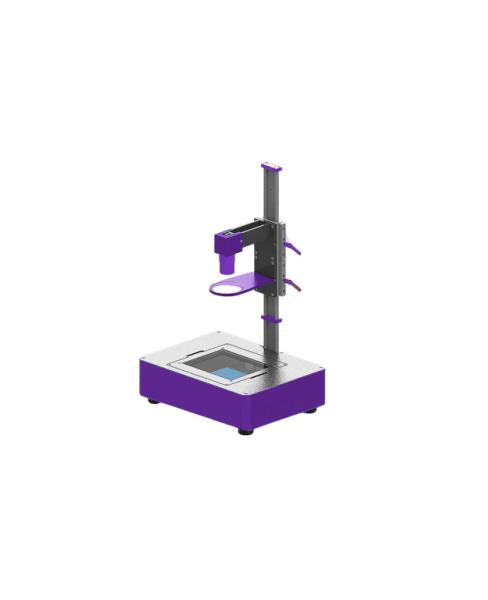

Transparent Substance Stress Birefringence Detection Equipment 590nm
Transparent Substance Stress Birefringence Detection Equipment 590nm
Specifications
Brand Name :
ZEIT
Model Number :
SBD-TS-X—X
Certification :
Case by case
Place of Origin :
Chengdu, P.R.CHINA
MOQ :
1set
Price :
Case by case
Payment Terms :
T/T
Supply Ability :
Case by case
Delivery Time :
Case by case
Packaging Details :
Wooden case
Size :
Customizable
Customizable :
Available
Guarantee period :
1 year or case by case
Shipping Terms :
By Sea / Air / Multimodal Transport, etc
Description

Transparent Substance Stress Birefringence Detection Equipment

Applications

VIS-visible

Transparent Substance.

Such as glass substrate, quartz glass, sapphire.

Working Principle

An instrument that checks the internal stress in the transparent substance or the birefringence effect of crystals based

on the principle of polarized light interference.

Features

Model

SBD-TS-X—X
Working mode Real-time measurement
Function Stress magnitude, stress distribution
Detection wave band VIS-520nm, 590nm, 650nm
Test range 1~110nm & 1~280nm
Spatial resolution 0.05mm
Test repeatability 0.1nm
Measurement frequency >15FPS

Note: Customized production available.

Detection Images

Transparent Substance Stress Birefringence Detection Equipment 590nmTransparent Substance Stress Birefringence Detection Equipment 590nm

Transparent Substance Stress Birefringence Detection Equipment 590nmTransparent Substance Stress Birefringence Detection Equipment 590nm

Our Advantages

We are manufacturer.

Mature process.

Reply within 24 working hours

Our ISO Certification

Transparent Substance Stress Birefringence Detection Equipment 590nm

Parts Of Our Patents

Transparent Substance Stress Birefringence Detection Equipment 590nmTransparent Substance Stress Birefringence Detection Equipment 590nm

Parts Of Our Awards and Qualifications of R&D

Transparent Substance Stress Birefringence Detection Equipment 590nmTransparent Substance Stress Birefringence Detection Equipment 590nm
