Mitsubishi MR-J2S-40B 0.4KW AC Servo Drive Melservo J2S Series
Mitsubishi MR-J2S-40B 0.4KW AC Servo Drive Melservo J2S Series
Mitsubishi MR-J2S-40B 0.4KW AC Servo Drive Melservo J2S Series
Mitsubishi MR-J2S-40B 0.4KW AC Servo Drive Melservo J2S Series
Mitsubishi MR-J2S-40B 0.4KW AC Servo Drive Melservo J2S Series
Mitsubishi MR-J2S-40B 0.4KW AC Servo Drive Melservo J2S Series
Specifications
Brand Name :
Siemens
Model Number :
MR-J2S-40B
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Delivery Time :
2-3 days
Product Name :
PLC Industrial Control
Part Number :
MR-J2S-40B
Shipment :
DHL
Condition :
New
Lead Time :
2-3 days
Warranty :
1 year
Keywords :
MR-J2S-40B
Description
Sinamics MR-J2S-40B Overview
Mitsubishi MR-J2S-40B is a high-performance AC servo drive of the Melservo J2S series, with a rated output power of 0.4KW. It supports 200-230V AC single/three-phase input and features built-in dynamic brake and natural cooling design, ensuring stable operation in industrial environments with 0~+55℃ operating temperature. Adopting sine wave PWM and current control technology, it is equipped with real-time auto-tuning and automatic motor type recognition, matching with HC-KFS series servo motors to achieve precise and efficient motion control.

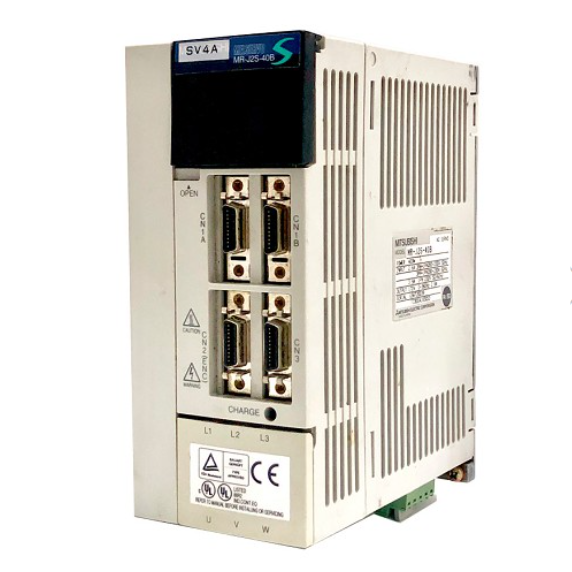

Figure 1 shows the front panel of MR-J2S-40B.

Mitsubishi MR-J2S-40B 0.4KW AC Servo Drive Melservo J2S Series












Mitsubishi MR-J2S-40B 0.4KW AC Servo Drive Melservo J2S Series


















Quick Specs.

Table 1 shows the Quick Specs.

Item Specification
Brand Mitsubishi Electric
Rated Power 0.4KW/400W
Input Voltage 200-230V AC (1/3 Phase)
Operating Temp 0~+55℃
Dimension 168×70×135mm
Net Weight 1.1kg/2.43lbs




Detailed Specification

English Parameter Table


Parameter Category Details
Basic Information Brand: Mitsubishi Electric

Series: Melservo J2S

Type: AC Servo Drive/Amplifier

Part Number: MR-J2S-40B
Electrical Parameters Rated Output Power: 0.4KW/400W

Input Voltage: 200-230V AC (50/60Hz, 1/3 Phase optional)

Output Voltage: 170V AC

Output Frequency: 0-360Hz

Auxiliary Power Consumption: 50W

Regenerative Resistor Power: 10W
Control Performance Control Method: Sine wave PWM/Current control

Auto-tuning: Real-time auto-tuning

Encoder Resolution: 131072 pulses/rotation

Load Inertia Moment Ratio: 30 times

Communication: SSCNET III/H, RS232/RS485
Mechanical Parameters Dimensions (H×W×D): 168mm×70mm×135mm

Net Weight: 1.1kg (2.43lbs)

Mounting: M4 mounting screw
Environmental Parameters Operating Temperature: 0~+55℃

Storage Temperature: -20~+65℃

Humidity: ≤90%RH (no condensation)

Protection Grade: IP00
Protection Functions Overcurrent/overload/undervoltage shut-off

Servo motor overheat protection

Encoder/regeneration fault protection

Overspeed/excessive error protection

Sudden power outage protection
Compatible Motors HC-KFS-43, HC-MFS-43, HC-UFS-43 (3000r/min)
Interface 1×Digital Input (24VDC)

1×Digital Relay Output

2×Analog Output (-10~+10VDC)
Mitsubishi MR-J2S-40B 0.4KW AC Servo Drive Melservo J2S Series
Mitsubishi MR-J2S-40B 0.4KW AC Servo Drive Melservo J2S Series
