Mitsubishi MR-J4-20A AC Servo Drive 0.2KW 200-240V High Precision Servo Amplifier
Mitsubishi MR-J4-20A AC Servo Drive 0.2KW 200-240V High Precision Servo Amplifier
Mitsubishi MR-J4-20A AC Servo Drive 0.2KW 200-240V High Precision Servo Amplifier
Mitsubishi MR-J4-20A AC Servo Drive 0.2KW 200-240V High Precision Servo Amplifier
Mitsubishi MR-J4-20A AC Servo Drive 0.2KW 200-240V High Precision Servo Amplifier
Mitsubishi MR-J4-20A AC Servo Drive 0.2KW 200-240V High Precision Servo Amplifier
Specifications
Brand Name :
Siemens
Model Number :
MR-J4-20A
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Delivery Time :
2-3 days
Product Name :
PLC Industrial Control
Part Number :
MR-J4-20A
Shipment :
DHL
Condition :
New
Lead Time :
2-3 days
Warranty :
1 year
Keywords :
MR-J4-20A
Description
Sinamics MR-J4-20A Overview
Mitsubishi MR-J4-20A is a high-performance general-purpose AC servo drive of the MELSERVO J4 series, designed for 0.2KW servo motor applications. It supports single/three-phase AC 200-240V input and features a 2.5kHz high-speed frequency response with a 4,194,304 pulses/rev high-resolution absolute encoder, enabling ultra-precise position, speed and torque control. The servo drive is equipped with one-touch auto-tuning and advanced vibration suppression functions, which can quickly complete gain adjustment and effectively reduce mechanical resonance, improving system stability and operation efficiency.

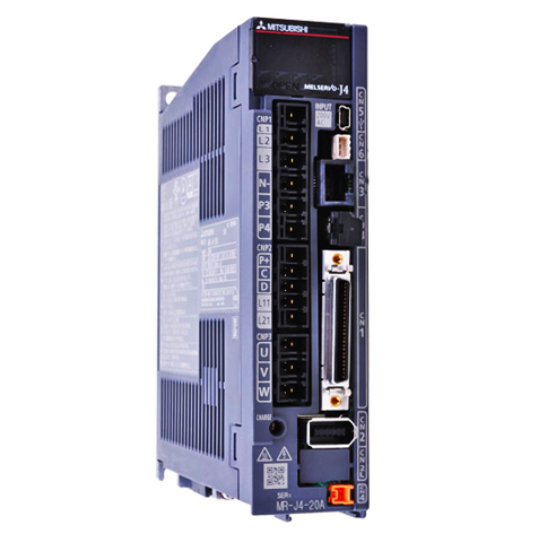

Figure 1 shows the front panel of MR-J4-20A.

Mitsubishi MR-J4-20A AC Servo Drive 0.2KW 200-240V High Precision Servo Amplifier











Mitsubishi MR-J4-20A AC Servo Drive 0.2KW 200-240V High Precision Servo Amplifier


















Quick Specs.

Table 1 shows the Quick Specs.

Item Specification
Brand Mitsubishi Electric
Series MELSERVO J4
Rated Power 0.2KW/200W
Input Voltage AC 200-240V (1/3 Phase)
Rated Current 1.5A




Detailed Specification
Parameter Details
Power Specification Rated Output: 0.2KW/200W; Rated Current: 1.5A; Power Consumption: 45W
Input Voltage Main Circuit: AC 200-240V 50/60Hz (1/3 Phase); Control Circuit: AC 200-240V 50/60Hz
Interface Power 24V DC±10%, 0.5A (Including CN8 Connector Signal)
Control Performance Speed Frequency Response: 2.5kHz; Max Command Pulse Frequency: 4M pulses/s; Encoder Resolution: 4,194,304 pulses/rev
Communication RS-422/RS-485; USB (for debugging)
Protection Class IP20
Working Temperature 0 ~ +55℃
Control Modes Position, Speed, Torque control (switchable)
Built-in Components Dynamic brake, Regenerative resistor
Mitsubishi MR-J4-20A AC Servo Drive 0.2KW 200-240V High Precision Servo Amplifier
Mitsubishi MR-J4-20A AC Servo Drive 0.2KW 200-240V High Precision Servo Amplifier
