Sinamics QR12038HBL Overview
The QR12038HBL is a 120×120×38mm industrial axial cooling fan with dual ball bearing structure, designed for reliable long-term operation in electrical cabinets, welding machines and control panels. It runs on AC 220–240V power supply, delivering stable airflow with low noise and strong durability. This fan features impedance protection and Class B insulation, meeting industrial safety standards for continuous cooling. It is widely used in network cabinets, electrical enclosures and industrial equipment for efficient heat dissipation.

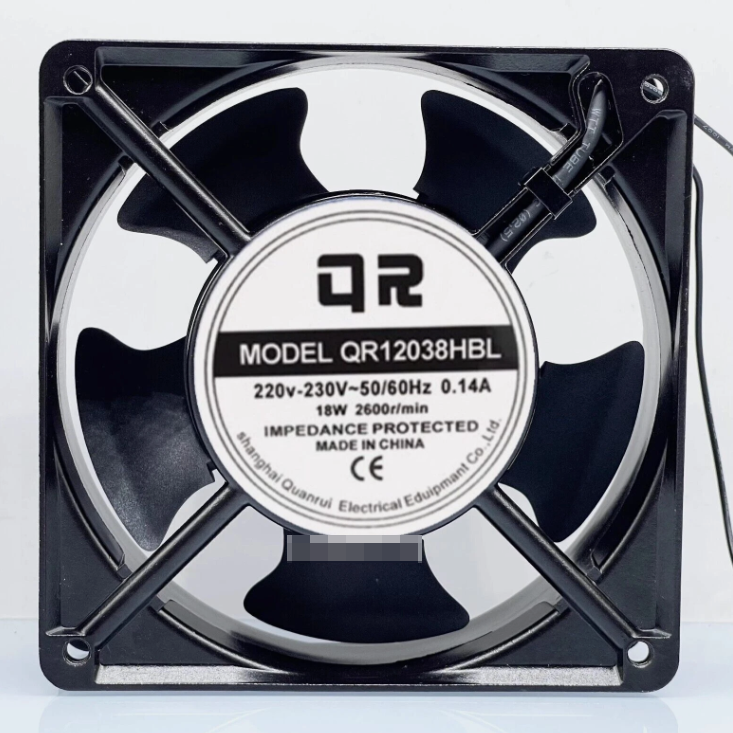

Figure 1 shows the front panel of QR12038HBL.

QR12038HBL 120mm Axial Cooling Fan | Ball Bearing Cabinet Fan












QR12038HBL 120mm Axial Cooling Fan | Ball Bearing Cabinet Fan















Quick Specs.

Table 1 shows the Quick Specs

Item Value
Model QR12038HBL
Type Axial Flow Fan
Size 120×120×38mm
Bearing Dual Ball Bearing
Voltage AC 220/240V
Application Cabinet, Welding Machine, Industrial








Detailed Specification
Parameter Specification
Model Number QR12038HBL
Dimension 120mm × 120mm × 38mm
Type AC Axial Cooling Fan
Bearing Dual Ball Bearing (HBL)
Rated Voltage AC 220V–240V
Frequency 50/60Hz
Speed 2700–3100 RPM
Air Flow 2.6–3.3 m³/min
Noise 43–46 dB(A)
Power ~22W
Protection Impedance Protected
Insulation Class Class B
Working Temp -10°C to +60°C
Certifications CE
Application Network Cabinet, Electrical Panel, Welding Machine
