Omron NX-OD4121 8-Point NPN Transistor Output Unit for NX I/O System
Omron NX-OD4121 8-Point NPN Transistor Output Unit for NX I/O System
Omron NX-OD4121 8-Point NPN Transistor Output Unit for NX I/O System
Omron NX-OD4121 8-Point NPN Transistor Output Unit for NX I/O System
Omron NX-OD4121 8-Point NPN Transistor Output Unit for NX I/O System
Omron NX-OD4121 8-Point NPN Transistor Output Unit for NX I/O System
Specifications
Brand Name :
Siemens
Model Number :
NX-OD4121
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Delivery Time :
2-3 days
Product Name :
PLC Industrial Control
Part Number :
NX-OD4121
Shipment :
DHL
Condition :
New
Lead Time :
2-3 days
WQR12038HBL :
1 year
Keywords :
NX-OD4121
Description
Sinamics NX-OD4121 Overview

The NX-OD4121 is a compact 8‑point NPN transistor output module for the Omron NX I/O system, designed for high‑speed, stable machine control. It supports both synchronous and free‑run I/O refreshing, ensuring precise timing matching with controller cycles. With a space‑saving 12mm width, detachable push‑in terminals, and built‑in short‑circuit protection, it simplifies wiring, maintenance, and system integration. Operating at 12–24VDC with 0.5A per output, it is widely used in factory automation, assembly lines, and motion control systems for reliable digital signal output.

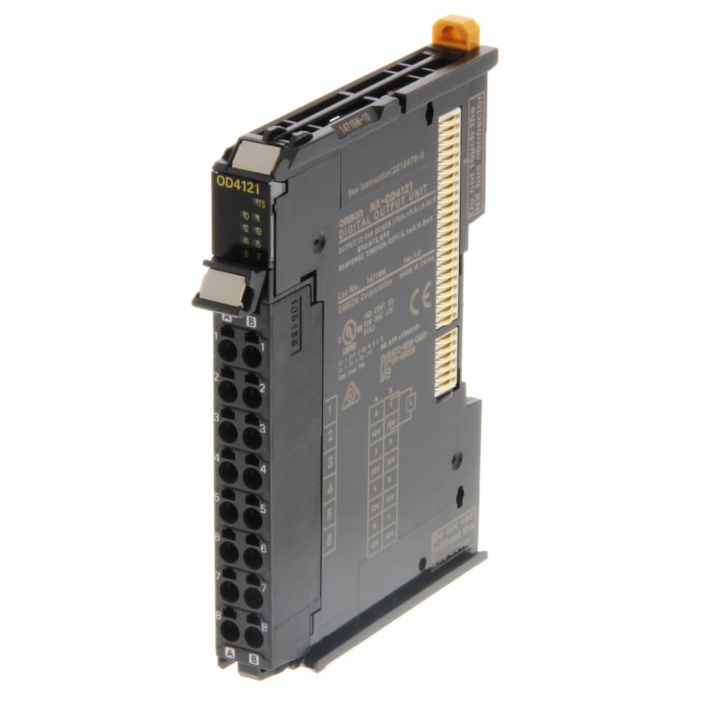

Figure 1 shows the front panel of NX-OD4121.

Omron NX-OD4121 8-Point NPN Transistor Output Unit for NX I/O System










Omron NX-OD4121 8-Point NPN Transistor Output Unit for NX I/O System














Quick Specs.

Table 1 shows the Quick Specs

Item Specification
Model NX-OD4121
Output Type NPN Transistor
Output Points 8
Rated Voltage DC12–24V
Current 0.5A/point, 4A/unit
Response Time 0.1ms / 0.8ms
Connector Push‑in, detachable
Width 12mm











Detailed Specification
Parameter Value
Product Type Digital Output Unit
Series NX I/O
Output Configuration 8-point NPN
Supply Voltage DC10.2–28.8V
Load Current 0.5 A per point, max.4 A per unit
Leakage Current ≤0.1 mA
Residual Voltage ≤1.5 V
Response Time (ON/OFF) ≤0.1 ms / ≤0.8 ms
I/O Refresh Synchronous & Free‑Run
Connection Push‑in terminal, detachable
Isolation Photocoupler
Dimensions (W×H×D) 12 × 100 × 71 mm
Mounting DIN rail
Protection Short‑circuit
Weight Approx.70 g
Standards RoHS
