Siemens 6ES7155-5AA01-0AB0 SIMATIC ET200MP IM155-5 PN ST PROFINET Interface Module
Siemens 6ES7155-5AA01-0AB0 SIMATIC ET200MP IM155-5 PN ST PROFINET Interface Module
Siemens 6ES7155-5AA01-0AB0 SIMATIC ET200MP IM155-5 PN ST PROFINET Interface Module
Siemens 6ES7155-5AA01-0AB0 SIMATIC ET200MP IM155-5 PN ST PROFINET Interface Module
Siemens 6ES7155-5AA01-0AB0 SIMATIC ET200MP IM155-5 PN ST PROFINET Interface Module
Siemens 6ES7155-5AA01-0AB0 SIMATIC ET200MP IM155-5 PN ST PROFINET Interface Module
Specifications
Brand Name :
Siemens
Model Number :
6ES7155-5AA01-0AB0
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Delivery Time :
2-3 days
Product Name :
PLC Industrial Control
Part Number :
6ES7155-5AA01-0AB0
Shipment :
DHL
Condition :
New
Lead Time :
2-3 days
WQR12038HBL :
1 year
Keywords :
6ES7155-5AA01-0AB0
Description
Sinamics 6ES7155-5AA01-0AB0 Overview

The 6ES7155-5AA01-0AB0 is a PROFINET IO interface module from Siemens, belonging to the SIMATIC ET200MP series, model IM 155-5 PN ST. It serves as the communication core for connecting the ET200MP I/O system to higher‑level controllers via PROFINET IO.

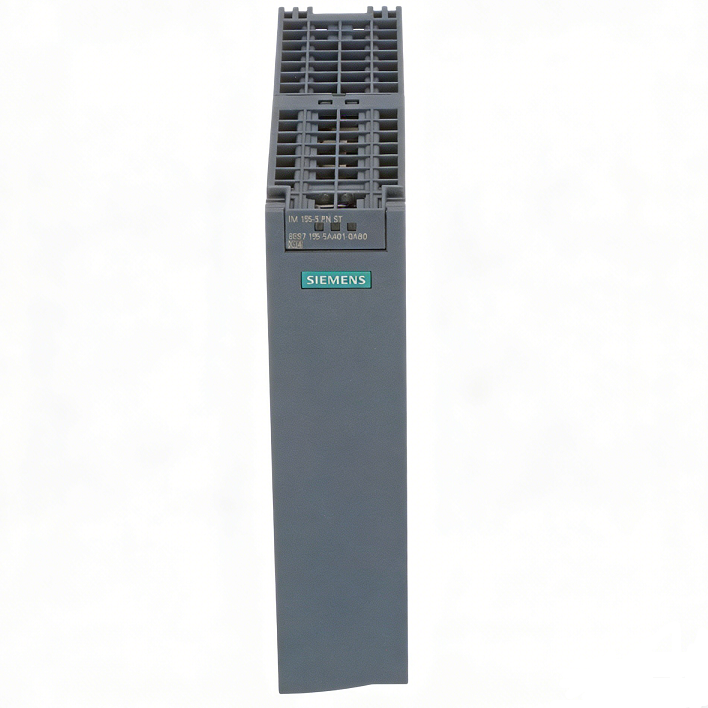

Figure 1 shows the front panel of 6ES7155-5AA01-0AB0.

Siemens 6ES7155-5AA01-0AB0 SIMATIC ET200MP IM155-5 PN ST PROFINET Interface Module












Siemens 6ES7155-5AA01-0AB0 SIMATIC ET200MP IM155-5 PN ST PROFINET Interface Module













Quick Specs.

Table 1 shows the Quick Specs

Item Details
Part Number 6ES7155-5AA01-0AB0
Brand Siemens
Series SIMATIC ET200MP
Type Interface Module IM155-5 PN ST
Communication PROFINET IO, 2-port RJ45, 100Mbps
Supply Voltage 24 V DC (19.2–28.8 V DC)
I/O Capacity Up to 30 I/O modules
Dimensions 35×129×147 mm
Operating Temp -25 … +60 °C








Detailed Specification
Parameter Specification
Order Number 6ES7155-5AA01-0AB0
Product Name IM 155-5 PN ST Interface Module
System Compatibility SIMATIC ET200MP, S7‑1500
Communication Interface PROFINET IO Device; 2×RJ45; 10/100 Mbps
Functions IRT, MRP, Shared Device, Isochronous mode
Update Time ≥0.25 ms
Nominal Voltage 24 V DC
Voltage Range 19.2 V DC … 28.8 V DC
Current Consumption (rated) 0.2 A
Inrush Current (max) 9 A
Backplane Power 14 W
I/O Modules Max. 30 modules (with external PS)
Process Image Input: 1024 byte; Output: 1024 byte
Electrical Isolation No
Protection Reverse polarity, short‑circuit protection
Dimensions (W×D×H) 35 mm × 129 mm × 147 mm
Weight Approx. 0.26 kg
Protection Degree IP20
Operating Temperature -25 … +60 °C
Certifications CE, UL, IEC 61131‑2


Siemens 6ES7155-5AA01-0AB0 SIMATIC ET200MP IM155-5 PN ST PROFINET Interface Module
Siemens 6ES7155-5AA01-0AB0 SIMATIC ET200MP IM155-5 PN ST PROFINET Interface Module
