Sinamics 6ES7135-6HD00-0BA1 Overview

The 6ES7135-6HD00-0BA1 is a high-precision 4-channel analog output module for the SIMATIC ET 200SP distributed I/O system. It supports configurable voltage and current signals with 16-bit resolution and high accuracy, ideal for precise control in industrial automation. Featuring integrated diagnostics, electrical isolation, and compatibility with base units A0/A1 (color code CC00), it ensures reliable operation, easy installation, and minimal downtime in factory automation and process control applications.

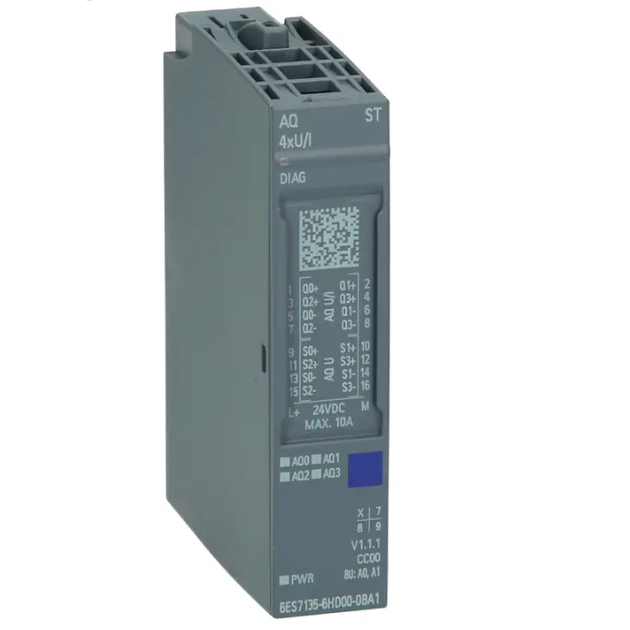

Figure 1 shows the front panel of 6ES7135-6HD00-0BA1.

Siemens 6ES7135-6HD00-0BA1 SIMATIC ET 200SP Analog Output Module AQ 4xU/I ST










Siemens 6ES7135-6HD00-0BA1 SIMATIC ET 200SP Analog Output Module AQ 4xU/I ST














Quick Specs.

Table 1 shows the Quick Specs

Item Specification
Part Number 6ES7135-6HD00-0BA1
Type Analog Output Module, AQ 4xU/I ST
Series SIMATIC ET 200SP
Channels 4 analog outputs (U/I)
Resolution 16 bit
Supply Voltage 24 V DC
Color Code CC00
Compatible Base Unit Type A0, A1








Detailed Specification
Parameter Value
Manufacturer Siemens
Order Number 6ES7135-6HD00-0BA1
Product Name SIMATIC ET 200SP Analog Output Module
Model Designation AQ 4xU/I Standard
Number of Analog Outputs 4
Output Signal Types ±10 V, 0–10 V, 0–20 mA, 4–20 mA
Resolution 16 bit
Basic Accuracy (25 °C) ±0.3 % of output range
Operating Temperature -30 °C … +60 °C (horizontal); -30 °C … +50 °C (vertical)
Isolation Channel-to-backplane: yes; Channel-to-power supply: yes
Diagnostics Module diagnostics, wire-break, short-circuit monitoring
Dimensions (W x H x D) 15 mm x 73 mm x 58 mm
Protection Class IP20
Mounting DIN rail
