GL070E 7 HMI Display 800x480 Ethernet USB RS232 RS485 Industrial Human Machine Interface
GL070E 7 HMI Display 800x480 Ethernet USB RS232 RS485 Industrial Human Machine Interface
GL070E 7 HMI Display 800x480 Ethernet USB RS232 RS485 Industrial Human Machine Interface
GL070E 7 HMI Display 800x480 Ethernet USB RS232 RS485 Industrial Human Machine Interface
GL070E 7 HMI Display 800x480 Ethernet USB RS232 RS485 Industrial Human Machine Interface
GL070E 7 HMI Display 800x480 Ethernet USB RS232 RS485 Industrial Human Machine Interface
Specifications
Brand Name :
Siemens
Model Number :
GL070E
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Delivery Time :
2-3 days
Product Name :
PLC Industrial Control
Part Number :
GL070E
Shipment :
DHL
Condition :
New
Lead Time :
2-3 days
WQR12038HBL :
1 year
Keywords :
GL070E
Description
Sinamics GL070E Overview

GL070E is a 7-inch industrial HMI from Kinco Green Series, equipped with an 800MHz 32-bit ARM processor, 800×480 resolution TFT display, and 4-wire resistive touch panel. It features built-in Ethernet, multiple serial ports, and USB interfaces for stable communication with PLCs and industrial devices. The front panel reaches IP65 protection, suitable for factory automation, machinery control, and intelligent monitoring. GL070E supports program download via USB, U-disk, and Ethernet, and is configured with Kinco DTools software for easy project development.

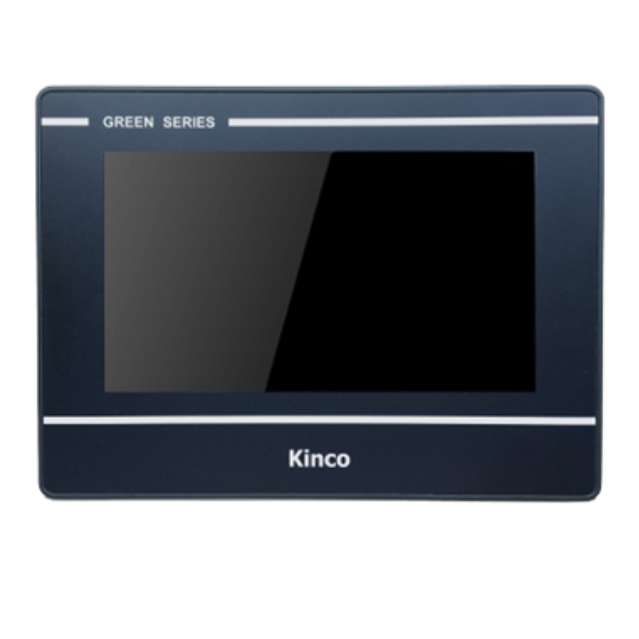

Figure 1 shows the front panel of GL070E.

GL070E 7












GL070E 7













Quick Specs.

Table 1 shows the Quick Specs

Item Specification
Model GL070E
Display 7" TFT, 800×480
Touch 4-wire resistive
CPU 32-bit ARM 800MHz
Interface Ethernet, USB, COM
Power DC 10–28V








Detailed Specification
Category Item Details
Display Screen Size 7" TFT

Resolution 800×480 pixels

Colors 16.77M true color

Brightness 250 cd/m²

Backlight LED, >30000 hrs

Contrast 500:1
Touch Type 4-wire precision resistive

Hardness 4H
System CPU ARM RISC 32Bit 800MHz

Memory 128MB Flash + 128MB DDR3

RTC Built-in real-time clock
I/O & Interface Serial Ports COM0: RS232/485/422; COM2: RS232

Ethernet 10/100M adaptive

USB 1×Host, 1×Slave (Micro)

Printer USB Host / Serial
Power Input DC 10V–28V

Consumption 3.6W@24V

Power loss support <3ms
Mechanical Dimensions 204×150×34 mm

Cutout 192×138 mm

Weight 0.5 kg
Environment Operating Temp 0–50°C

Storage Temp -20–60°C

Humidity 10–90% RH (non-condensing)
Protection Front Panel IP65

Certification CE


GL070E 7
GL070E 7
