Delta DOP-103BQ 4.3 HMI Touch Screen Industrial Control Panel
Delta DOP-103BQ 4.3 HMI Touch Screen Industrial Control Panel
Delta DOP-103BQ 4.3 HMI Touch Screen Industrial Control Panel
Delta DOP-103BQ 4.3 HMI Touch Screen Industrial Control Panel
Delta DOP-103BQ 4.3 HMI Touch Screen Industrial Control Panel
Delta DOP-103BQ 4.3 HMI Touch Screen Industrial Control Panel
Specifications
Brand Name :
Siemens
Model Number :
DOP-103BQ
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Delivery Time :
2-3 days
Product Name :
PLC Industrial Control
Part Number :
DOP-103BQ
Shipment :
DHL
Condition :
New
Lead Time :
2-3 days
WQR12038HBL :
1 year
Keywords :
DOP-103BQ
Description
Sinamics DOP-103BQ Overview

The DOP-103BQ is a compact, high‑performance basic HMI from Delta’s DOP‑100 series, designed for reliable industrial control and monitoring. It features a 4.3‑inch 480×272 TFT touch display with bright LED backlighting, powered by an 800 MHz ARM Cortex‑A8 processor and 256 MB RAM/ROM for smooth operation.

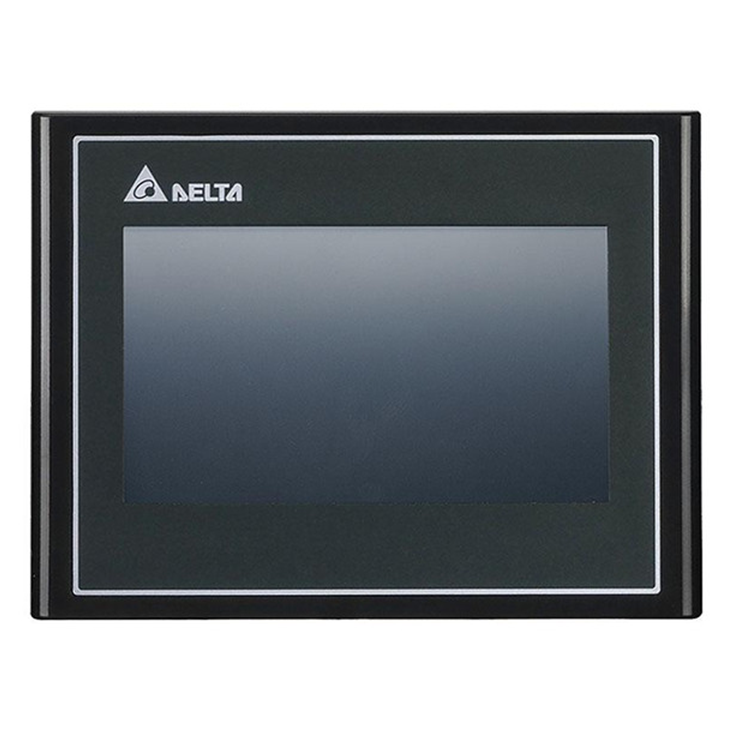

Figure 1 shows the front panel of DOP-103BQ.

Delta DOP-103BQ 4.3










Delta DOP-103BQ 4.3












Quick Specs.

Table 1 shows the Quick Specs

Item Details
Model DOP-103BQ
Display 4.3" TFT LCD, 480×272, 65536 colors
CPU ARM Cortex‑A8 800 MHz
Memory 256 MB RAM, 256 MB Flash ROM
Power 24 VDC
Protection Front IP65










Detailed Specification
Parameter Specification
Model DOP-103BQ
Display Type 4.3" TFT LCD, 16‑bit color (65536 colors)
Resolution 480 × 272 pixels
Brightness 400 cd/m² (Typical)
Backlight LED, lifetime >20,000 hours
Touch Type 4‑wire resistive, lifetime >1,000,000 operations
CPU ARM Cortex‑A8 800 MHz
RAM 256 MB
Flash ROM 256 MB
Serial Ports COM1: RS‑232 / RS‑485; COM2: RS‑422 / RS‑485
USB 1 × USB Host 2.0; 1 × USB Client 2.0
Real‑Time Clock Built‑in
Power Supply 24 VDC (−15% ~ +15%)
Power Consumption 5.6 W
Front Protection IP65
Operating Temp 0 °C ~ +50 °C
Storage Temp −20 °C ~ +60 °C
Dimensions (W×H×D) 137 × 103 × 37.1 mm
Mounting Size 118.8 × 92.8 mm
Weight Approx. 280 g
Certifications CE, UL


Delta DOP-103BQ 4.3
Delta DOP-103BQ 4.3
