Specifications
Brand Name :
Siemens
Model Number :
NX-ECC202
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Delivery Time :
2-3 days
Product Name :
PLC Industrial Control
Part Number :
MT8071IE
Shipment :
DHL
Condition :
New
Lead Time :
2-3 days
WQR12038HBL :
1 year
Keywords :
NX-ECC202
Description
Sinamics NX-ECC202 Overview

The NX‑ECC202 is a high‑performance EtherCAT coupler unit from Omron’s NX Series, designed for reliable, high‑speed remote I/O control in industrial automation systems. It acts as an EtherCAT slave to connect modular NX I/O units into a single network node, supporting fast cycle times down to 250 microseconds and distributed clock synchronization for precise motion and machine control.

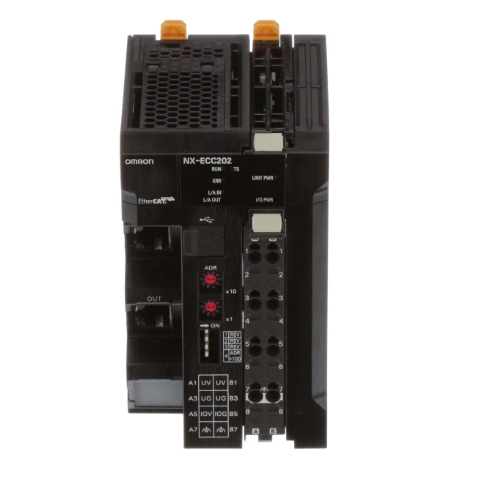

Figure 1 shows the front panel of NX-ECC202.

Omron NX-ECC202 EtherCAT Coupler Unit | NX Series High‑Speed Remote I/O Module










Omron NX-ECC202 EtherCAT Coupler Unit | NX Series High‑Speed Remote I/O Module











Quick Specs.

Table 1 shows the Quick Specs

Item Specification
Product Model NX-ECC202
Brand Omron
Communication EtherCAT Slave
Cycle Time 250 μs – 4 ms
I/O Capacity Up to 63 I/O units
Power Supply 24 VDC (20.4–28.8 VDC)
I/O Current Max 10 A
Ports 2× RJ45
Mounting DIN rail





Detailed Specification
Parameter Details
Product Type EtherCAT Communication Coupler Unit
Series NX Series
Communication Protocol EtherCAT
Baud Rate 100 Mbps
Physical Layer 100BASE‑TX (IEEE 802.3)
Communication Cycle 250 μs to 4 ms
Distributed Clock (DC) Supported
Max Connectable Units 63 NX I/O units
Process Data Input: max 1024 bytes; Output: max 1024 bytes
Supply Voltage 24 VDC nominal (20.4–28.8 VDC)
I/O Power Current Max 10 A
Power Consumption ≤ 1.45 W
Communication Ports 2× RJ45 (EtherCAT In/Out)
Mounting DIN rail mounting
Dimensions (W×H×D) 46 mm × 100 mm × 71 mm
Weight Approx. 0.28 kg
Insulation Between communication and I/O circuits
Operating Temperature -20°C to +55°C
Storage Temperature -40°C to +70°C


Omron NX-ECC202 EtherCAT Coupler Unit | NX Series High‑Speed Remote I/O Module
Omron NX-ECC202 EtherCAT Coupler Unit | NX Series High‑Speed Remote I/O Module
