Omron NX1P2-9024DT1 PLC CPU Module 24 I/O 4-Axis Motion Controller
Omron NX1P2-9024DT1 PLC CPU Module 24 I/O 4-Axis Motion Controller
Omron NX1P2-9024DT1 PLC CPU Module 24 I/O 4-Axis Motion Controller
Omron NX1P2-9024DT1 PLC CPU Module 24 I/O 4-Axis Motion Controller
Omron NX1P2-9024DT1 PLC CPU Module 24 I/O 4-Axis Motion Controller
Omron NX1P2-9024DT1 PLC CPU Module 24 I/O 4-Axis Motion Controller
Specifications
Brand Name :
Siemens
Model Number :
NX1P2-9024DT1
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Delivery Time :
2-3 days
Product Name :
PLC Industrial Control
Part Number :
NX1P2-9024DT1
Shipment :
DHL
Condition :
New
Lead Time :
2-3 days
WQR12038HBL :
1 year
Keywords :
NX1P2-9024DT1
Description
Sinamics NX1P2-9024DT1 Overview

The NX1P2-9024DT1 is a compact Omron Sysmac machine automation controller designed for small‑to‑medium automation equipment. It integrates sequence logic, high‑speed I/O, and motion control in one space‑saving package.

This CPU unit features 14 digital inputs and 10 PNP transistor outputs for direct field connection, plus built‑in EtherCAT and EtherNet/IP for flexible networking and IoT connectivity. It supports 4‑axis point‑to‑point motion control with electronic cam and positioning functions, ideal for packaging, assembly, and material handling machines.

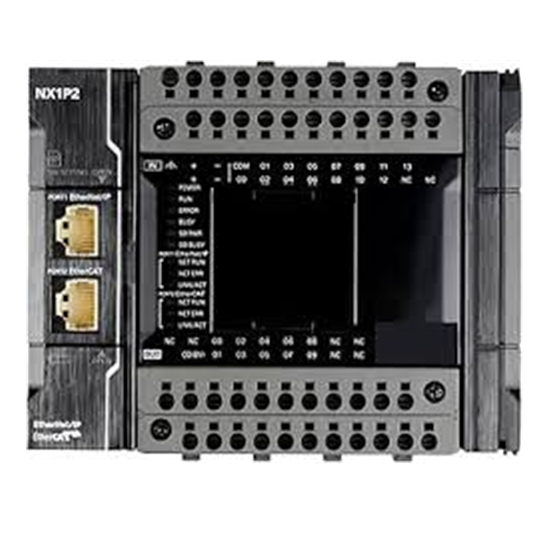

Figure 1 shows the front panel of NX1P2-9024DT1.

Omron NX1P2-9024DT1 PLC CPU Module 24 I/O 4-Axis Motion Controller










Omron NX1P2-9024DT1 PLC CPU Module 24 I/O 4-Axis Motion Controller












Quick Specs.

Table 1 shows the Quick Specs

Item Specification
Model NX1P2-9024DT1
I/O 14 Inputs, 10 Outputs (PNP)
Motion 4-axis PTP control
Memory 1.5MB program, 2MB variables
Power 24VDC, 6.4W
Communication EtherCAT, EtherNet/IP






Detailed Specification
Parameter Details
Model NX1P2-9024DT1
Type Machine Automation Controller CPU
Digital Inputs 14 points (PNP/NPN compatible)
Digital Outputs 10 points (PNP transistor)
Total I/O 24 built‑in points
Motion Control 4 PTP axes; 0 synchronous axes
Task Cycle Time 2 ms
Program Memory 1.5 MB
Variables Memory 2 MB (volatile), 32 KB (retain)
Communication EtherCAT Master, EtherNet/IP, TCP/IP
Ethernet Ports 2
Serial Option 1 slot (RS‑232C/422/485)
Expansion Units Max 8 units
Remote Nodes Max 16 EtherCAT nodes
Power Supply 24 VDC (20.4–28.8 VDC)
Power Consumption 6.40 W
Dimensions 124 × 100 × 71 mm (W×H×D)
Weight Approx. 590 g
Operating Temp 0°C to +55°C
Certifications CE, UL, RoHS


Omron NX1P2-9024DT1 PLC CPU Module 24 I/O 4-Axis Motion Controller
Omron NX1P2-9024DT1 PLC CPU Module 24 I/O 4-Axis Motion Controller
