Omron NX1P2-1040DT1 PLC CPU Module EtherCAT Motion Controller
Omron NX1P2-1040DT1 PLC CPU Module EtherCAT Motion Controller
Omron NX1P2-1040DT1 PLC CPU Module EtherCAT Motion Controller
Omron NX1P2-1040DT1 PLC CPU Module EtherCAT Motion Controller
Omron NX1P2-1040DT1 PLC CPU Module EtherCAT Motion Controller
Omron NX1P2-1040DT1 PLC CPU Module EtherCAT Motion Controller
Specifications
Brand Name :
Siemens
Model Number :
NX1P2-1040DT1
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Delivery Time :
2-3 days
Product Name :
PLC Industrial Control
Part Number :
NX1P2-1040DT1
Shipment :
DHL
Condition :
New
Lead Time :
2-3 days
WQR12038HBL :
1 year
Keywords :
NX1P2-1040DT1
Description
Sinamics NX1P2-1040DT1 Overview

The NX1P2-1040DT1 is a compact machine automation controller from Omron’s Sysmac NX1P series. It integrates logic control and multi-axis motion control in one unit, with built‑in 40 digital I/O points (24 inputs, 16 PNP outputs). Equipped with native EtherCAT and EtherNet/IP, it supports up to 2 synchronous axes and 4 PTP positioning axes for precise motion tasks.

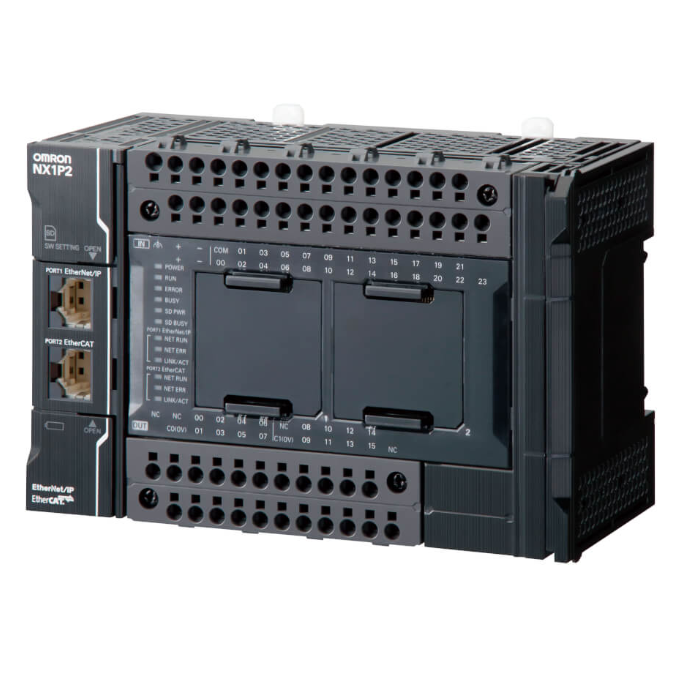

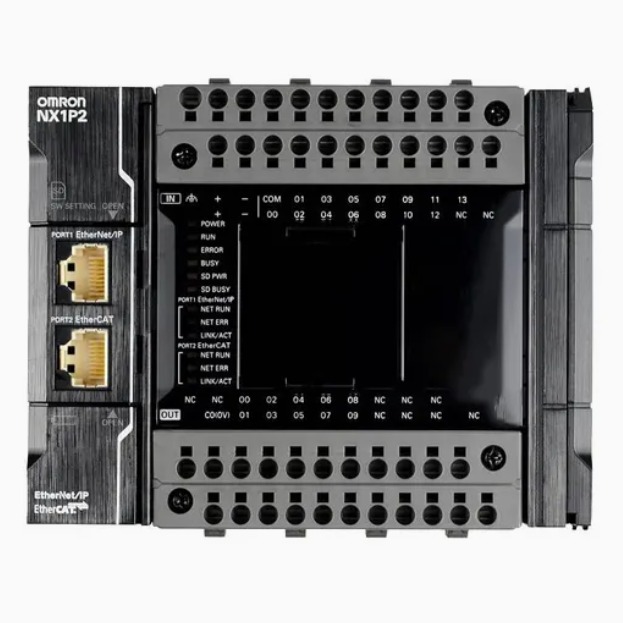

Figure 1 shows the front panel of NX1P2-1040DT1.

Omron NX1P2-1040DT1 PLC CPU Module EtherCAT Motion Controller











Omron NX1P2-1040DT1 PLC CPU Module EtherCAT Motion Controller













Quick Specs.

Table 1 shows the Quick Specs

Item Details
Model NX1P2-1040DT1
Brand Omron
I/O 24 Inputs, 16 Outputs (PNP)
Motion 2 Synchronous Axes, 4 PTP Axes
Comm EtherCAT, EtherNet/IP
Power 24 VDC








Detailed Specification
Parameter Value
Model NX1P2-1040DT1
Series Sysmac NX1P
Type PLC CPU Unit
Digital Inputs 24 points (PNP/NPN)
Digital Outputs 16 points (PNP transistor)
Total Built-in I/O 40 points
Program Memory 1.5 MB
Variable Memory 2 MB
Synchronous Axes Max. 2 axes
PTP Axes Max. 4 axes
Communication EtherCAT Master, EtherNet/IP, Ethernet TCP/IP
Ethernet Ports 2 ports
Serial Option 2 slots (RS‑232C/422/485)
Expansion Units Max. 8 units
Remote I/O Nodes Max. 16 nodes
Supply Voltage 20.4–28.8 VDC (24 VDC nominal)
Dimensions 154 × 100 × 71 mm
Weight Approx. 660 g
Mounting DIN rail
Cycle Time 2 ms
