Weintek MT8071iP 7 Inch HMI Touch Screen Operator Interface Panel Industrial Human Machine Interface
Weintek MT8071iP 7 Inch HMI Touch Screen Operator Interface Panel Industrial Human Machine Interface
Weintek MT8071iP 7 Inch HMI Touch Screen Operator Interface Panel Industrial Human Machine Interface
Weintek MT8071iP 7 Inch HMI Touch Screen Operator Interface Panel Industrial Human Machine Interface
Weintek MT8071iP 7 Inch HMI Touch Screen Operator Interface Panel Industrial Human Machine Interface
Weintek MT8071iP 7 Inch HMI Touch Screen Operator Interface Panel Industrial Human Machine Interface
Specifications
Brand Name :
Siemens
Model Number :
MT8071IP
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Delivery Time :
2-3 days
Product Name :
PLC Industrial Control
Part Number :
MT8071IP
Shipment :
DHL
Condition :
New
Lead Time :
2-3 days
WQR12038HBL :
1 year
Keywords :
MT8071IP
Description
Sinamics MT8071IP Overview

MT8071iP is a 7-inch compact human-machine interface (HMI) from Weintek, designed for reliable industrial control and monitoring. It features a 800×480 TFT LCD with long-life LED backlight and a responsive 4-wire resistive touch panel. Powered by a 600MHz 32-bit RISC CPU with 128MB RAM and 128MB Flash, it ensures smooth operation and fast response.

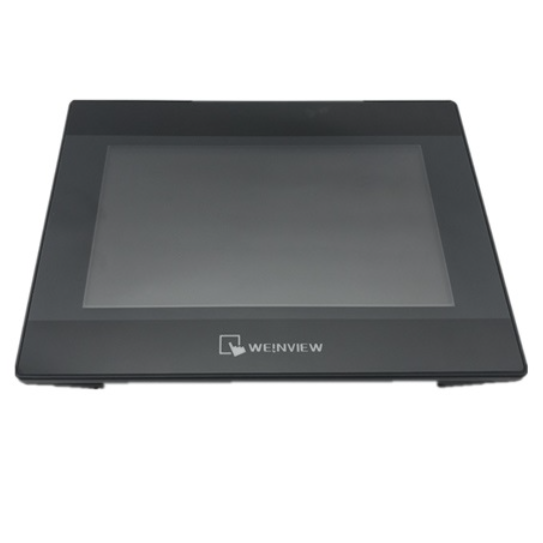

Figure 1 shows the front panel of MT8071IP.

Weintek MT8071iP 7 Inch HMI Touch Screen Operator Interface Panel Industrial Human Machine Interface










Weintek MT8071iP 7 Inch HMI Touch Screen Operator Interface Panel Industrial Human Machine Interface











Quick Specs.

Table 1 shows the Quick Specs

Item Specification
Display 7" TFT LCD, 800×480
Touch 4-wire Resistive
CPU 32-bit RISC 600MHz
Memory 128MB RAM, 128MB Flash
I/O Ethernet, USB, COM(RS232/485)
Power 10.5–28VDC
Protection Front IP65







Detailed Specification
Category Details
Model MT8071iP
Display Type 7" TFT LCD, LED Backlight
Resolution 800 × 480 pixels
Brightness 300 cd/m²
Contrast Ratio 500:1
Colors 16.7M
Backlight Lifetime >30,000 hours
Touch Type 4-wire Resistive
CPU 32-bit RISC Cortex-A8 600MHz
RAM 128MB
Flash 128MB
RTC Built-in
Ethernet 10/100 Base-T ×1
USB Host USB 2.0 ×1
COM Ports COM1: RS-232; COM2: RS-485 2W/4W
Input Voltage 10.5 ~ 28 VDC
Power Isolation Built-in
Front Panel NEMA4 / IP65 Compliant
Operating Temp 0 ~ 50°C
Dimensions 200.4 × 146.5 × 34 mm
Panel Cutout 192 × 138 mm
Weight Approx. 0.52 kg
Enclosure Plastic


Weintek MT8071iP 7 Inch HMI Touch Screen Operator Interface Panel Industrial Human Machine Interface
Weintek MT8071iP 7 Inch HMI Touch Screen Operator Interface Panel Industrial Human Machine Interface
