Siemens 6ES7231-4HF32-0XB0 SIMATIC S7-1200 Analog Input Module SM 1231
Siemens 6ES7231-4HF32-0XB0 SIMATIC S7-1200 Analog Input Module SM 1231
Siemens 6ES7231-4HF32-0XB0 SIMATIC S7-1200 Analog Input Module SM 1231
Siemens 6ES7231-4HF32-0XB0 SIMATIC S7-1200 Analog Input Module SM 1231
Siemens 6ES7231-4HF32-0XB0 SIMATIC S7-1200 Analog Input Module SM 1231
Siemens 6ES7231-4HF32-0XB0 SIMATIC S7-1200 Analog Input Module SM 1231
Specifications
Brand Name :
Siemens
Model Number :
6ES7231-4HF32-0XB0
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Delivery Time :
2-3 days
Product Name :
PLC Industrial Control
Part Number :
6ES7231-4HF32-0XB0
Shipment :
DHL
Condition :
New
Lead Time :
2-3 days
WQR12038HBL :
1 year
Keywords :
6ES7231-4HF32-0XB0
Description
Sinamics 6ES7231-4HF32-0XB0 Overview

6ES7231-4HF32-0XB0 is a high-performance analog input module SM 1231 designed for the SIMATIC S7-1200 PLC system. It provides 8 analog input channels supporting both voltage and current signals with flexible configuration. Featuring 13-bit resolution, fast conversion, and electrical isolation, it ensures stable and accurate data acquisition in industrial environments.

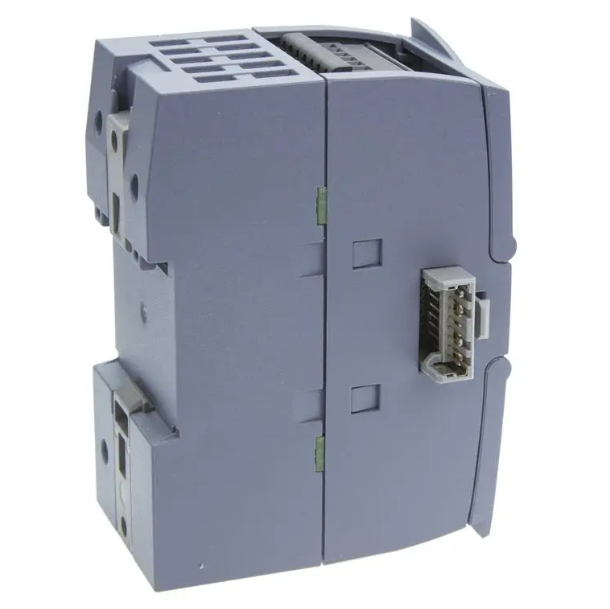

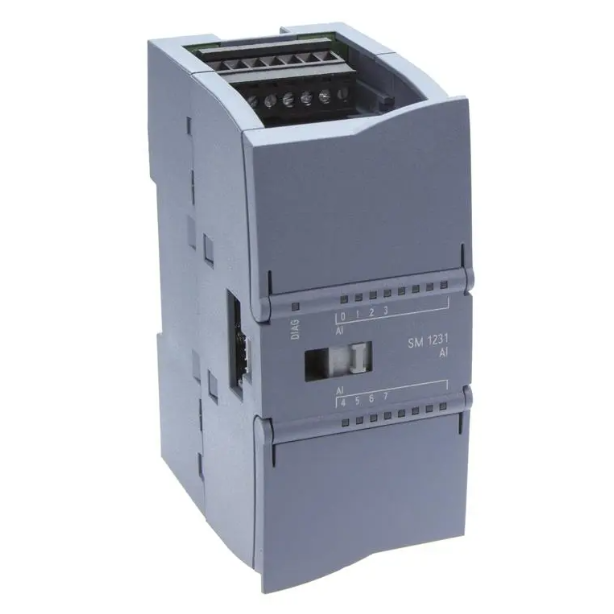

Figure 1 shows the front panel of 6ES7231-4HF32-0XB0.

Siemens 6ES7231-4HF32-0XB0 SIMATIC S7-1200 Analog Input Module SM 1231











Siemens 6ES7231-4HF32-0XB0 SIMATIC S7-1200 Analog Input Module SM 1231













Quick Specs.

Table 1 shows the Quick Specs

Item Details
Part Number 6ES7231-4HF32-0XB0
Product Line SIMATIC S7-1200
Type Analog Input Module SM 1231
Inputs 8 AI
Signal Types Voltage / Current
Resolution 12-bit + sign (13-bit ADC)
Supply 24 VDC
Protection IP20








Detailed Specification
Parameter Specification
Manufacturer Siemens
Model 6ES7231-4HF32-0XB0
Series SIMATIC S7-1200
Module Name SM 1231
Number of Analog Inputs 8
Input Signal Ranges ±10 V, ±5 V, ±2.5 V, 0–20 mA, 4–20 mA
Resolution 12-bit + sign (13-bit ADC)
Conversion Time Max. 625 µs (all channels)
Power Supply 24 VDC
Power Consumption Typ. 1.5 W
Isolation Voltage 500 VDC
Operating Temperature -20 °C to +60 °C
Dimensions (W×H×D) 45 mm × 100 mm × 75 mm
Weight Approx. 0.19 kg
Protection Rating IP20
Certifications CE, UL, cULus, CSA, FM, KC


Siemens 6ES7231-4HF32-0XB0 SIMATIC S7-1200 Analog Input Module SM 1231
Siemens 6ES7231-4HF32-0XB0 SIMATIC S7-1200 Analog Input Module SM 1231
