Sinamics 6ES7532-5HF00-0AB0 Overview

The Omron NX-PD1000 is a compact power feed unit designed for the NX-series modular I/O system. It provides additional 24V DC power to the NX bus, enabling flexible system expansion beyond the limits of the standard power supply. Featuring a space-saving 12mm width and screwless push-in connectors, it simplifies wiring and installation on DIN rails. This non-isolated power feed ensures stable and efficient power distribution for connected I/O terminals, sensors, and actuators in industrial automation environments. Its compliance with global certifications (CE, cULus, KC) and robust design make it suitable for a wide range of applications, including factory automation, machine control, and IoT-enabled systems.

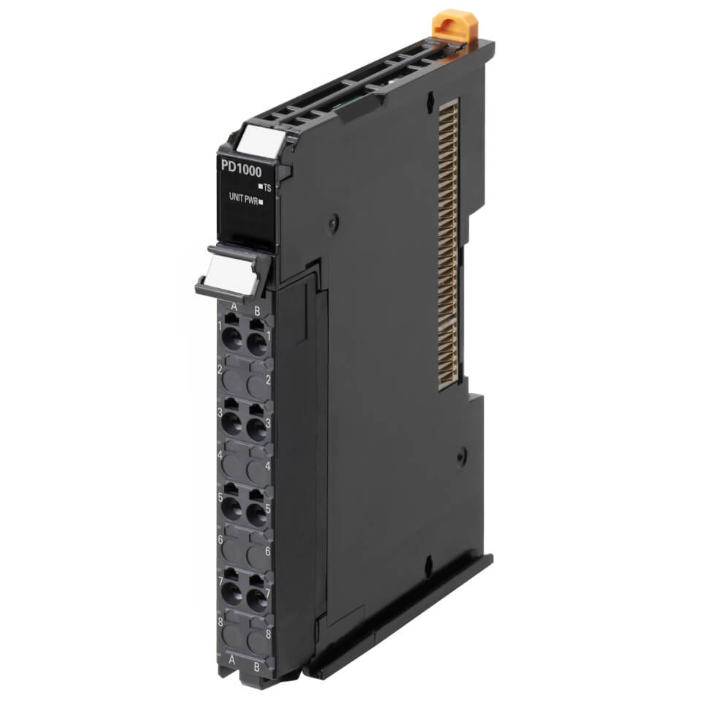

Figure 1 shows the front panel of NX-PD1000.

Omron NX-PD1000 NX Bus Power Feed Unit, 24V DC, Push-in Connector











Omron NX-PD1000 NX Bus Power Feed Unit, 24V DC, Push-in Connector
















Quick Specs.

Table 1 shows the Quick Specs

Item Specification
Product Type Power Feed Unit
Series NX-series
Input Voltage 24V DC (20.4–28.8V DC)
Power Capacity ≤10W
Connection Type Push-in (screwless)
Dimensions 12 (W) × 100 (H) × 80.1 (D) mm
Weight 65g
Protection IP20
Mounting DIN rail






Detailed Specification
Parameter Details
I/O System NX I/O Bus
Module Type Power feed
I/O Connection Type Push-in (spring terminal)
Number of I/O Connectors 1
Number of IOV (V+) Terminals 2
Number of IOG (V-) Terminals 2
Number of FG Terminals 2
Supply Voltage 24V DC (20.4–28.8V DC)
NX Bus Power Capacity ≤10W
Efficiency ≥70%
Current Capacity ≤4A (including through-wiring)
Dimensions (W×H×D) 12 × 100 × 80.1 mm
Weight 65g
Protection Rating IP20
Mounting DIN rail
Certifications CE, cULus, KC, RoHS
