Panasonic AFP0RC14CRS FP0R Series PLC CPU Unit, 8 Input 6 Relay Output 24VDC
Panasonic AFP0RC14CRS FP0R Series PLC CPU Unit, 8 Input 6 Relay Output 24VDC
Panasonic AFP0RC14CRS FP0R Series PLC CPU Unit, 8 Input 6 Relay Output 24VDC
Panasonic AFP0RC14CRS FP0R Series PLC CPU Unit, 8 Input 6 Relay Output 24VDC
Panasonic AFP0RC14CRS FP0R Series PLC CPU Unit, 8 Input 6 Relay Output 24VDC
Panasonic AFP0RC14CRS FP0R Series PLC CPU Unit, 8 Input 6 Relay Output 24VDC
Panasonic AFP0RC14CRS FP0R Series PLC CPU Unit, 8 Input 6 Relay Output 24VDC
Panasonic AFP0RC14CRS FP0R Series PLC CPU Unit, 8 Input 6 Relay Output 24VDC
Specifications
Brand Name :
Siemens
Model Number :
AFP0RC14CRS
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Delivery Time :
2-3 days
Product Name :
PLC Industrial Control
Part Number :
AFP0RC14CRS
Shipment :
DHL
Condition :
New
Lead Time :
2-3 days
WQR12038HBL :
1 year
Keywords :
AFP0RC14CRS
Description
Sinamics AFP0RC14CRS Overview

The AFP0RC14CRS is a compact, high‑performance PLC CPU unit from Panasonic’s FP0R series. Designed for industrial automation, it features 14 integrated I/O points (8 sink/source inputs, 6 relay outputs) and a 16 k step program memory. Equipped with RS‑232C and Mini USB ports for easy programming and communication, it supports high‑speed counters, 4‑axis pulse output, and RUN‑mode program editing to minimize downtime.

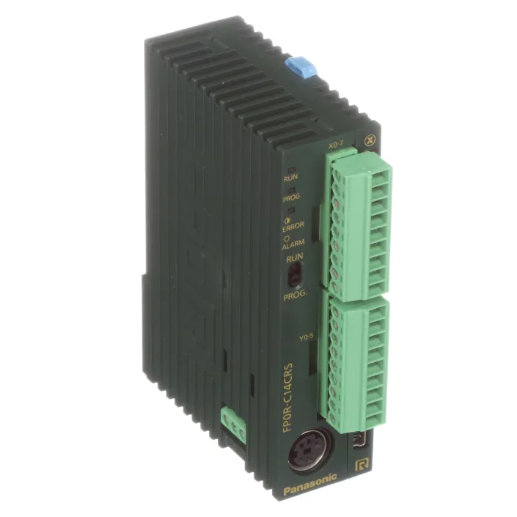

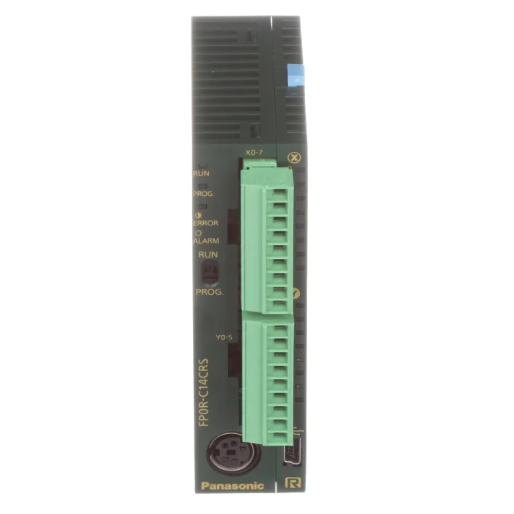

Figure 1 shows the front panel of AFP0RC14CRS.

Panasonic AFP0RC14CRS FP0R Series PLC CPU Unit, 8 Input 6 Relay Output 24VDC












Panasonic AFP0RC14CRS FP0R Series PLC CPU Unit, 8 Input 6 Relay Output 24VDC














Quick Specs.

Table 1 shows the Quick Specs

Item Details
Part Number AFP0RC14CRS
Brand Panasonic
Series FP0R
I/O Configuration 14 points (8 input, 6 relay output)
Supply Voltage 24 VDC
Program Memory 16 k steps
Communication RS‑232C + Mini USB
Mounting DIN rail
Certifications CE, cULus






Detailed Specification
Parameter Specification
General
Manufacturer Panasonic
Product Type PLC Control Unit
Series FP0R‑C14CRS
I/O Total Points 14
Input Type 8 points, sink/source (PNP/NPN)
Output Type 6 points, relay
Output Current 2 A per point
Supply Voltage 24 VDC (operating range: 20.4–28.8 VDC)
Performance
Program Memory 16 k steps (EEPROM)
Scan Speed Approx. 1 ms
High‑Speed Counter 8 points
Pulse Output 4‑axis, up to 50 kHz
Communication Ports RS‑232C, Mini USB
Physical
Dimensions (W×H×D) 25 × 60 × 90 mm
Mounting DIN rail
Terminals Screw terminal block
Operating Temperature 0 °C to +55 °C
Storage Temperature -40 °C to +70 °C
Humidity 10–95% RH (non‑condensing)
Protection & Features
Self‑Diagnosis Yes
RUN Mode Editing Yes
Password Protection Yes
Battery‑Less Backup Yes
Certifications CE, cULus Listed


Panasonic AFP0RC14CRS FP0R Series PLC CPU Unit, 8 Input 6 Relay Output 24VDC
Panasonic AFP0RC14CRS FP0R Series PLC CPU Unit, 8 Input 6 Relay Output 24VDC
