Panasonic FP0-TC4 Thermocouple Input Module for FP0 PLC
Panasonic FP0-TC4 Thermocouple Input Module for FP0 PLC
Panasonic FP0-TC4 Thermocouple Input Module for FP0 PLC
Panasonic FP0-TC4 Thermocouple Input Module for FP0 PLC
Panasonic FP0-TC4 Thermocouple Input Module for FP0 PLC
Panasonic FP0-TC4 Thermocouple Input Module for FP0 PLC
Specifications
Brand Name :
Siemens
Model Number :
FP0-TC4
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Delivery Time :
2-3 days
Product Name :
PLC Industrial Control
Part Number :
FP0-TC4
Shipment :
DHL
Condition :
New
Lead Time :
2-3 days
WQR12038HBL :
1 year
Keywords :
FP0-TC4
Description
Sinamics FP0-TC4 Overview

The FP0-TC4 is a 4‑channel thermocouple input expansion module designed for the Panasonic FP0 series PLC. It converts analog temperature signals from K, J, T, and R type thermocouples into high‑precision digital values for direct processing by the PLC CPU.

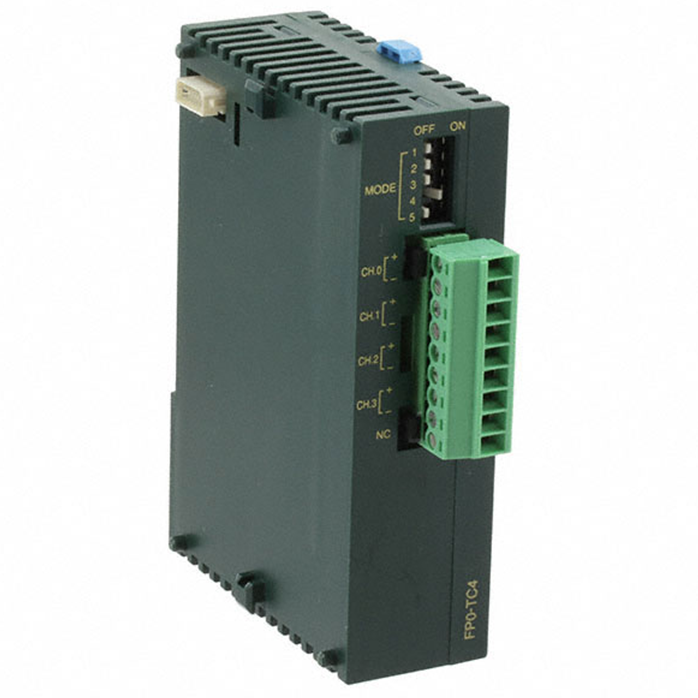

Figure 1 shows the front panel of FP0-TC4.

Panasonic FP0-TC4 Thermocouple Input Module for FP0 PLC











Panasonic FP0-TC4 Thermocouple Input Module for FP0 PLC















Quick Specs.

Table 1 shows the Quick Specs

Item Details
Model FP0-TC4
Brand Panasonic
Input Type 4-channel thermocouple
Supported Types K, J, T, R
Power Supply 24V DC
Mounting DIN rail






Detailed Specification
Parameter Value
Model FP0-TC4
Input Channels 4 points
Thermocouple Types K, J, T, R
Measurement Range -100.0 to +500.0°C (K/J); -100.0 to +400.0°C (T); 0.0 to +1500.0°C (R)
Resolution 0.1°C
Conversion Speed 5 ms per channel
Supply Voltage 24V DC
Current Consumption Max. 25 mA
Insulation Resistance >100 MΩ (500V DC)
Operating Temp 0 to +55°C
Weight Approx. 85 g
Mounting DIN rail mount
Termination Screw terminal
Compliance RoHS


Panasonic FP0-TC4 Thermocouple Input Module for FP0 PLC
Panasonic FP0-TC4 Thermocouple Input Module for FP0 PLC
