Sinamics Q64AD Overview

The Q64AD is a high-performance 4-channel analog-to-digital conversion module designed for the Mitsubishi MELSEC-Q Series PLC system. It supports both voltage and current inputs with multiple selectable ranges, delivering 16-bit high resolution and fast conversion speed for precise industrial signal measurement.

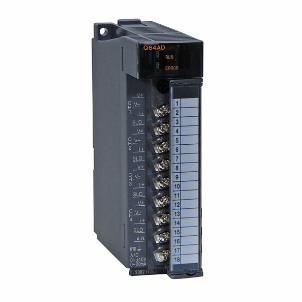

Figure 1 shows the front panel of Q64AD.

Mitsubishi Q64AD 4-Channel Analog Input Module for MELSEC-Q Series PLC












Mitsubishi Q64AD 4-Channel Analog Input Module for MELSEC-Q Series PLC


















Quick Specs.

Table 1 shows the Quick Specs

Item Specification
Model Q64AD
Series MELSEC-Q
Channels 4 analog input
Input Type Voltage / Current
Resolution 16-bit
Conversion Speed 80 μs/channel
Isolation Photocoupler
Dimensions 27.4 × 98 × 90 mm






Detailed Specification
Parameter Details
Analog Input Channels 4 channels
Voltage Input Ranges -10~10V, 0~10V, 0~5V, 1~5V
Current Input Ranges 0~20mA, 4~20mA
Input Resistance Voltage: 1 MΩ; Current: 250 Ω
Digital Output Normal: -4096~+4095; High-res: -16384~+16383
Conversion Speed 80 μs per channel
Accuracy ±0.1% (25°C)
Insulation I/O to PLC: photocoupler isolation; Channels: non-isolated
Withstand Voltage 500 V AC for 1 min
I/O Points Occupied 16 points
Power Supply 5 V DC, 190 mA (from PLC base)
Operating Temperature 0~55°C
Weight 0.18 kg
Terminals 18-point screw terminal block
