Mitsubishi FX5-CCL-MS CC-Link Master Module for MELSEC iQ-F PLC with 64 Remote Stations and 10 Mbps Speed
Mitsubishi FX5-CCL-MS CC-Link Master Module for MELSEC iQ-F PLC with 64 Remote Stations and 10 Mbps Speed
Mitsubishi FX5-CCL-MS CC-Link Master Module for MELSEC iQ-F PLC with 64 Remote Stations and 10 Mbps Speed
Mitsubishi FX5-CCL-MS CC-Link Master Module for MELSEC iQ-F PLC with 64 Remote Stations and 10 Mbps Speed
Mitsubishi FX5-CCL-MS CC-Link Master Module for MELSEC iQ-F PLC with 64 Remote Stations and 10 Mbps Speed
Mitsubishi FX5-CCL-MS CC-Link Master Module for MELSEC iQ-F PLC with 64 Remote Stations and 10 Mbps Speed
Specifications
Brand Name :
Siemens
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Delivery Time :
2-3 days
PFX5-CCL-MS :
PLC Industrial Control
Part Number :
FX5-CCL-MS
Shipment :
DHL
Condition :
New
Lead Time :
2-3 days
Warranty :
1 year
Keywords :
FX5-CCL-MS
Description
Sinamics FX5-CCL-MS Overview
The FX5‑CCL‑MS is a dedicated CC‑Link communication module for Mitsubishi MELSEC iQ‑F series PLCs. It operates as a master station or intelligent device station to build stable, high‑speed industrial field networks. Supporting multiple baud rates and up to 64 remote stations, it enables reliable data exchange between PLCs, remote I/O, and field devices. Compact, easy to install, and certified for global standards, the FX5‑CCL‑MS is ideal for factory automation, machinery control, and distributed I/O systems.

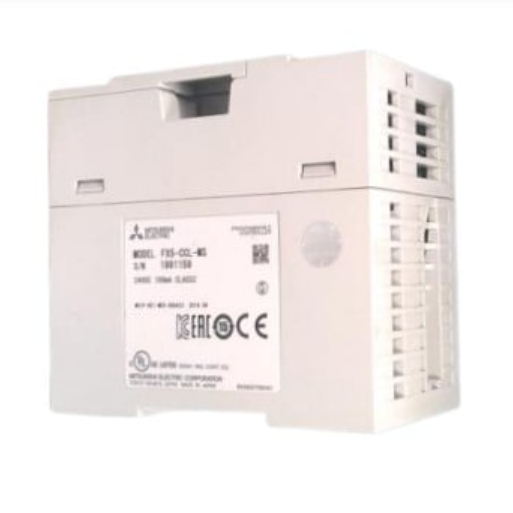

Figure 1 shows the front panel of FX5-CCL-MS.

Mitsubishi FX5-CCL-MS CC-Link Master Module for MELSEC iQ-F PLC with 64 Remote Stations and 10 Mbps Speed












Mitsubishi FX5-CCL-MS CC-Link Master Module for MELSEC iQ-F PLC with 64 Remote Stations and 10 Mbps Speed


















Quick Specs.

Table 1 shows the Quick Specs

Item Details
Model FX5-CCL-MS
Brand Mitsubishi Electric
Series MELSEC iQ-F
Function CC-Link Master / Intelligent Device Station
Compatible CPU FX5U / FX5UC / FX5UJ
Communication Speed 156 kbps / 625 kbps / 2.5 Mbps / 5 Mbps / 10 Mbps
Certifications CE, UL, cUL, RoHS



Detailed Specification
Specification Value
Model FX5-CCL-MS
Applicable PLC MELSEC iQ‑F series (FX5U, FX5UC, FX5UJ)
Station Type Master station / Intelligent device station
Occupied I/O Points 8 points
Communication Method CC‑Link (differential serial)
Transmission Speed 156kbps, 625kbps, 2.5Mbps, 5Mbps, 10Mbps
Max. Connected Stations Up to 64 stations (master mode)
Max. Distance 1200 m (depending on speed)
Power Supply 5 VDC (from PLC base unit)
Current Consumption Approx. 100 mA
Dimensions (W×H×D) 50 mm × 90 mm × 83 mm
Weight 0.3 kg
Standards CE, UL/cUL, RoHS, EMC
Engineering Tool GX Works3
