Fanuc αiSP-B Series Spindle Drive Module with 165A Output Current and 283-339V Input Voltage for CNC Machining Centers
Fanuc αiSP-B Series Spindle Drive Module with 165A Output Current and 283-339V Input Voltage for CNC Machining Centers
Fanuc αiSP-B Series Spindle Drive Module with 165A Output Current and 283-339V Input Voltage for CNC Machining Centers
Fanuc αiSP-B Series Spindle Drive Module with 165A Output Current and 283-339V Input Voltage for CNC Machining Centers
Fanuc αiSP-B Series Spindle Drive Module with 165A Output Current and 283-339V Input Voltage for CNC Machining Centers
Fanuc αiSP-B Series Spindle Drive Module with 165A Output Current and 283-339V Input Voltage for CNC Machining Centers
Specifications
Brand Name :
Siemens
Model Number :
A06B-6222-H037
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Delivery Time :
2-3 days
Product Name :
PLC Industrial Control
Part Number :
A06B-6222-H037
Shipment :
DHL
Condition :
New
Lead Time :
2-3 days
Warranty :
1 year
Keywords :
A06B-6222-H037
Description
Sinamics A06B-6222-H037 Overview

The Fanuc A06B-6222-H037 is a high‑performance spindle amplifier module belonging to the αiSP‑B (AiSP‑37‑B) series, designed for precision spindle control in CNC machining centers, lathes, and industrial automation systems. It delivers stable, high‑power output (up to 165A) with a wide input voltage range (283–339V), ensuring reliable operation under varying industrial conditions.

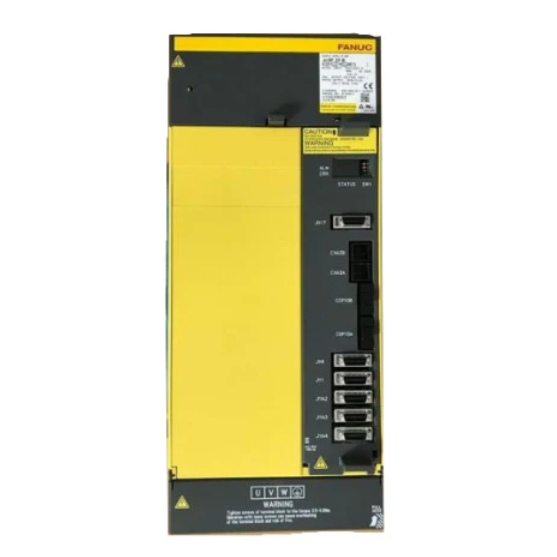

Figure 1 shows the front panel of A06B-6222-H037.

Fanuc αiSP-B Series Spindle Drive Module with 165A Output Current and 283-339V Input Voltage for CNC Machining Centers














Fanuc αiSP-B Series Spindle Drive Module with 165A Output Current and 283-339V Input Voltage for CNC Machining Centers


















Quick Specs.

Table 1 shows the Quick Specs

Item Details
Model A06B-6222-H037 (AiSP-37-B)
Type Spindle Amplifier Module
Series Fanuc αiSP‑B
Input 283–339V, 3‑Phase, 152A
Output 200–240V, 3‑Phase, 165A
Application CNC Machines, Industrial Automation
Condition New / Refurbished




Detailed Specification

Parameter Specification
Part Number A06B-6222-H037
Product Name Spindle Amplifier Module
Series αiSP‑B (Alpha iSP‑B)
Model Variant AiSP‑37‑B
Input Voltage 283–339 VAC, 3‑Phase
Input Current 152 A
Output Voltage 200–240 VAC, 3‑Phase
Output Current 165 A
Control Interface Fanuc Serial Bus (FSSB)
Protection Overvoltage, Overcurrent, Overtemp
Certifications CE, RoHS
Weight Approx. 15 kg
Dimensions Standard Fanuc Amplifier Size
Mounting Rack‑Mount / Cabinet
