Mitsubishi HG-KR73B 750W Low Inertia Servo Motor with Built-in Brake for High-Precision Automation
Mitsubishi HG-KR73B 750W Low Inertia Servo Motor with Built-in Brake for High-Precision Automation
Mitsubishi HG-KR73B 750W Low Inertia Servo Motor with Built-in Brake for High-Precision Automation
Mitsubishi HG-KR73B 750W Low Inertia Servo Motor with Built-in Brake for High-Precision Automation
Mitsubishi HG-KR73B 750W Low Inertia Servo Motor with Built-in Brake for High-Precision Automation
Mitsubishi HG-KR73B 750W Low Inertia Servo Motor with Built-in Brake for High-Precision Automation
Specifications
Brand Name :
Siemens
Model Number :
HG-KR73B
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Delivery Time :
2-3 days
Product Name :
PLC Industrial Control
Part Number :
HG-KR73B
Shipment :
DHL
Condition :
New
Lead Time :
2-3 days
Warranty :
1 year
Keywords :
HG-KR73B
Description
Sinamics HG-KR73B Overview

The HG‑KR73B is a compact, low‑inertia Mitsubishi servo motor designed for high‑precision and high‑response automation applications. It delivers 750W rated power with 2.4 Nm rated torque and a 3000 rpm maximum speed, supported by a 22‑bit absolute encoder for accurate positioning. Equipped with a built‑in electromagnetic brake, it ensures safe shaft holding during power loss. The motor features IP65 protection, low inertia for fast acceleration, and stable performance for small‑to‑medium automated machinery. It is widely used in robotics, packaging, assembly, and material handling systems requiring reliable motion control.

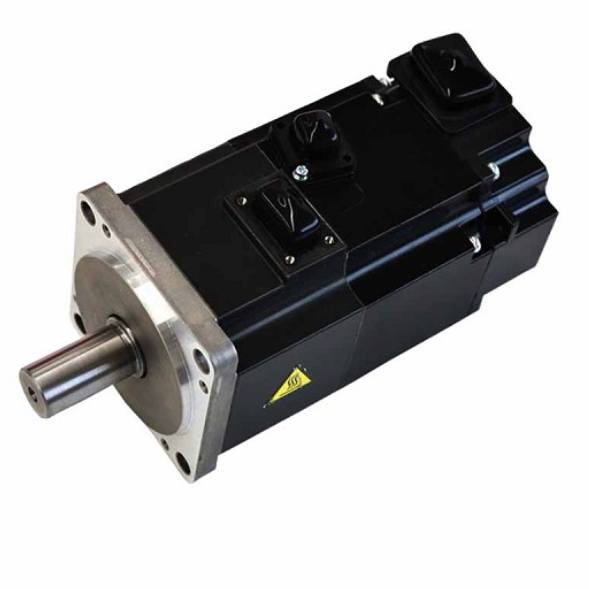

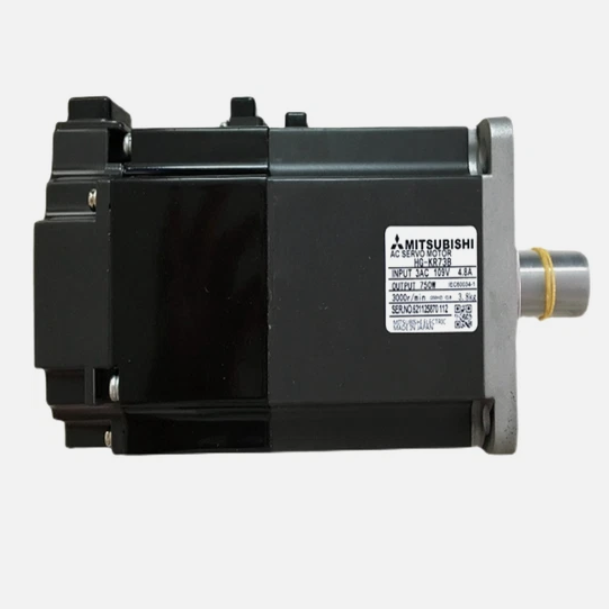

Figure 1 shows the front panel of HG-KR73B.

Mitsubishi HG-KR73B 750W Low Inertia Servo Motor with Built-in Brake for High-Precision Automation















Mitsubishi HG-KR73B 750W Low Inertia Servo Motor with Built-in Brake for High-Precision Automation



















Quick Specs.

Table 1 shows the Quick Specs

Item Value
Model HG-KR73B
Power 750W
Rated Torque 2.4 Nm
Speed 3000 rpm
Brake Built‑in electromagnetic





Detailed Specification
Parameter Details
Product Type AC brushless rotary servo motor
Series MELSERVO J4 / HG‑KR
Rated Output 750 W / 0.75 kW
Rated Torque 2.4 Nm
Max. Torque 8.4 Nm
Rated Speed 3000 rpm
Encoder 22‑bit absolute
Brake Electromagnetic brake (DC24V)
Voltage 200 Vac class
Rated Current 4.8 A
Inertia Low inertia
Shaft Straight shaft
Protection IP65
Ambient Temperature −10°C to +40°C
