Description
Siemens SGDM-15ADA Overview

The Yaskawa SGDM-15ADA is a high-performance 1.5kW AC servo amplifier belonging to the trusted Sigma II Series, engineered to deliver precise, responsive motion control for industrial automation applications. Designed for single/three-phase 200V AC input (50/60Hz), it offers a rated output current of 6.0A and a peak current of 15A (350% overload capacity for 1 second), making it suitable for medium-load machinery such as CNC routers, packaging equipment, and material handling systems.

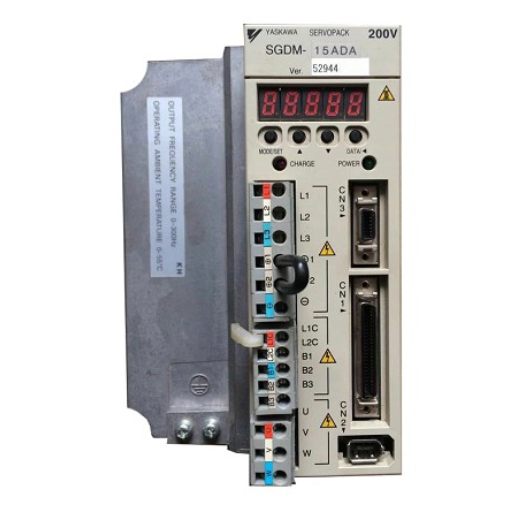

Figure 1 shows the front panel of SGDM-15ADA.

SGDM - 15ADA-Yaskawa Sigma II Series 1.5kW 200V AC Servo Amplifier








SGDM - 15ADA-Yaskawa Sigma II Series 1.5kW 200V AC Servo Amplifier













Quick Specs.

Table 1 shows the Quick Specs.

Parameter Specification
Model SGDM - 15ADA
Brand Yaskawa
Product Series Sigma II Series
Rated Output 1.5kW
Input Voltage Single/Three - phase 200V AC, 50/60Hz
Control Mode Speed, Torque, Position Control
Rated Current 6.0A
Peak Current 15A
Frequency Response 1.6kHz





Detailed Specification
Category Parameter Specification
Basic Information Model Number SGDM - 15ADA

Product Series Sigma II Series Servo Amplifier

Manufacturer Yaskawa

Product Type AC Servo Drive
Electrical Specifications Rated Output Power 1.5kW

Input Voltage Single/Three - phase 200V AC, 50/60Hz

Rated Output Current 6.0A

Peak Output Current 15A (350% for 1 second)

Control Method PWM Control

Frequency Response 1.6kHz

Encoder Type 20 - bit Absolute Serial Encoder (Standard)
Performance Control Modes Position, Speed, Torque Control

Overload Capacity 350% of rated current for 1 second

Speed Control Range 1:5000 (at 1500rpm rated speed)

Positioning Accuracy ±1 pulse (20 - bit encoder)
Physical & Environmental Operating Temperature 0 - 40°C (No condensation)

Storage Temperature -20 - 65°C

Relative Humidity 20% - 90% (Non - condensing)

Vibration Resistance V15 (15m/s² max)

Weight 3.0kg

Mounting Method Base - Mounted

IP Rating IP20 (Standard)
Compliance Standards Compliance CE, UL, cUL, RoHS
