Siemens 6AV3627-1LK00-1AX0 Overview

The Siemens SIMATIC OP27C 6AV3627-1LK00-1AX0 is a compact, high-reliability 5.7-inch STN color HMI operator panel engineered for seamless human-machine interaction in industrial automation environments. Equipped with 24 configurable function keys (18 integrated with status LEDs), this panel enables intuitive operation and real-time status monitoring of production lines, machinery, and process control systems.

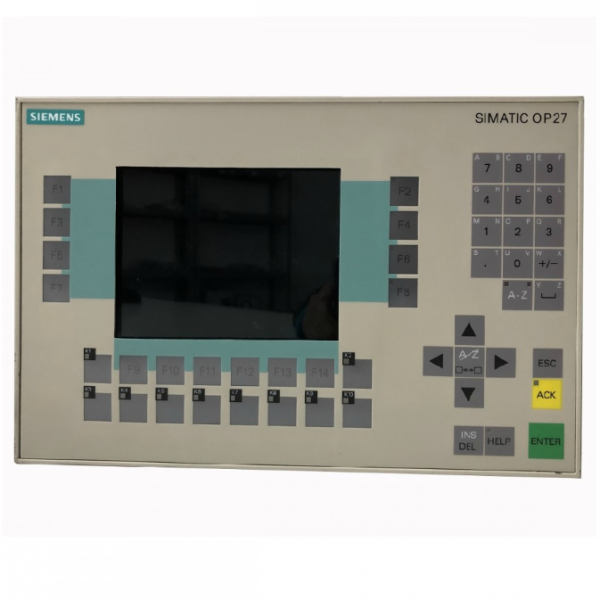

Figure 1 shows the front panel of 6AV3627-1LK00-1AX0.

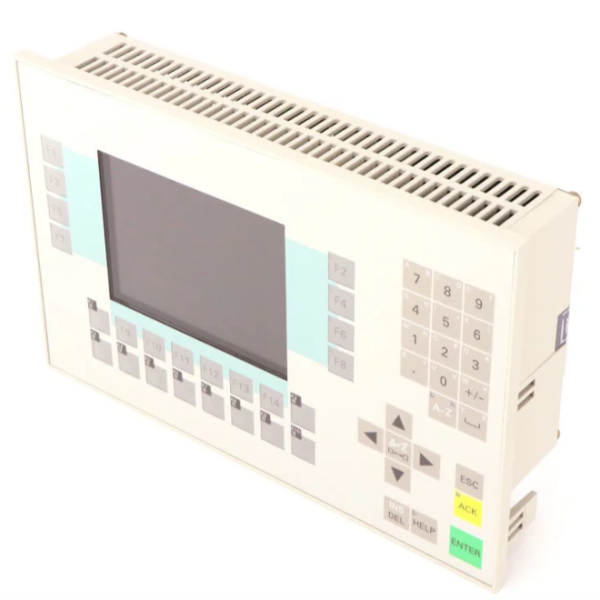

Siemens SIMATIC OP27C 6AV3627-1LK00-1AX0, 5.7









Siemens SIMATIC OP27C 6AV3627-1LK00-1AX0, 5.7












Quick Specs.

Table 1 shows the Quick Specs.


Parameter Value
Model Number 6AV3627-1LK00-1AX0
Display Type 5.7" STN, 8 colors, 240×320 pixels
Function Keys 24 keys (18 with LEDs)
Power Supply 24 V DC (18-30 V DC)
Interfaces 2×TTY/RS232, 1×RS422/RS485, 1×PCMCIA/JEIDA Slot





Detailed Specification
Category Details
General Product Name: Siemens SIMATIC OP27C

Ordering Number: 6AV3627-1LK00-1AX0

Product Type: HMI Operator Panel
Display Screen Size: 5.7 inch

Display Technology: STN Color LC

Resolution: 240 × 320 pixels

Color: 8 colors

Backlighting MTBF (25°C): 40,000 h
Control Elements Membrane Keyboard: Yes (user-definable labels)

Function Keys: 24 (18 with LEDs)

Input Type: Numeric/Alphabetical/Hexadecimal
Power Supply Voltage: 24 V DC (18-30 V DC)

Rated Current: 0.3 A

Power Consumption: 8 W

Backup Battery: Optional 3.6 V (min. 4 years backup)
Interfaces 2×TTY/RS232 (active/passive)

1×RS422/RS485

1×PCMCIA/JEIDA Slot
Dimensions & Weight Front Housing: 296 mm × 192 mm

Depth: 59 mm

Installation Depth: 94 mm

Weight (without packaging): 1.85 kg
Configuration Configuration Tool: ProTool V3.1

Memory: Flash/RAM

Siemens SIMATIC OP27C 6AV3627-1LK00-1AX0, 5.7
Siemens SIMATIC OP27C 6AV3627-1LK00-1AX0, 5.7
