Specifications
Brand Name :
Siemens
Model Number :
6ES7223-1HF22-0XA0
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Delivery Time :
2-3 days
Product Name :
PLC Industrial Control
Part Number :
6ES7223-1HF22-0XA0
Shipment :
DHL
Condition :
New
Lead Time :
2-3 days
Warranty :
1 year
Keywords :
6ES7223-1HF22-0XA0
Description
Siemens 6ES7223-1HF22-0XA0 Overview

The 6ES7223-1HF22-0XA0 is a high-performance digital input/output expansion module designed exclusively for Siemens S7-200 PLC series, engineered to elevate the flexibility and scalability of industrial automation systems. Equipped with 8 channels of 24V DC digital inputs and 8 channels of relay outputs, this module enables seamless connection and control of a wide range of field devices, including sensors, actuators, solenoid valves, and indicator lights.

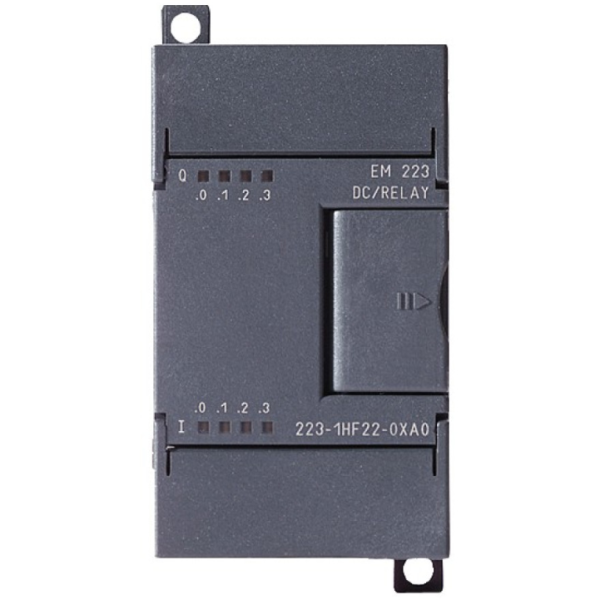

Figure 1 shows the front panel of 6ES7223-1HF22-0XA0.

6ES7223-1HF22-0XA0 Siemens S7-200 Digital I/O Module | High-Speed Industrial Automation Input/Output Unit








6ES7223-1HF22-0XA0 Siemens S7-200 Digital I/O Module | High-Speed Industrial Automation Input/Output Unit












Quick Specs.

Table 1 shows the Quick Specs.


Parameter Specification
Product Model 6ES7223-1HF22-0XA0
I/O Type Digital Input/Output
Input Channels 8 x 24V DC
Output Channels 8 x Relay (2A/230V AC, 2A/30V DC)
Compatibility Siemens S7-200 PLC Series





Detailed Specification
Parameter Category Parameter Name Specification
General Product Type Digital I/O Expansion Module

Manufacturer Siemens

Series Compatibility S7-200 PLC
Digital Input Number of Channels 8

Input Voltage 24V DC

Input Current 7mA per channel

Input Type Sink/Source

Response Time ≤1.2ms (high-speed mode)
Digital Output Number of Channels 8

Output Type Relay Contact

Rated Load Voltage 230V AC / 30V DC

Rated Load Current 2A per channel, 8A total

Mechanical Life ≥10⁶ operations

Electrical Life ≥10⁵ operations (at rated load)
Electrical Ratings Power Consumption ≤2W

Isolation 2500V AC (input/output to logic)
Mechanical Dimensions (W×H×D) 40 x 80 x 62 mm

Mounting Type DIN Rail Mount (35mm)
Environmental Operating Temperature 0°C to +60°C

Storage Temperature -25°C to +70°C

Humidity 5% to 95% RH (non-condensing)
