TOSOKU HC121 DAG MPG CNC Handwheel 4 Axis 12V 25PPR for Mitsubishi CNC System
TOSOKU HC121 DAG MPG CNC Handwheel 4 Axis 12V 25PPR for Mitsubishi CNC System
TOSOKU HC121 DAG MPG CNC Handwheel 4 Axis 12V 25PPR for Mitsubishi CNC System
TOSOKU HC121 DAG MPG CNC Handwheel 4 Axis 12V 25PPR for Mitsubishi CNC System
TOSOKU HC121 DAG MPG CNC Handwheel 4 Axis 12V 25PPR for Mitsubishi CNC System
TOSOKU HC121 DAG MPG CNC Handwheel 4 Axis 12V 25PPR for Mitsubishi CNC System
TOSOKU HC121 DAG MPG CNC Handwheel 4 Axis 12V 25PPR for Mitsubishi CNC System
TOSOKU HC121 DAG MPG CNC Handwheel 4 Axis 12V 25PPR for Mitsubishi CNC System
Specifications
Brand Name :
Siemens
Model Number :
HC121 TOSOKU DAG MPG CNC
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Delivery Time :
2-3 days
Product Name :
PLC Industrial Control
Part Number :
HC121 TOSOKU DAG MPG CNC
Shipment :
DHL
Condition :
New
Lead Time :
2-3 days
Warranty :
1 year
Keywords :
HC121 TOSOKU DAG MPG CNC
Description
Siemens HC121 TOSOKU DAG MPG CNC Overview

The TOSOKU HC121 DAG MPG is a high-precision manual pulse generator specially engineered for Mitsubishi CNC systems, serving as a core manual control accessory for CNC machine tools, machining centers and other industrial automation equipment. Featuring a compact and lightweight design with a thickness of only 26mm, this 4-axis CNC handwheel realizes precise manual positioning and fine-tuning of CNC machine tools with 25PPR pulse output and ×1/×10/×100 adjustable multipliers, meeting the high-precision operation requirements of industrial machining.

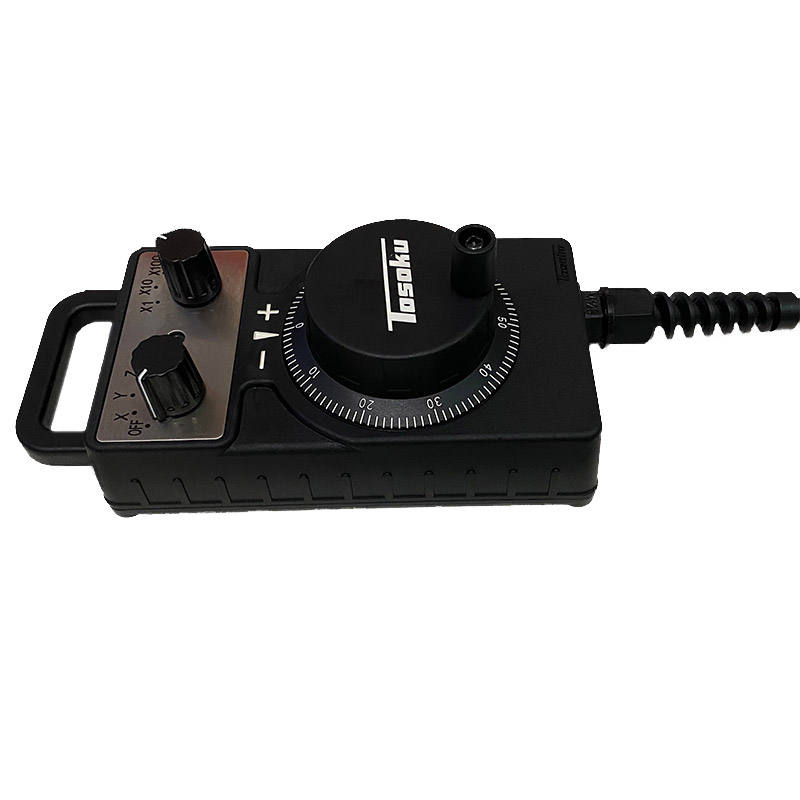

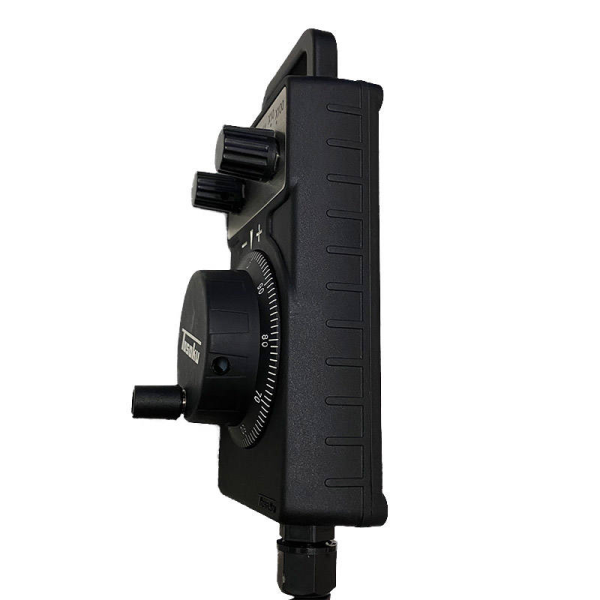

Figure 1 shows the front panel of HC121 TOSOKU DAG MPG CNC.

TOSOKU HC121 DAG MPG CNC Handwheel 4 Axis 12V 25PPR for Mitsubishi CNC System
TOSOKU HC121 DAG MPG CNC Handwheel 4 Axis 12V 25PPR for Mitsubishi CNC System











Quick Specs.

Table 1 shows the Quick Specs.


Item Specification
Brand TOSOKU
Model HC121
Voltage DC 12V
PPR 25PPR
Axis 4 Axis
Application Mitsubishi CNC System




Detailed Specification
Parameter Value
Brand TOSOKU
Model HC121 DAG MPG
Power Supply DC 12V
Pulse Output 25PPR
Axis Selection OFF,X,Y,Z,4
Multiplier ×1,×10,×100
Dimension 124×73×26 mm
Weight 525g
Operating Temperature -10℃ ~ +60℃
Storage Temperature -40℃ ~ +70℃
LED Indicator DC24V Green
Sealing Performance IP67 Equivalent
Noise Immunity EN 50082-2 Compliant
Cable 3m Curly Cable (Standard)
Compliance RoHS,CE
Output Signal A,B
No-Load Current 60mA
Output Voltage High: Vcc×0.7V, Low: 0.5V
Output Current 35mA
Pulse Fall Time 5μs (Typ)
Response Frequency 0~5kHz
Insulation Resistance 20MΩ

TOSOKU HC121 DAG MPG CNC Handwheel 4 Axis 12V 25PPR for Mitsubishi CNC System
TOSOKU HC121 DAG MPG CNC Handwheel 4 Axis 12V 25PPR for Mitsubishi CNC System
