Omron CJ1W-ID262 64-Input DC Digital Input Unit for CJ1 Series PLC
Omron CJ1W-ID262 64-Input DC Digital Input Unit for CJ1 Series PLC
Omron CJ1W-ID262 64-Input DC Digital Input Unit for CJ1 Series PLC
Omron CJ1W-ID262 64-Input DC Digital Input Unit for CJ1 Series PLC
Omron CJ1W-ID262 64-Input DC Digital Input Unit for CJ1 Series PLC
Omron CJ1W-ID262 64-Input DC Digital Input Unit for CJ1 Series PLC
Omron CJ1W-ID262 64-Input DC Digital Input Unit for CJ1 Series PLC
Omron CJ1W-ID262 64-Input DC Digital Input Unit for CJ1 Series PLC
Specifications
Brand Name :
Siemens
Model Number :
CJ1W-ID262
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Delivery Time :
2-3 days
Product Name :
PLC Industrial Control
Part Number :
CJ1W-ID262
Shipment :
DHL
Condition :
New
Lead Time :
2-3 days
Warranty :
1 year
Keywords :
CJ1W-ID262
Description
Siemens CJ1W-ID262 Overview

The Omron CJ1W-ID262 is a high-performance 64-point DC digital input unit designed for seamless integration with Omron CJ1 Series programmable logic controllers (PLCs). Engineered for industrial automation applications, this module features 64 discrete DC24V input points split into 8 groups of 8, enabling efficient connection and control of multiple digital sensors and actuators in manufacturing and process control systems.

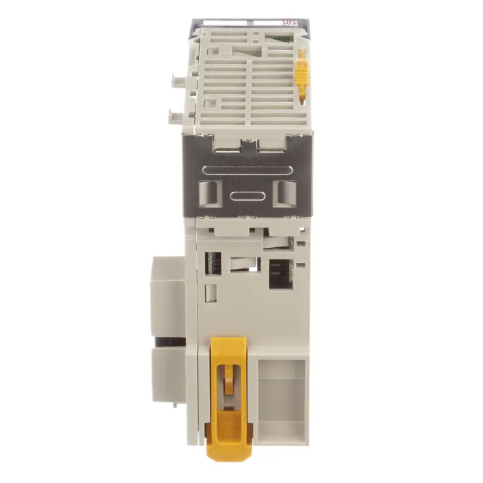

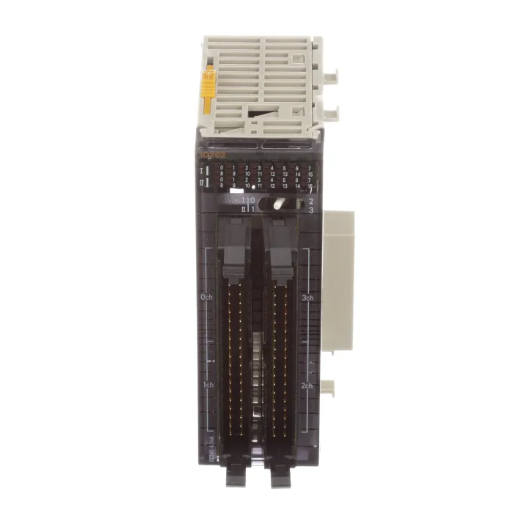

Figure 1 shows the front panel of CJ1W-ID262.

Omron CJ1W-ID262 64-Input DC Digital Input Unit for CJ1 Series PLC






Omron CJ1W-ID262 64-Input DC Digital Input Unit for CJ1 Series PLC















Quick Specs.

Table 1 shows the Quick Specs.


Parameter Specification
Brand Omron
Type Digital Input Unit
Input Points 64
Input Voltage DC24V
Compatibility CJ1 Series PLC




Detailed Specification
Parameter Specification
Model Number CJ1W-ID262
Brand Omron
Product Category PLC Digital Input Module
Total Input Points 64 points (8 groups × 8 points)
Input Voltage DC24V ±10%
Input Current 7mA (DC24V)
Input Type Sink/Source (PNP/NPN) compatible
Response Time 1ms (ON/OFF, fixed)
Isolation Method Photoelectric isolation (between input and internal circuit)
Isolation Voltage AC1,500V for 1 minute
Connection Method Removable terminal block
Operating Temperature 0°C to 55°C (32°F to 131°F)
Storage Temperature -25°C to 70°C (-13°F to 158°F)
Operating Humidity 10% to 90% RH (non-condensing)
Power Consumption Max 4.5W
Dimensions (W×H×D) 48×90×100mm (1.89×3.54×3.94in)
Mounting Method DIN rail mounting (35mm)
PLC Series Compatibility Omron CJ1 Series CPU Units

Omron CJ1W-ID262 64-Input DC Digital Input Unit for CJ1 Series PLC
Omron CJ1W-ID262 64-Input DC Digital Input Unit for CJ1 Series PLC
