Specifications
Brand Name :
Siemens
Model Number :
Zb5ak1253
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Delivery Time :
2-3 days
Product Name :
PLC Industrial Control
Part Number :
Zb5ak1253
Shipment :
DHL
Condition :
New
Lead Time :
2-3 days
Warranty :
1 year
Keywords :
Zb5ak1253
Description
Siemens Zb5ak1253 Overview

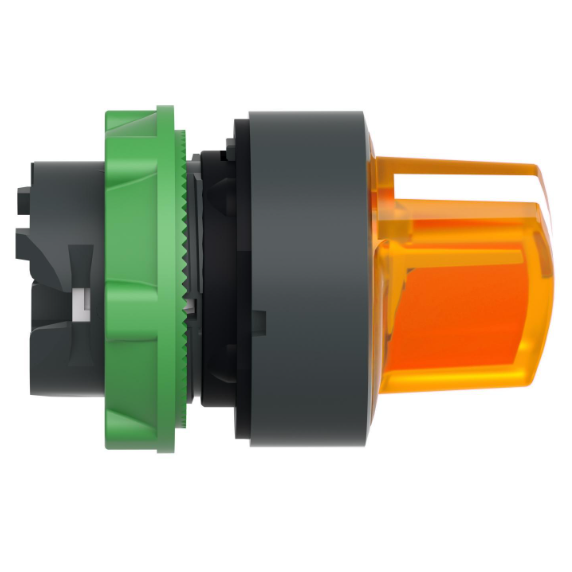

Schneider Electric ZB5AK1253 2POS ILLUMINATED SELECTOR YELLOW,22mm Round,Black,Harmony,IP 65,Illuminated Standard Knob 2 Position,Maintained,NEMA 1/2/3/4/4X/13,Selector Switch Operator,UL Listed File Number E164353 CCN NKCR - CSA Certified File Number LR44087 Class 321103 - CE Marked,Yellow Unmarked.

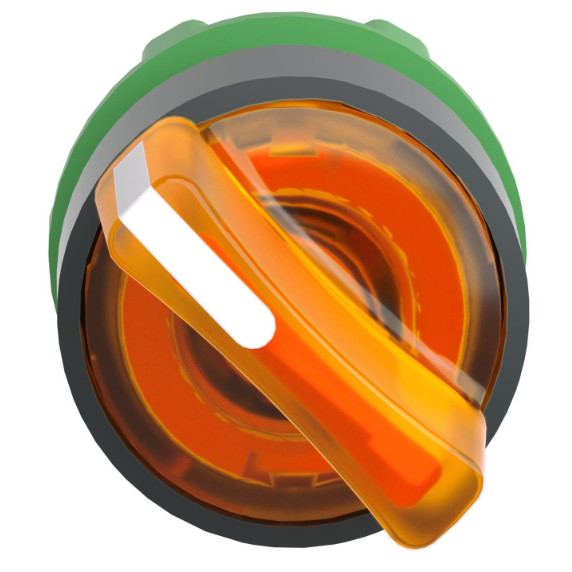

Figure 1 shows the front panel of Zb5ak1253.

ZB5AK1253 Industrial Push Button Switch with 22mm Panel Mount 1NO+1NC Contact and IP66 Protection












ZB5AK1253 Industrial Push Button Switch with 22mm Panel Mount 1NO+1NC Contact and IP66 Protection




Quick Specs.

Table 1 shows the Quick Specs.

Param Value
Model ZB5AK1253
Type 22mm Push Button Switch
Contact 1NO+1NC
IP Rating IP66
Max V 240V AC / 30V DC
Max I 10A AC / 0.5A DC
Temp Range -25°C ~ +70°C



Detailed Specifications
Parameter Category Details
Product Model ZB5AK1253
Product Type Non-Illuminated Industrial Push Button Switch
Panel Mount Size 22mm
Contact Configuration 1NO (Normally Open) + 1NC (Normally Closed)
Protection Rating IP66
Operating Voltage 240V AC / 30V DC
Operating Current 10A AC / 0.5A DC
Mechanical Life ≥ 1,000,000 Cycles
Electrical Life ≥ 100,000 Cycles
Mounting Method Panel Mount
Operating Temperature -25°C ~ +70°C
Material Thermoplastic Housing, Metal Actuator
