PLC HMI CPU Integrated Panel (10.1 Touch, 24VDC, 2 Ethernet Ports)
PLC HMI CPU Integrated Panel (10.1 Touch, 24VDC, 2 Ethernet Ports)
PLC HMI CPU Integrated Panel (10.1 Touch, 24VDC, 2 Ethernet Ports)
PLC HMI CPU Integrated Panel (10.1 Touch, 24VDC, 2 Ethernet Ports)
PLC HMI CPU Integrated Panel (10.1 Touch, 24VDC, 2 Ethernet Ports)
PLC HMI CPU Integrated Panel (10.1 Touch, 24VDC, 2 Ethernet Ports)
Specifications
Brand Name :
Siemens
Model Number :
Cpu Hmi Plc Panel
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Delivery Time :
2-3 days
Product Name :
PLC Industrial Control
Part Number :
Cpu Hmi Plc Panel
Shipment :
DHL
Condition :
New
Lead Time :
2-3 days
Warranty :
1 year
Keywords :
Cpu Hmi Plc Panel
Description
Siemens Cpu Hmi Plc Panel Overview

This all-in-one PLC HMI CPU Integrated Panel combines industrial control, human-machine interaction, and data processing capabilities into a compact, high-performance unit, ideal for factory automation, process control, and smart manufacturing applications. Featuring a crisp 10.1-inch WXGA resistive touch screen with 400 cd/m² brightness and wide viewing angles, it delivers clear visual feedback and intuitive operation even in harsh industrial environments.

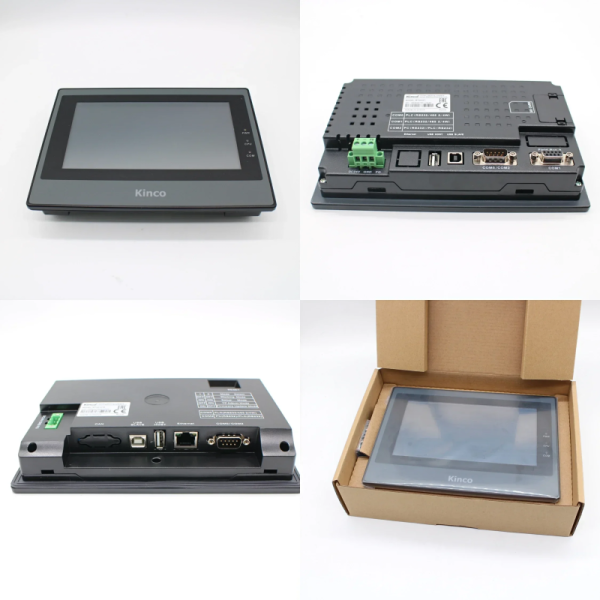

Figure 1 shows the front panel of Cpu Hmi Plc Panel.

PLC HMI CPU Integrated Panel (10.1
















PLC HMI CPU Integrated Panel (10.1














Quick Specs.

Table 1 shows the Quick Specs.

Parameter Value
Display Size 10.1" TFT Touch Screen
Power Supply 24VDC (±10%)
CPU Type 32-bit Industrial CPU
Communication Ports 2× Ethernet, 1× RS485
Operating Temperature 0°C ~ 50°C




Detailed Specifications
Category Parameter Specification
Display Screen Type 10.1" TFT LCD, Resistive Touch Screen

Resolution 1280×800 (WXGA)

Brightness 400 cd/m²

Viewing Angle 170°(H)/160°(V)
CPU & Memory CPU Model 32-bit RISC Industrial CPU, 1.2GHz

RAM 1GB DDR3

Flash Memory 8GB eMMC
Power Input Voltage 24VDC (18VDC ~ 30VDC)

Power Consumption ≤15W (Typical)

Protection Overvoltage, Overcurrent Protection
Communication Ethernet Ports 2× RJ45, 10/100/1000Mbps Auto-MDI/MDIX

Serial Ports 1× RS485 (Modbus RTU/ASCII)

Protocol Support Modbus TCP/IP, Ethernet/IP, PROFINET
Environment Operating Temp 0°C ~ 50°C (32°F ~ 122°F)

Storage Temp -20°C ~ 60°C (-4°F ~ 140°F)

Humidity 10% ~ 90% RH (Non-condensing)

Protection Grade IP65 (Front Panel), IP20 (Rear Panel)
Mechanical Installation Flush Mount (Panel Mount)

Dimension (W×H×D) 278×179×50 mm

Weight Approx. 1.2 kg

PLC HMI CPU Integrated Panel (10.1
PLC HMI CPU Integrated Panel (10.1
