Yaskawa SGDH-10AE Sigma II 1kW 200VAC 3-Phase Servo Amplifier (Servopack AC Servo Drive)
Yaskawa SGDH-10AE Sigma II 1kW 200VAC 3-Phase Servo Amplifier (Servopack AC Servo Drive)
Yaskawa SGDH-10AE Sigma II 1kW 200VAC 3-Phase Servo Amplifier (Servopack AC Servo Drive)
Yaskawa SGDH-10AE Sigma II 1kW 200VAC 3-Phase Servo Amplifier (Servopack AC Servo Drive)
Yaskawa SGDH-10AE Sigma II 1kW 200VAC 3-Phase Servo Amplifier (Servopack AC Servo Drive)
Yaskawa SGDH-10AE Sigma II 1kW 200VAC 3-Phase Servo Amplifier (Servopack AC Servo Drive)
Yaskawa SGDH-10AE Sigma II 1kW 200VAC 3-Phase Servo Amplifier (Servopack AC Servo Drive)
Yaskawa SGDH-10AE Sigma II 1kW 200VAC 3-Phase Servo Amplifier (Servopack AC Servo Drive)
Specifications
Brand Name :
Siemens
Model Number :
Yaskawa SGDH-10AE
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Delivery Time :
2-3 days
Product Name :
PLC Industrial Control
Part Number :
Yaskawa SGDH-10AE
Shipment :
DHL
Condition :
New
Lead Time :
2-3 days
Warranty :
1 year
Keywords :
Yaskawa SGDH-10AE
Description
Siemens Yaskawa SGDH-10AE Overview

The Yaskawa SGDH-10AE is a high-performance 1kW AC servo drive belonging to the trusted Sigma II product series, engineered for precise motion control across industrial automation applications. Designed to operate on 3-phase 200-230VAC input, this servo drive delivers a stable 7.6A output current and supports flexible control modes including position, speed, and torque regulation, making it ideal for integrating with servo motors in machinery such as CNC equipment, packaging lines, and material handling systems.

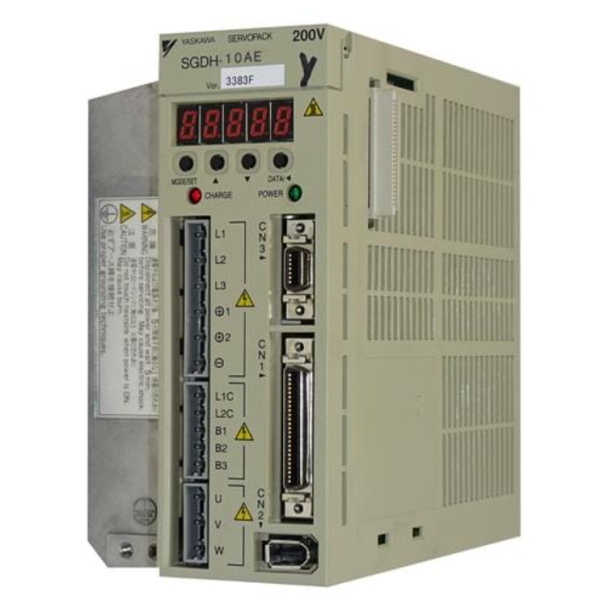

Figure 1 shows the front panel of Yaskawa SGDH-10AE.

Yaskawa SGDH-10AE Sigma II 1kW 200VAC 3-Phase Servo Amplifier (Servopack AC Servo Drive)













Yaskawa SGDH-10AE Sigma II 1kW 200VAC 3-Phase Servo Amplifier (Servopack AC Servo Drive)

















Quick Specs.

Table 1 shows the Quick Specs.

Parameter Value
Model SGDH-10AE
Brand Yaskawa
Series Sigma II
Power Rating 1kW
Input Voltage 3-Phase 200VAC
Cooling Method Natural Air Cooling
Control Modes Position, Speed, Torque




Detailed Specifications
Parameter Details
Model Number SGDH-10AE
Product Type Servopack AC Servo Drive
Manufacturer Yaskawa
Product Series Sigma II
Rated Power 1kW
Input Voltage 3-Phase 200-230VAC, 50/60Hz
Input Current 7.0A (50Hz), 7.6A (60Hz)
Output Voltage 3-Phase 0-230VAC
Output Current 7.6A
Output Frequency 0-300Hz
Control Modes Position control, Speed control, Torque control
Communication Interface RS-485, Optional PROFIBUS-DP, DeviceNet
Protection Features Overcurrent, Overvoltage, Undervoltage, Overheating, Short circuit, Ground fault
Cooling Method Natural Air Cooling
Ambient Temperature 0-55°C (Non-condensing)
Storage Temperature -20-65°C
Relative Humidity 20-80% (Non-condensing)
Vibration Resistance 5.9m/s² (0.6g) Max
Weight 2.72kg (6.00 lbs)
Dimensions (W×H×D) 80mm×180mm×140mm
