Siemens Logo Plc Overview

The Siemens LOGO! is a series of compact, versatile logic modules (often called PLCs for small tasks), designed for simple automation with an integrated display/HMI and easy, function-block programming via LOGO! Soft Comfort software, offering flexibility through expandable I/O and communication options like Ethernet, MQTT, and cloud connectivity for tasks from basic timing to remote monitoring, making it ideal for DIY or small industrial projects.

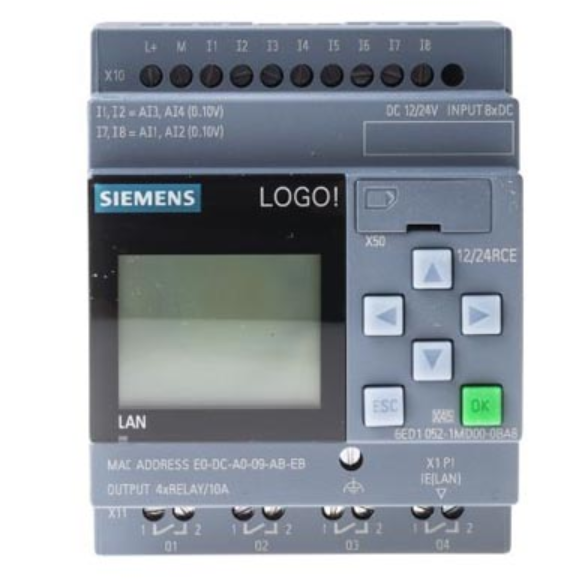

Figure 1 shows the front panel of Logo Plc.

Siemens LOGO! 8.3 PLC (6ED1052-1MD08-0BA1) Basic Unit 12/24RCE, 8DI/4DO, Ethernet, Display
















Siemens LOGO! 8.3 PLC (6ED1052-1MD08-0BA1) Basic Unit 12/24RCE, 8DI/4DO, Ethernet, Display














Quick Specs.

Table 1 shows the Quick Specs.

Parameter Value
Model 6ED1052-1MD08-0BA1
Type 12/24RCE Basic Unit
Power Supply 12/24V DC
Digital I/O 8DI (4AI)/4DO (Relay)
Communication Ethernet, Integrated Web Server
Memory 400 Function Blocks
Display Yes
Dimensions (W×H×D) 90 × 71.5 × 60 mm
Operating Temp -20°C to +55°C




Detailed Specifications
Category Parameter Details
Basic Info Model Number 6ED1052-1MD08-0BA1

Product Name Siemens LOGO! 8.3 12/24RCE PLC Basic Unit

Series LOGO! 8.3
Power Supply Voltage 12/24V DC (10.8V - 28.8V DC)

Power Consumption 10W (max)
Digital I/O Digital Inputs 8 × 12/24V DC, 4 can be used as analog inputs (0-10V)

Digital Outputs 4 × Relay (10A, 250V AC/30V DC)
Analog I/O Analog Inputs 4 (shared with digital inputs), 0-10V
Communication Interfaces 1 × Ethernet (RJ45), supports TCP/IP, Modbus TCP

Integrated Features Web Server, Data Log, Cloud Connection
Memory Program Memory 400 Function Blocks

Data Memory 1000 Flags, 100 Timers, 100 Counters
Physical Dimensions 90 × 71.5 × 60 mm (W×H×D)

Weight 250g

Mounting DIN Rail (35mm)
Environment Operating Temperature -20°C to +55°C (no condensation

Storage Temperature -40°C to +85°C

Protection Class IP20
Programming Software LOGO! Soft Comfort V8.3 or higher

Languages Function Block Diagram (FBD), Ladder Logic (LD)
