SINAMICS S120 Active Line Module with 600VDC 27A 16kW Power, Internal Air Cooling, and DRIVE-CLiQ Connection
SINAMICS S120 Active Line Module with 600VDC 27A 16kW Power, Internal Air Cooling, and DRIVE-CLiQ Connection
SINAMICS S120 Active Line Module with 600VDC 27A 16kW Power, Internal Air Cooling, and DRIVE-CLiQ Connection
SINAMICS S120 Active Line Module with 600VDC 27A 16kW Power, Internal Air Cooling, and DRIVE-CLiQ Connection
SINAMICS S120 Active Line Module with 600VDC 27A 16kW Power, Internal Air Cooling, and DRIVE-CLiQ Connection
SINAMICS S120 Active Line Module with 600VDC 27A 16kW Power, Internal Air Cooling, and DRIVE-CLiQ Connection
Specifications
Brand Name :
Siemens
Model Number :
6SL3130-7TE21-6AA3
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Delivery Time :
2-3 days
Product Name :
PLC Industrial Control
Part Number :
6SL3130-7TE21-6AA3
Shipment :
DHL
Condition :
New
Lead Time :
2-3 days
Warranty :
1 year
Keywords :
6SL3130-7TE21-6AA3
Description
Siemens 6SL3130-7TE21-6AA3 Overview

The Siemens 6SL3130-7TE21-6AA3 is a booksize - format Active Line Module belonging to the SINAMICS S120 series, serving as a spare part (replaced by 6SL3130-7TE21-6AA4). It features active rectification with IGBT tech, enabling it to convert 3 - phase 380-480V AC (50/60Hz) input into stable 600V DC output with a 27A rated current and 16kW power capacity. It supports energy feedback to the grid, has a power factor ≥0.95 and harmonic distortion <5%. Equipped with internal air cooling and a DRIVE - CLiQ cable, it ensures reliable and efficient power supply for industrial drive systems, suitable for applications requiring precise power regulation and energy efficiency.

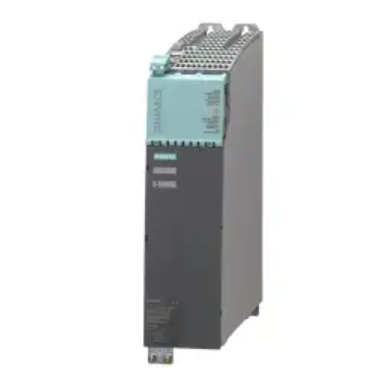

Figure 1 shows the front panel of 6SL3130-7TE21-6AA3.

SINAMICS S120 Active Line Module with 600VDC 27A 16kW Power, Internal Air Cooling, and DRIVE-CLiQ Connection












SINAMICS S120 Active Line Module with 600VDC 27A 16kW Power, Internal Air Cooling, and DRIVE-CLiQ Connection













Quick Specs.

Table 1 shows the Quick Specs.

Parameter Value
Model 6SL3130-7TE21-6AA3
Type SINAMICS S120 Active Line Module
Input 3AC 380-480V, 50/60Hz
Output 600VDC, 27A, 16kW
Cooling Internal air cooling
Connection DRIVE-CLiQ
Substitute 6SL3130-7TE21-6AA4



Detailed Specifications
Parameter Category Details
Basic Information - Model: 6SL3130-7TE21-6AA3

- Product Type: Active Line Module (spare part)

- Series: SINAMICS S120

- Manufacturer: Siemens

- Form Factor: Booksize

- Substitute: 6SL3130-7TE21-6AA4
Electrical Input - Voltage: 3 - phase 380-480V AC

- Frequency: 50/60Hz

- Grounding System: Compatible with TN/TT/IT
Electrical Output - Voltage: 600V DC

- Rated Current: 27A

- Rated Power: 16kW
Performance - Rectification Technology: Active rectification (IGBT)

- Power Factor: ≥0.95

- Harmonic Distortion: <5%

- Energy Feedback: Supported (energy can be fed back to the grid)

- System Efficiency: ≥97%
Cooling & Connection - Cooling Method: Internal air cooling

- Communication/Connection: DRIVE - CLiQ cable (included)

- Protection Level: IP20

- Protection Functions: Overvoltage, undervoltage, overcurrent, short - circuit, overheating protection
